Configure settings for Trellix DLP Endpoint.
To copy evidence using WebDAV, make sure that you enable WebDAV capability on the shared storage server
Make sure if the shared storage server of other endpoints are pointing to SMB (UNC) path in the Policy Catalog
For details about product features, usage, and best practices, click ? or Help.
In ePO - On-prem, select Menu → Policy → Policy Catalog.
On ePO - On-prem 5.10, select Data Loss Prevention <version>.
On ePO - On-prem 5.9 and earlier, from the Product drop-down list, select Data Loss Prevention <version>.
On ePO - On-prem 5.10, select Windows Client Configuration or Mac OS X Client Configuration.
(Optional) On ePO - On-prem 5.9 and earlier, from the Category drop-down list, select Windows Client Configuration or Mac OS X Client Configuration.
Select a configuration to edit or click Duplicate for the Trellix Default configuration.

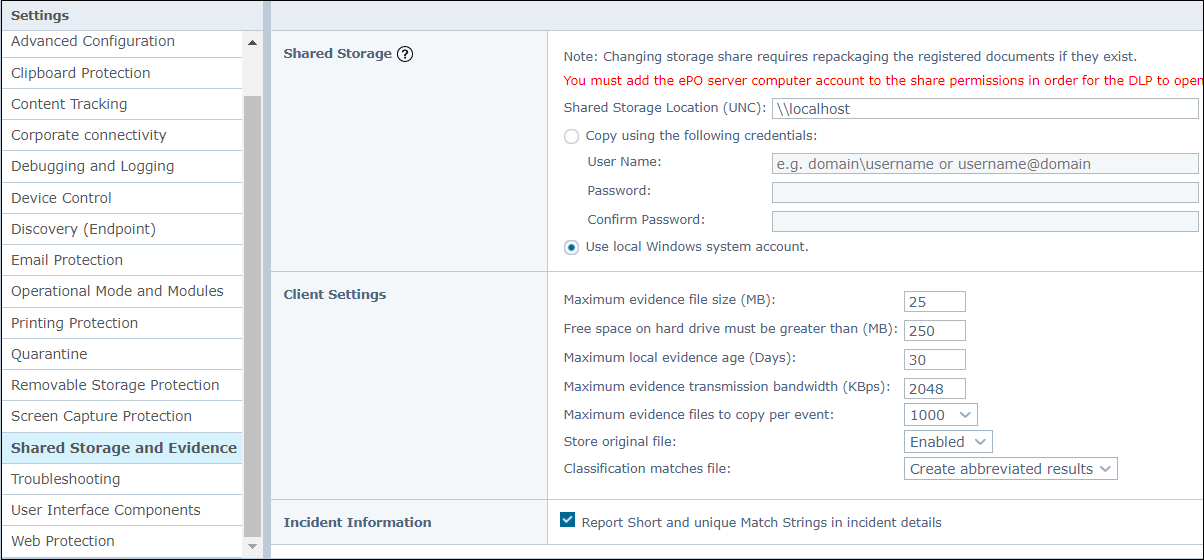

On the Shared Storage and Evidence page, enter the storage share and credentials. You can configure your evidence storage using SMB or WebDAV.
Note
When a WebDAV server is set up using Microsoft Internet Information Services (IIS), the maximum allowed content length is 28 MB by default. This value needs to be increased to allow upload of files greater than 28 MB. For more information, see Change the file size limit on evidence uploads to WebDAV in the Trellix DLP Installation Guide.
SMB (UNC): Provide the share path in the UNC format. For example,
\\[server]\[sharename]\WebDAV (URL): Provide the shared location URL in http or https format. For example,
http(s)://[server]/[sharename]To enable HTTPS support for WebDAV, the relevant certificate authority (CA) certificates must be installed on the endpoints for successful SSL trust verification.
Note
WebDAV (URL) is applicable only for Windows clients.
Specify a user name and password or select the local Windows system account option.
Update the settings on the other pages as needed.
Click Apply Policy.
