Downloading the MIB

You can download the MIB from the Web UI or from the command prompt.

Prerequisites

Analyst, Operator, or Admin access

Downloading the MIB using the Web UI

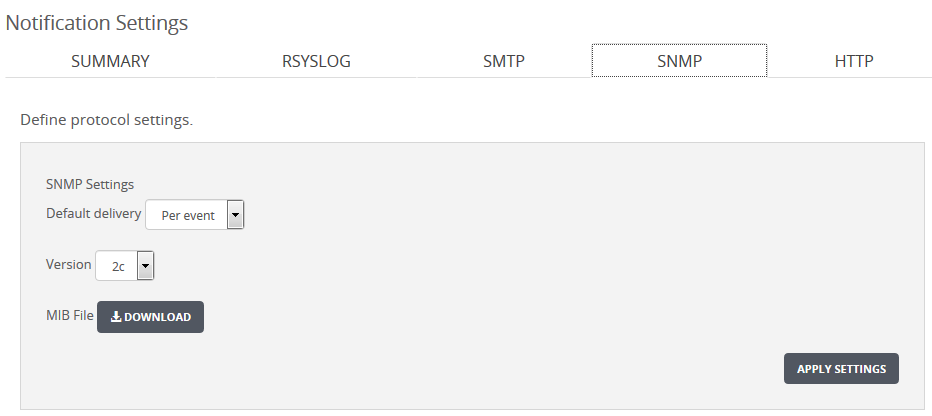

Use the Notification Settings page to download the MIB.

To download the MIB:

Click the Settings tab.
Click Notifications on the sidebar.
Click the SNMP tab.
In the Define protocol settings section, click Download.

Downloading the MIB using the command prompt

This section describes how to download the FE-FIREEYE-MIB to SNMP managers that run on Microsoft Windows, Linux, and Apple devices. The MIB file is retrieved using a program that connects using port 22, which is normally used for protocols such as SSH, SCP, and PSCP. Because file-level access is denied by policy, the direct path to the MIB file needs to be specified.

To download the MIB to Windows devices:

Download the pscp.exe tool (available from PuTTY download page).
Navigate to a command prompt window.
Change to the directory in which you downloaded the pscp.exe tool:
```
cd Downloads
```

Copy the MIB file from the appliance:

pscp.exe -r -scp admin@<appliance><applianceIPAddress>:/usr/share/snmp/mibs \Temp\mibs\

When prompted for the password, enter admin.
The files are copied to the \Temp\mibs directory on the Windows device.
Change to the mibs directory:
```
cd C:\Temp\mib
```
Load the MIB into an SNMP browser or tool, or open the MIB file:
```
vi FE-FIREEYE-MIB.txt
```

To download the MIB to Linux devices:

Copy the MIB file from the appliance using the OpenSSH client:

scp -r admin@<appliance><applianceIPAddress>:/usr/share/snmp/mibs /usr/<userDirectoryName>

When prompted for the password, type admin.
The files are copied to the mibs directory that resides in the /usr/<userDirectoryName> directory.
Change to the mibs directory:
```
cd mibs
```
Load the MIB into an SNMP browser or tool, or open the MIB file:
```
vi FE-FIREEYE-MIB.txt
```

To download the MIB to Apple devices:

Navigate to the terminal emulator.

Copy the MIB files from the appliance:

scp -r admin@<applianceIPAddress>:/usr/share/snmp/mibs ~/

When prompted for the password, type admin.
The files are copied to the mibs directory that resides in the user directory.
Load the MIB into an SNMP browser or tool, or open the MIB file:
```
vi FE-FIREEYE-MIB.txt
```
