The control panel is on the front of the chassis.

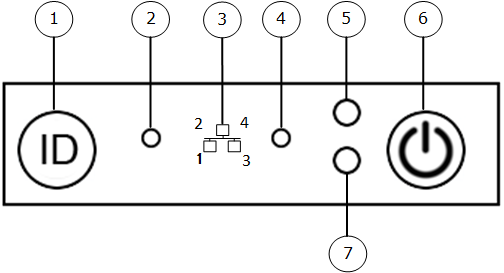

Trellix DLP 7700 front control panel
System ID button NMI button (recessed) NIC activity LED System cold reset button Hard drive activity LED Power button System status LED
|
Trellix DLP 7700 system status indicator light states
Color | State | Status |
|---|
Green | Solid | System booted and ready |
Blink | System degraded: Non-critical threshold crossed Fan redundancy lost, sufficient system cooling maintained Power supply redundancy lost Unable to use all of the installed memory — one or more DIMMS failed or disabled, but functional memory remains available Battery failure Power unit sensor offset error asserted HDD HSC offline or degraded BMC executing uBoot BMC Watchdog has reset the BMC
|
Amber | Solid | Fatal alarm — System has failed or shut down: CPU CATERR signal asserted CPU 1 missing CPU Thermal Trip CPU ERR2 signal asserted MSID mismatch detected DIMM failure when only one DIMM is present Runtime memory uncorrectable error in non-redundant mode DIMM Thermal Trip or equivalent SSB Thermal Trip or equivalent BMC/Video memory test failed Both uBoot BMC FW images are bad 240 VA fault Power fault Fatal error in processor initialization Processor families not identical Processor models not identical Processor core/thread counts not identical Processor cache sizes not identical Unable to synchronize processor frequency Unable to synchronize QPI link frequency
|
Blink | Non-fatal alarm — System is likely to fail: Critical threshold crossed Voltage regulator device (VRD) hot asserted Minimum number of fans to cool the system not present or failed Hard drive fault Insufficient power supplies present Correctable memory error threshold crossed for a failing DDR3 DIMM when the system operates in a non-redundant mode
|
Off | Off | System turned off |
