Generating an Alert Details report using the Web UI

Prev Next

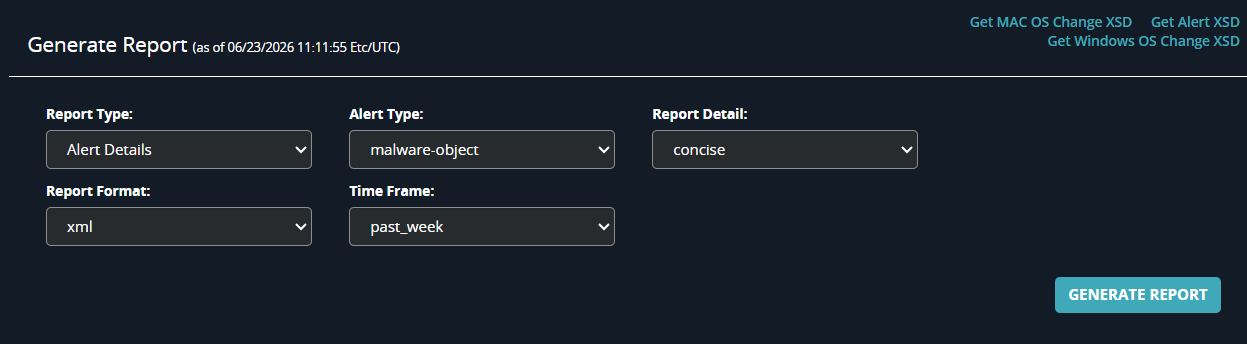

Use the Generate Report page to generate a consolidated Alert Details report.

To generate an Alert Details report:
  1. In the Web UI, choose Reports > Static Reports.

  2. In the Report Type drop-down menu, select Alert Details.

  3. In the Alert Type drop-down menu, select an alert type:

    • malware-object

  4. In the Report Detail drop-down menu, select the level of detail:

    • concise—Basic information, such as alert type, ID, src_IP, malware name, hostname, and alert URL.

    • normal—Concise information plus OS changes, callback details, and malware details, if available.

    • extended—Normal information plus data-theft information (if any) and static analysis details. This format provides all details about files and objects modified during analysis.

  5. In the Report Format drop-down menu, select the output format for the report:

    • xml—Generate the report in XML format.

    • json—Generate the report in JSON format.

    • csv—Generate the report in CSV format.

    • text—Generate the report in text format.

  6. In the Time Frame drop-down menu, select the time period for this report:

    • past day—Report covers analysis generated during the past 24 hours.

    • past week—Report covers analysis generated during the past 7 days.

    • past month—Report covers analysis generated during the past 1 month.

    • past 3 months—Report covers analysis generated during the past 3 months.

    • between—Report covers analysis generated between the specified From date and time and the specified To date and time.

  7. Click Generate Report. The generated report is added to the top of the generated report list.

    When the report generation is complete, the generated report appears in the Generated Reports table.

  8. (Optional) Export the XSD files. These files describe the structure of the Alert Details report.

    • To export the Windows OS Change XSD, click the Get Windows OS Change XSD link at the top right side of the page.

    • To export the MAC OS Change XSD, click the Get MAC OS Change XSD link at the top right side of the page.

    • To export the Alert XSD, click the Get Alert XSD link at the top right side of the page.

To delete a generated Alert Details report:
  1. In the Web UI, choose Reports > Reports .

  2. In the Generated Reports table, locate the generated Alert Details report that you want to delete. To delete all reports, click the checkbox at the top of the list. The Delete button changes to Delete n Reports to reflect the number of reports (n) you chose to delete.

  3. Click the Delete n Reports button. A prompt for confirmation displays.

  4. Select Delete to delete the report.
