Identify the Trellix DLP Capture Storage Array back panel (DLP-CSA-A)

Familiarize yourself with the hardware components that are used on the back panel before setting up the Trellix DLP Capture Storage Array.

Note
Trellix DLP Capture Storage Array (DLP-CSA-A) is supported with Trellix DLP 8800 appliance models.

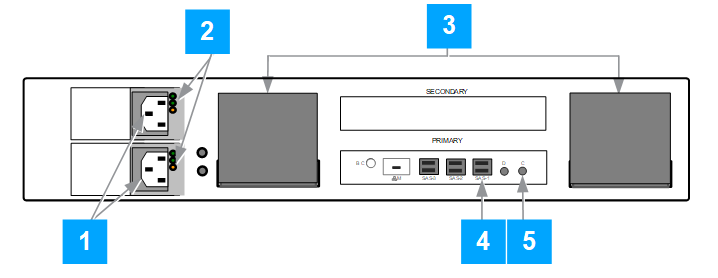

Back panel of the Trellix DLP Capture Storage Array (DLP-CSA-A)

Callout	Description
1	Hot-swap dual redundant power supply.
2	Power supply indicator lights.
3	Hot-swap fans covered by exhaust covers. Note To ensure proper air flow, don't prevent the fan exhaust covers from swinging open.
4	Mini-SAS port.
5	Console serial port — Connect the console serial port to the DLP Network appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter.
