Familiarize yourself with the hardware components that are used on the back panel before setting up the Trellix DLP Capture Storage Array (DLP-CSA-A).
Trellix DLP Capture Storage Array (DLP-CSA-A) is supported with Trellix DLP 8800, Trellix DLP 7700, and Trellix DLP 6600 appliance models.
.png "GUID-EDDE5963-E496-4485-91DD-50F094E961DA-low.png")

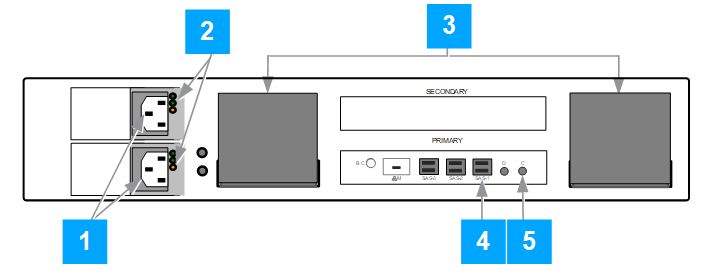

Callout | Description |
|---|---|
1 | Hot-swap dual redundant power supply. |
2 | Power supply indicator lights. |
3 | Hot-swap fans covered by exhaust covers.
|
4 | Mini-SAS port. |
5 | Console serial port — Connect the console serial port to the Trellix DLP 8800, Trellix DLP 7700, or Trellix DLP 6600 appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter. |
For factors that must be considered while setting up the Trellix DLP Capture Storage Array or reinstalling the appliance software after any Trellix DLP Capture Storage Array setup change, see Considerations for setting up the Capture Storage Array.
