Familiarize yourself with the hardware components that are used on the back panel before setting up the Trellix DLP Capture Storage Array.

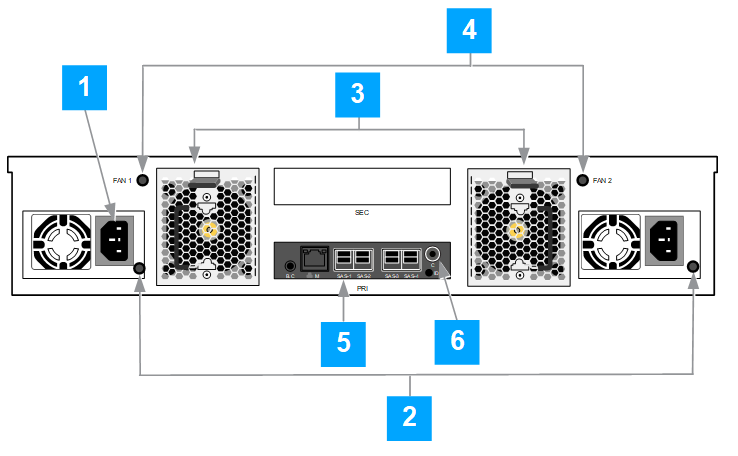

Back panel of the Trellix DLP Capture Storage Array (DLP-CSA-B)
.png "GUID-0E5C3621-E48F-424D-B959-0243939C3564-low.png")
Callout | Description |
|---|---|
1 | Hot-swap dual redundant power supply. |
2 | Power supply indicator light. |
3 | Hot-swap fans. |
4 | Fan indicator light. |
5 | Mini-SAS port. |
6 | Console serial port — Connect the console serial port to the DLP Network appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter. |
