Trellix DLP 7700 back panel and port assignments

Familiarize yourself with the hardware components on the back panel and network port assignments before setting up the Trellix DLP 7700 appliance.

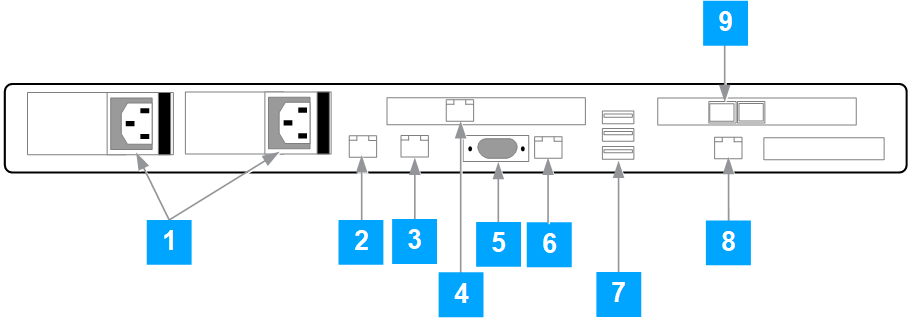

Trellix DLP 7700 back panel

Port assignments

Usage	Trellix DLP 7700
Common ports
Serial — Use these connection settings: Baud rate — 115200 Data bits — 8 Stop bits — 1 Parity — None Flow control — None	callout 6
VGA	callout 5
USB — Use one of the USB ports to connect to the Trellix DLP Capture Storage Array console port using the provided USB-to-serial port adapter.	callout 7
Remote Management Module (RMM)	callout 8
Power supplies	callout 1
RAID port (available only when the RAID controller is installed) — Connects the RAID controller to Trellix DLP Capture Storage Array through the provided mini-SAS cable.	callout 9
Network port assignments
OOB port — Out-of-band management traffic such as ePO - On-prem or ePO - SaaS management.	callout 4
LAN 1 port — (10 GBase-T) Data traffic for scanning (Optional) Management traffic	callout 2
LAN 2 port — Not applicable to Trellix DLP Network Prevent appliance. It is used as capture port 1 in Trellix DLP Network Monitor appliance.	callout 3
