Follow these steps to add a logo to a custom report or to delete a logo from a custom report for managed appliances using the Central Management System appliance Web UI.
You can associate only one logo with a PDF-formatted custom report. When you upload a logo, the new logo overwrites the existing logo. The maximum size of the logo you upload is 128 x 128 pixels.
Note
You can add or delete a logo for a custom report only using the Web UI.
Prerequisites
Access to the Web UI of the Central Management System appliance as Admin, Analyst, or Monitor
To add a logo to a custom report:
In the Web UI, choose Reports > Custom Reports.
In the Logo field, click Choose File.
Select the logo file you want to add.
The image is uploaded to the Central Management System appliance and it appears in the Custom Reports page.

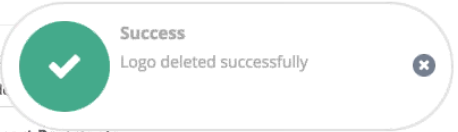

To delete a logo from a custom report:
In the Web UI, choose Reports > Custom Reports.

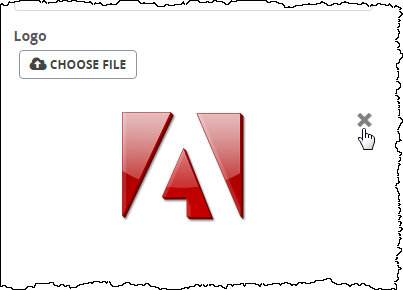

In the Logo field, click the X icon next to the logo.
