Use the Network Settings page to configure basic network settings for the File Protect appliance. For a description of the information and settings on this page, see Basic network configuration .
Viewing management interface detail settings
Use the Interface Details section to view the configuration of the management interface. This is a read-only section. The management interface is configured during the initial configuration, and can be modified later using the CLI. For details, see Initial configuration or the CLI Command Reference.

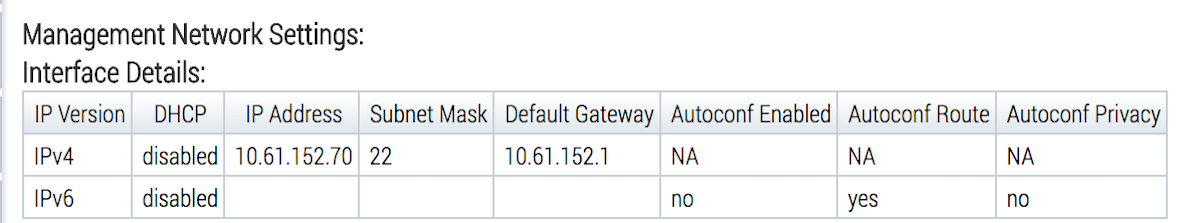

.png "All_NtwkSettingsIface_scap.png")
Click the Settings tab.
Select Network on the sidebar.
Locate the Interface Details section at the top of the page.
Configuring DNS servers
Use the Configure DNS Server Addresses section to configure DNS server addresses.

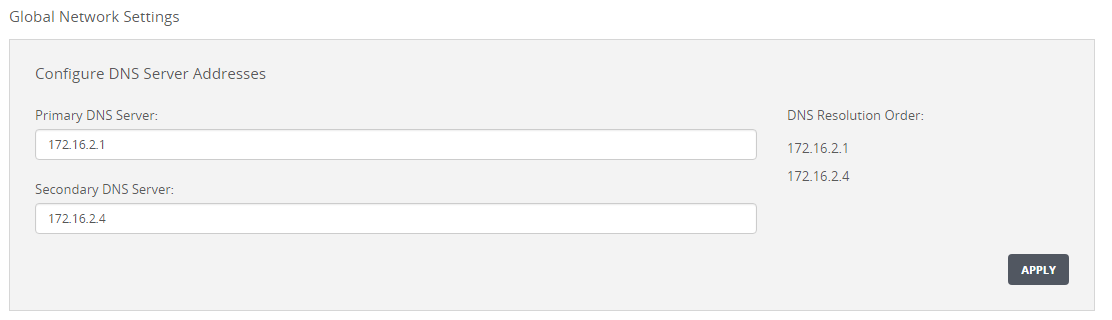

.png "All_NtwkSettingsDNS_scap.PNG")
Click the Settings tab.
Select Network on the sidebar.
In the Configure DNS Server Addresses section, enter the IP address of the primary DNS server.
(Optional) Enter the IP address of a secondary DNS server.
Click Apply.
The order in which the DNS servers are traversed is displayed in the DNS Resolution order list. An error message is displayed if no server is active.
Configuring domain names
Use the Configure Domain Names section to add or remove domain names.

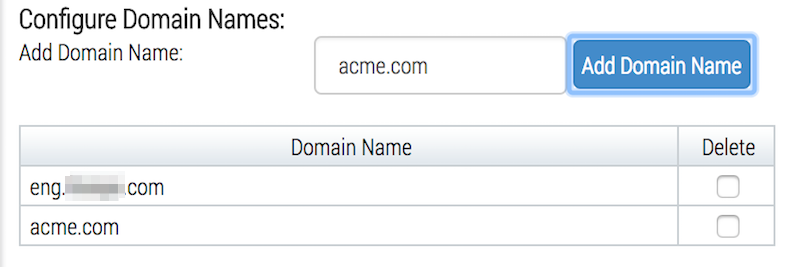

.png "All_NtwkSettingsDomainNames_scap.PNG")
Click the Settings tab.
Select Network on the sidebar.
In the Configure Domain Names section, click Add Domain Name.
Enter a domain name, click Add.
.png "All_NtwkSettingsDomainNamesAdd_scap.png")
Repeat the previous steps to configure additional domain names.
The order in which the domain names are traversed is displayed in the Domain Names Resolution order list.
Locate the domain name you want to delete.
Click the Delete (trash can) icon in the Delete column for each domain name you want to remove.
Click YES.
The domain name is deleted from the configuration.
Close the message.
Enabling IPv6
Use the Configure IPv6 section to enable or disable IPv6 routing. You can also use this section to enable or disable IPv6 on the SMTP interface.
Click the Settings tab.
Select Network on the sidebar.
Enable IPv6:
To enable IPv6 routing on the system, select the Global IPv6 checkbox, and then click Apply.
To enable IPv6 on the management interface, select the Management Interface IPv6 checkbox, and then click Apply.
Click the Settings tab.
Select Network on the sidebar.
Disable IPv6:
To disable IPv6 routing on the system, clear the Global IPv6 checkbox, and then click Apply.
To disable IPv6 on the management interface, clear the Management Interface IPv6 checkbox, and then click Apply.
Configuring a WINS server to resolve link targets
Use the Configure WINS Server section to resolve link targets using NetBIOS.
.png "FX_WINSserver_scap.PNG")
Click the Settings tab.
Select Network on the sidebar.
Enter the IP address of the server in the WINS Server box.
Click Apply.
