Process trace

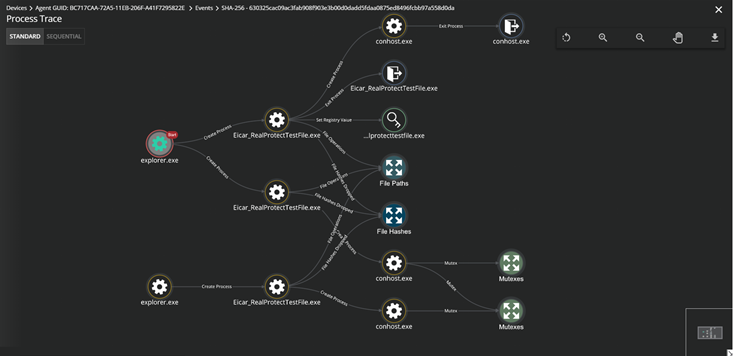

Process trace displays details for processes executed on your endpoints in graph format.

Process trace can be accessed from the following locations:

Campaign > View Details > Your Environment > Your ENS Devices > All Impacted Devices
Devices > Events
Search results -> Events

If a trace is available for an event, a graph icon is enabled. A graph icon does not appear where no trace data is available.

Graph layout and toolbars

The graph can be viewed in two different layout formats:

Standard (default layout) - nodes are connected in the order in which they were created.
Sequential - nodes are connected in the order in which the process was executed. Sequential layout displays a time bar to filter the graph by a selected time range.

Users can perform the following actions using the toolbar:

Zoom in, zoom out, reset, and use full screen mode for improved visibility.
Download the graph in high-resolution PNG format.

Nodes

Node details and pivots are shown when clicked.

Nodes are grouped and sub-grouped based on categories and subcategories. For processes, nodes are grouped where process activity occurs more than once. Nodes are further sub-grouped based on additional activities including read file, write file, and more.

More prominent nodes with multiple incoming and outgoing connections are excluded from the grouping.

Nodes	Group/Subgroup nodes	Edges
ePO	Files Created	Artifacts dropped
BPS	File Paths	Has device
Device Name	IPs/Domains	Observed file
Agent Guild - <agent GUID>	Registries	Observed URL
Campaign Name	File Hashes	Dropped by
File path	Hidden Files Created	Drops file
Mutex	AMSI Buffers	Downloaded from URL
File Hash MD5	Registries Set	Downloads file
Process	Directories Created	Is a threat
	Registries Created	Has domain
	Files Read	Domain of
	Registries Deleted	Is associated with
	Files Written	Downloaded from domain
	Files Deleted	Mutex
	Files Modified	Is associated with campaign
	Files Moved	Create Registry Key
	Files Copied	Set Registry Value
	Directories Deleted	Delete Registry Key
	TCP Connections	Create Process
	TCP Connections Accepted	Exit Process
	UDP Connections	Inject DLL
	UDP Connections Received	Loads DLL
	DLLs Injected	Create File
	DLLs Loaded	Write File
	Mutexes	Delete File
	MD5s Dropped	Read File
	IPs Connected	Modify File
	Domains Connected	Move File
	Downloaded URL	Copy File
		Create Directory
		Delete Directory
		Create Hidden File
		Connect TCP
		Accept TCP
		Send UDP
		Receive UDP
		Create Registry Key
		Set Registry Value
		Delete Registry Key
		Downloads File
		Create Pre-Process
			AMSI Buffer Scan
			File-MD5
			Manages
			Uses Technique
			Involves
			Mitigation
			Has Sighting
			Observed in
			Reported in
			Belongs to
			Associated with
			Uses Tool
		Uses Malware
		Uses
		File Hashes Dropped
		File Operations
		Network Operations
		Registry Operations
		Operations
		Create Remote Thread
		File Hash Dropped
		Orphan Thread

Node	Details Shown
Process/Exit Process	Path Activity Timestamp Command line arguments MD5 MD5 details
File Path	Path Activity Timestamp Command line arguments MD5 MD5 details
File Hash MD5	Hash value Activity SHA256 SHA1 MD5 File Size First Seen Classification Name Classification Type Category Insights Type Comments Prevalent in Country Prevalent in Sector Lethality Determinism Pivot to IOC Details page by clicking View this IOC button Pivot toTrellix EDR button
Mutex	Mutex Activity Timestamp
Campaign	Name Description Associated IoCs Severity Exposed devices Devices with Insufficient Coverage Last Detected Labels Pivot to Campaign Details page by clicking the View this Campaign button
Device	System name IP address Users Tags Operating System Go to System Tree button
IP/Domain	IP/Domain Category Insights Type Comments Lethality Determinism Prevalent in Sectors Prevalent in Countries Pivot to IOC button
Groups/Subgroups	Double clicking on a group or subgroup expands and displays all associated nodes
ePO, NSP, NSM, BPS	No details
MITRE related nodes	MITRE Category Name Description
