Follow these steps to review the malicious objects found by the Network Security appliance and correlated to events on the Email Security — Server appliance.
One or more Network Security appliances managed by the Central Management System appliance.
One or more Email Security — Server appliances managed by the Central Management System appliance.
Note
By default, alert correlation is enabled on any Central Management System appliance that manages one or more Network Security appliances and one or more Email Security — Server appliances.
On the Alerts tab, click NX > Alerts.
If there are many alerts, use the Filters panel on the left edge of the page to filter by the Correlated EX Alert badge.

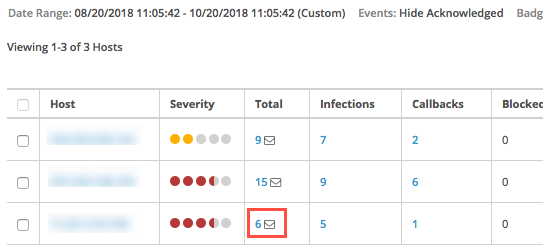

On the Hosts tab, click the number link beside the email correlation icon (
.png "CM_CorrelationEmail_icon.png")
) in the Total column. The list of correlated Email Security — Server alerts is displayed in the Alerts tab..png "CM_CorrelationEmail_scap.png")

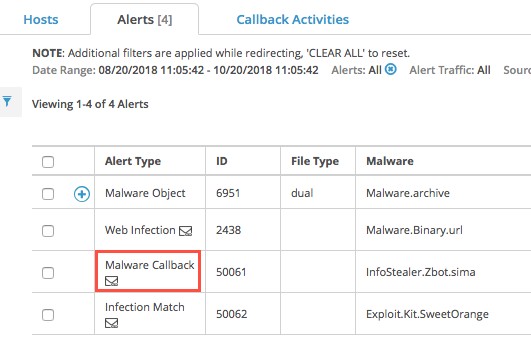

In the correlated alerts, click an email correlation icon with the link superimposed on it (
.png "CM_CorrelationEmail_link_icon.png")
)..png "CM_CorrelationEmailAlerts_scap.png")

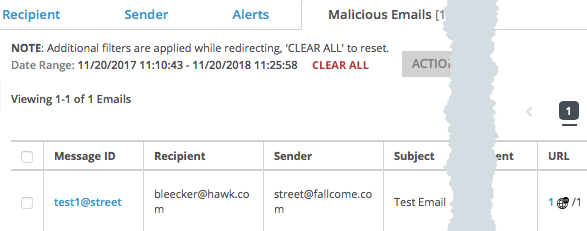

The correlated Email Security — Server alert is displayed on the eAlerts > Malicious Emails tab.
.png "CM_CorrelationMaliciousEmail_scap.png")
