Sending a management request using the Web UI

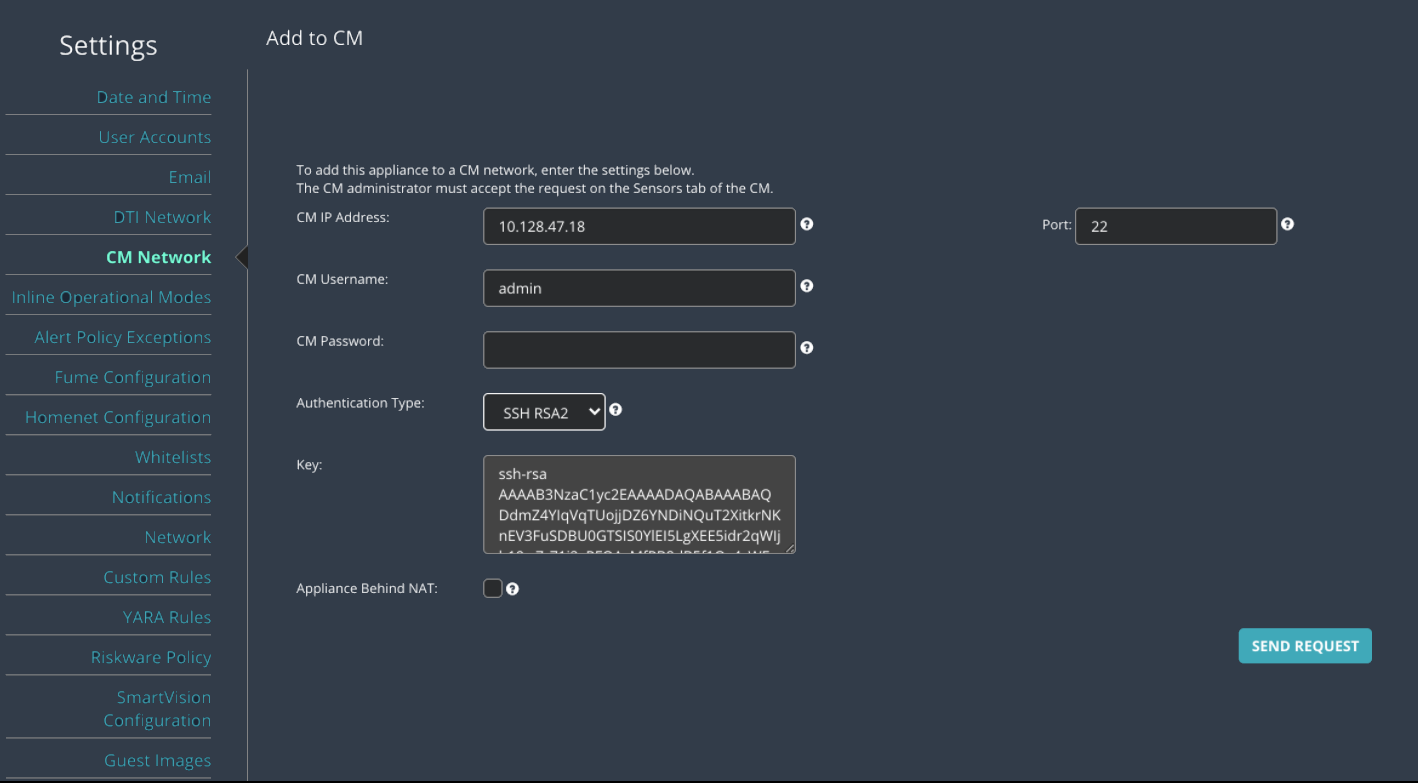

Use the Add to CM page in the Malware Analysis Web UI to initiate a request to be added to the Central Management System appliance.

To initiate a request to be managed:

Click the Settings tab.
Click CM Network on the sidebar.
In the CM IP Address and Port boxes, enter the Central Management System IP address and the remote management port, which is 22 by default.
In the Authentication Type drop down list, select SSH RSA1 or SSH RSA2. The key is generated in the Key box.
In the CM Username and CM Password boxes, enter the credentials of the Central Management System user the appliance should use to log in to the Central Management System appliance to announce itself.
If the appliance is behind a NAT gateway, select the Appliance Behind NAT checkbox.
Note
See Configuring Network Address Translation (NAT) for detailed NAT deployment information.
Click Send Request.
A message informs you that the request succeeded or failed, or that the appliance is already being managed by the Central Management System appliance. If the request succeeded, a Central Management System administrator can accept or reject the request.
