In the following two deployment scenarios, the sensors are managed by one Central Management appliance, and the cluster is managed by another Central Management appliance.

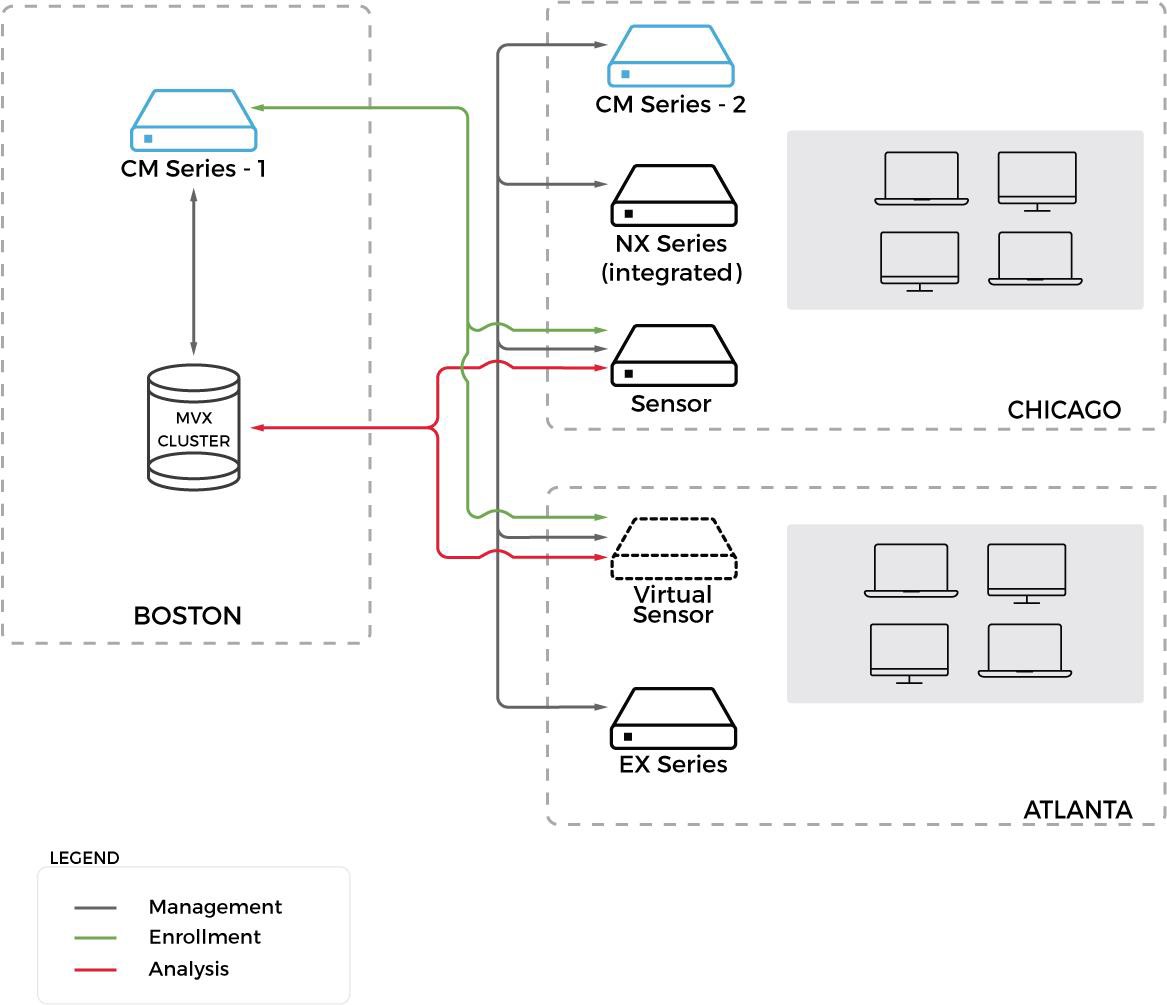

Sensor enrolls directly with cluster
The enrollment service address type is DTI and its address is the IP address of the Central Management appliance that manages the IVX cluster. You must prevent the Central Management appliance that manages the sensor from overriding the configuration. See Enrolling a managed sensor directly for configuration information.

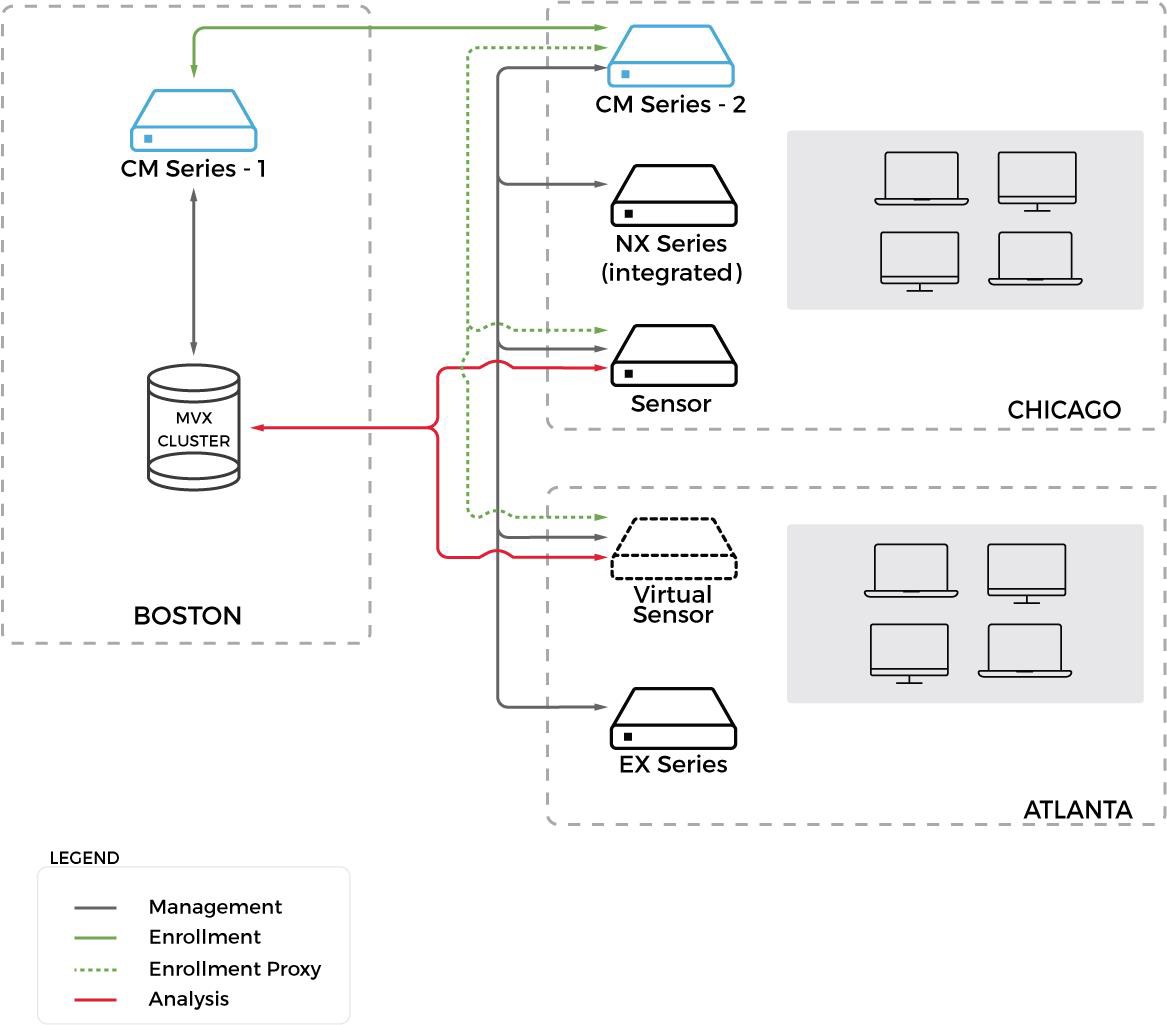

Sensor uses proxy enrollment
On the sensor, the enrollment service type is CMS and its address is the IP address of the Central Management appliance that manages the sensor. On the Central Management appliance that manages the sensor, the enrollment service type is DTI and its address is the IP address of the Central Management appliance that manages the IVX cluster. See Enrolling a managed sensor through a proxy for configuration information.
