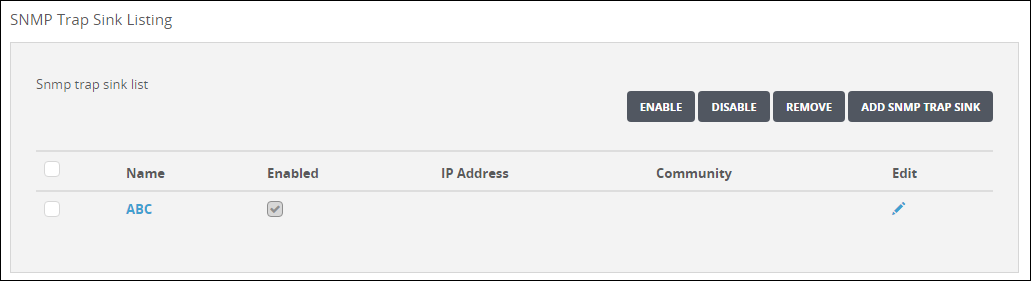

Use the SNMP trap sink listing section on the SNMP tab of the Notification settings page to add and configure SNMP servers.
.png "All_SNMPTrapSinkSettings_scap.PNG")
Click Settings.
Click Notifications on the side bar.
Click the SNMP tab.
Click Add SNMP trap sink. The Add new SNMP trap sink dialog box opens.
Enter the name of the SNMP server to receive the notifications in the Trap sink name box and click Add New SNMP trap sink.
Enter the IP address of the SNMP server in the IP Address box.
Enter the SNMP community string in the Community box.
Select the Enabled checkbox to enable the server to receive SNMP notifications.
Select the delivery frequency in the Delivery drop-down list box.
Default—Use the delivery frequency specified in the Default delivery box in the SNMP Settings area.
Per Event (recommended)—Send a notification each time an event of this type occurs.
Select the event type or All events in the Notification drop-down list box to send SNMP notifications when the specified events are detected.
Select the SNMP version (1 or 2c) to use for the notification in the Version drop-down list box. Select Default to use the version specified in the Define protocol settings section.
Click Add New SNMP Trap Sink.
Click Settings.
Click Notifications on the side bar.
Click the SNMP tab.
Click the server in the Name column.
Click the icon in the Edit column.
Update settings as needed.
Click Update SNMP trap sink.
