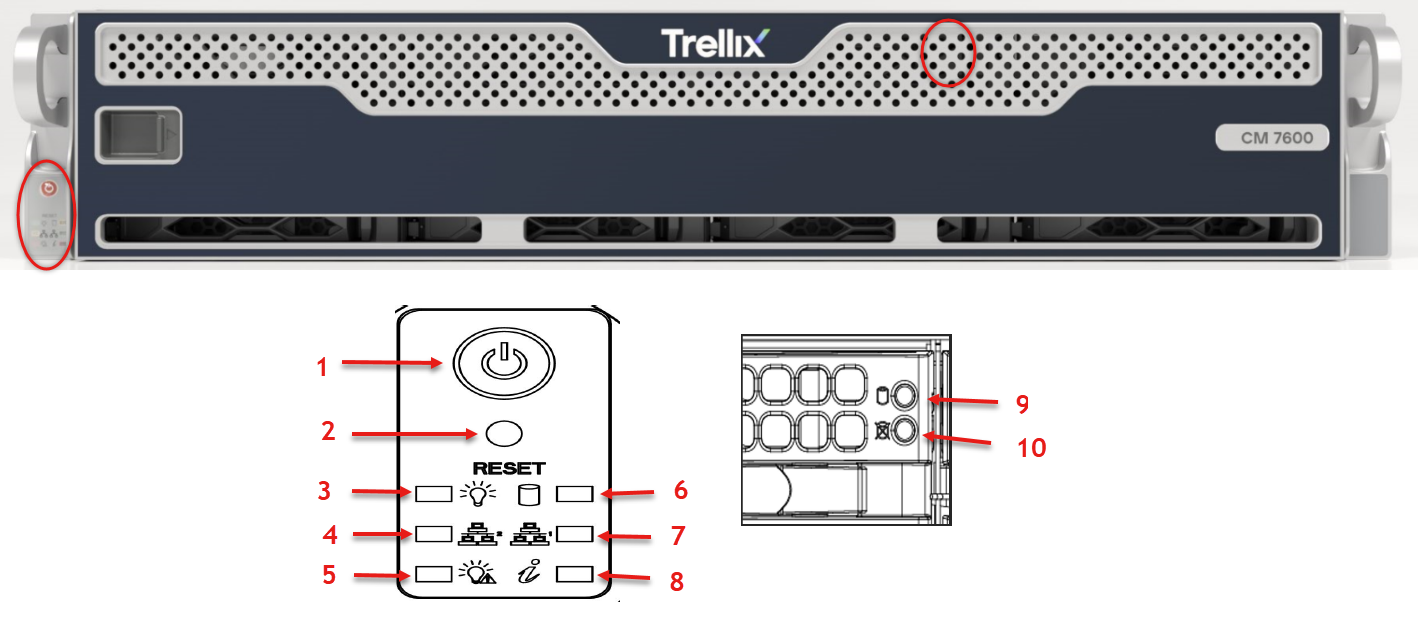

The Front View

ID	Component	Description	Condition
1	Power button	The main power switch applies or removes primary power from the power supply to the server but maintains standby power. Unplug the appliance before servicing.
2	Reset Button	Reboots the system
3	Power LED	Steady on	Power on
		Blinking at 4 Hz	Checking BIOS/BMC integrity
		Blinking at 4Hz and "i" LED is blue	BIOS firmware updating
		Two blinks at 4 Hz, one pause 2 Hz and "i" LED blue	BMC firmware updating
		Blinking at 1 Hz and "i" LED red	Fault detected
4	LAN 1 LED	Indicates network activity on a LAN when flashing.
5	Power Failure LED	Indicates a power supply module has failed.
6	HDD Activity LED	Indicates activity on the hard drive when flashing.
7	LAN 2 LED	Indicates network activity on a LAN when flashing.
8	Information LED	Alerts operator to several states:
		Red, solid	An overheat condition has occurred
		Red, blinking at 1 Hz	Fan failure, check for an inoperative fan
		Red, blinking at 0.25 Hz	Power failure, check for a non-operational power supply
		Red, solid, with Power LED blinking green	Fault detected
		Blue and red, blinking at 10 Hz	Recovery mode
		Blue, solid	UID has been activated locally to locate the server in a rack environment
		Blue, blinking at 1 Hz	UID has been activated using the BMC to locate the server in a rack environment
		Blue, blinking at 2 Hz	BMC is resetting
		Blue, blinking at 4 Hz	BMC is setting factory defaults
		Blue, blinking at 10 Hz with Power LED blinking green	BMC/BIOS firmware is updating
9 and 10	Drive Device LED	Each drive carrier displays two status LEDs on the front of the carrier.

Drive Carrier LED Indicators

The chassis includes externally accessible SAS/SATA drives. Each drive carrier displays two status LEDs on the front of the carrier.

The chassis includes externally accessible SAS/SATA drives.

Each drive carrier has two LED indicators: an activity indicator and a status indicator.

LED Type	Color	Blinking Pattern	Meaning of Blinking Pattern
Activity LED	Blue	Solid On	Idle SAS/NVMe drive installed.
		Blinking	I/O activity.
		Off	Idle SATA drive installed.
Status LED	Red	Solid On	Failure of drive with RSTe support.
		Blinking at 1 Hz	Rebuild drive with RSTe support.
		On for five seconds, then off	Power on for drive with RSTe support.
		Blinking at 4 Hz	Identify drive with RSTe support.
		Blinking with two blinks and one stop at 1 Hz	Hot spare for drive with RSTe support
	Green	Solid Green LED	Safe to remove NVMe device.
	Amber	Blinking at 1 Hz	Do not remove NVMe device.

Green: When illuminated, this LED indicates drive activity. It blinks on and off when that particular drive is being accessed This function is controlled by the backplane.
Red: When illuminated, this LED indicates a drive failure. You should be notified by your system management software.

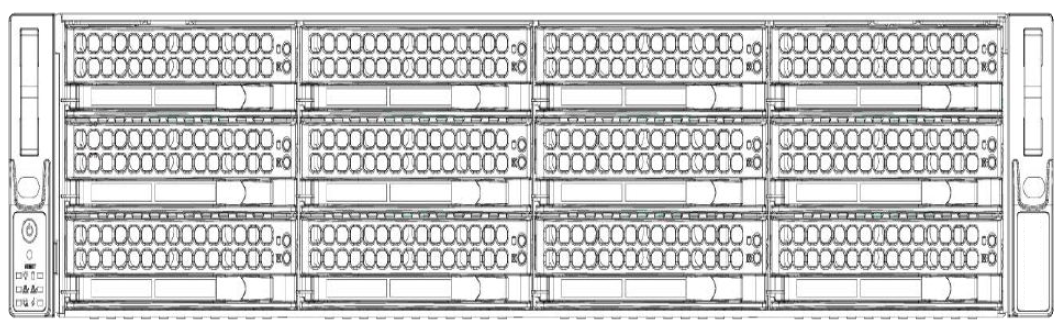

Chassis

Disk Drive Carrier: Each carrier can house a hot-swappable disk drive. A drive slot map displays the disk slot numbers on top of the appliance.
Handle Release: Press this tab to release the handle. Use the handle to pull the disk drive carrier from the chassis.
