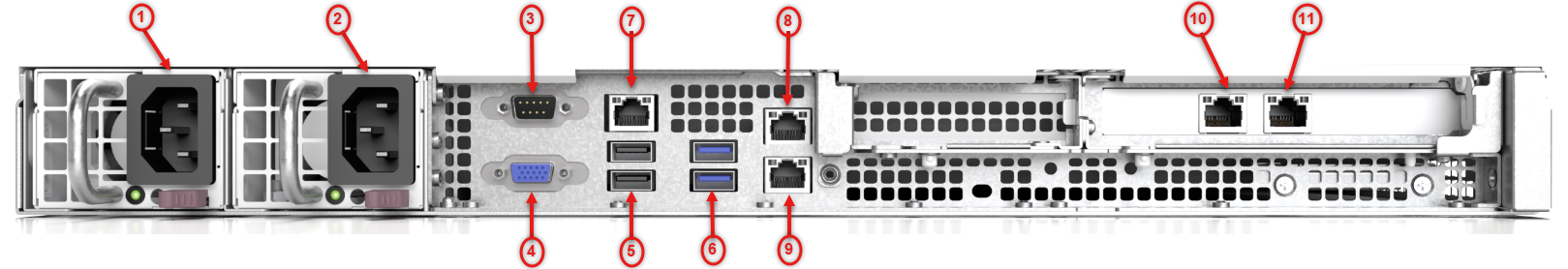

.png "CM4600_RearView.png")
1) Power Supply 1 | 7) IPMI Port |
2) Power Supply 2 | 8) ether2 (RJ45) HA link/HA backup link/Management Port |
3) Serial Console Port | 9) ether1 (RJ45) Management 1 Port |
4) VGA Connector | 10) ether3 (RJ45)HA link/HA backup link/Management Port |
5) USB 2.0 Port | 11) ether4 (RJ45) HA link/HA backup link/Management Port |
6) USB 3.2 Port |
Power
Power: Connect your power source to this port to provide power to the appliance. The appliance comes with one redundant power supply unit for use if the primary unit fails.
I/O Ports
USB 2.0: These ports are USB 2.0 compliant.
Serial Console: Connect to this port to manage the appliance from your terminal.
Video: Connect a monitor to this port to view the appliance's command-line interface.
USB 3.2: These ports are USB 3.2 compliant.
Management Ports
ether1 (RJ45): Connect your LAN to this port to enable remote access to the CLI and Web UI. The RJ45 connector is a 10/100/1000BASE-T port.
IPMI: Connect for access to out-of-band management functions, including power control, console redirection, and appliance health status. The connector is a 10/100/1000BASE-T port.
Important
The IPMI interface port is only enabled in CM Release 8.2.0 or later and IPMI firmware version 2.07 or earlier.
HA link/HA backup link/Management Ports
ether2 through ether4 (RJ45): The RJ45 connectors are 10/100/1000BASE-T ports.
