Before using the features associated with the DTI network, you must establish communication between the appliance and the DTI network. Use the following procedures to verify this communication.
Operator or Admin access
Access to the DTI network
Validating DTI access using the Web UI
Use the Trellix System Information page to validate DTI cloud communication.
.png)
Click the About tab.

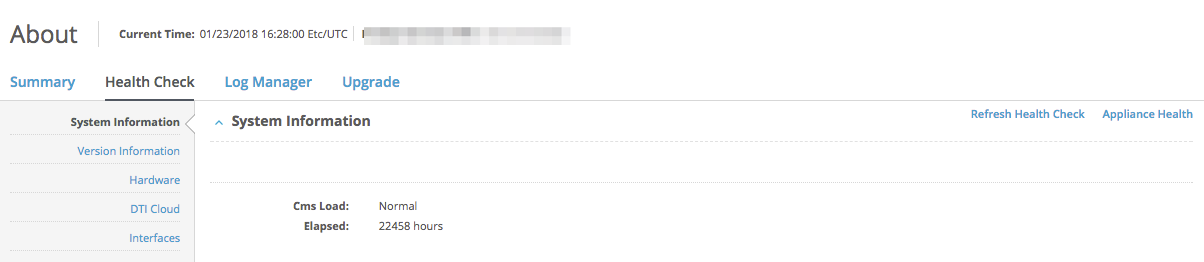

Click Health Check on the upper left side.

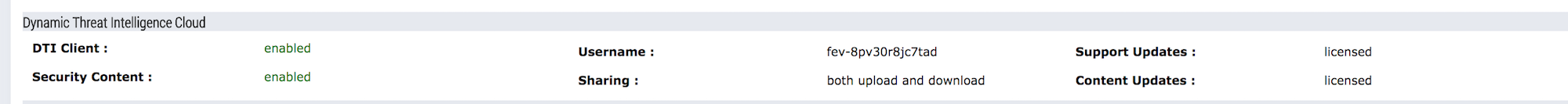

Locate the Dynamic Threat Intelligence Cloud section.
.png)
.png)

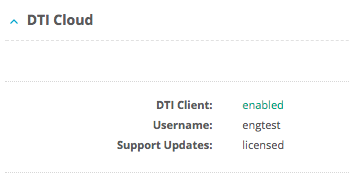

Verify that the DTI Client field is Enabled.
Validating DTI access using the CLI
Use the commands in this topic to verify DTI communication.
Go to CLI configuration mode.
hostname > enable hostname # configure terminal
Check the status of the DTI service. (This example is from a managed appliance.)
hostname (config) # show fenet status Dynamic Threat Intelligence Service: Update source : <online> Enabled : yes Download : DTIUser@10.11.121.13 : singleport Upload : DTIUser@10.11.121.13 : singleport Mil : DTIUser@10.11.121.13 : singleport
HTTP Proxy: Address : Username : User-agent :
Request Session: Timeout : 30 Retries : 0 Speed Time : 60 Max Time : 14400 Rate Limit : Speed Limit : 1
Dynamic Threat Intelligence Lockdown: Enabled : no Locked : no Lock After : 5 failed attempts
UPDATES Enabled Notify Scheduled Last Updated At ------- ------ -------------- --------------- Security contents: yes no every 2016/07/20 05:43:00 Stats contents : yes none 2016/07/20 18:55:00
Confirm the following information:
Update source is online.
DTI service is enabled.
DTI service username is the name provided with DTI subscription license.
DTI service address is
cloud.fireeye.com.
