Use the Live Interface Configuration area in the Email MTA Configuration page to configure or clear the HTTP proxy server settings for URL Dynamic Analysis using the Web UI.

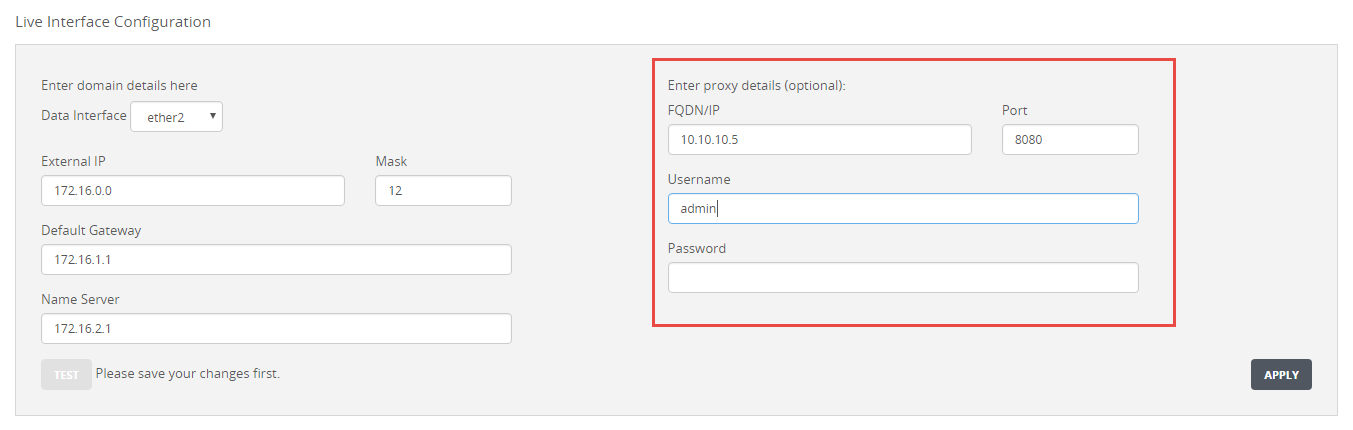

Fields for the proxy server are located under the "Enter proxy details (optional)" label in the Live Interface Configuration area.
Field | Description |
|---|---|
FQDN/IP | Fully qualified domain name or IPv4 address of the HTTP proxy server for the live ether1 or ether2 interface. |
Port | Port number of the HTTP proxy server for the live ether1 or ether2 interface. |
Username | Name of the user who will log in to the HTTP proxy server for the live ether1 or ether2 interface. |
Password | Password for the user. |
In the Web UI, choose Settings > Email MTA.
Enter the fully qualified domain name or IP address and the port number of the HTTP proxy server in the FQDN/IP and Port fields.
If authentication is required, enter the name of the user to access the HTTP proxy server in the Username field.
If authentication is required, enter the password for the user in the Password field.
Click Apply to save your changes.
Click Test. Verify the network connectivity between the HTTP proxy server and the Internet. An error is displayed if the data interface configuration is not correct or the connection attempt failed. Correct the configuration and then test the connection again before you continue.
In the Web UI, choose Settings > Email MTA.
Enter 0.0.0.0 and 0 in the FQDN/IP and Port fields.
Clear the Username and Password fields.
Click Apply.
