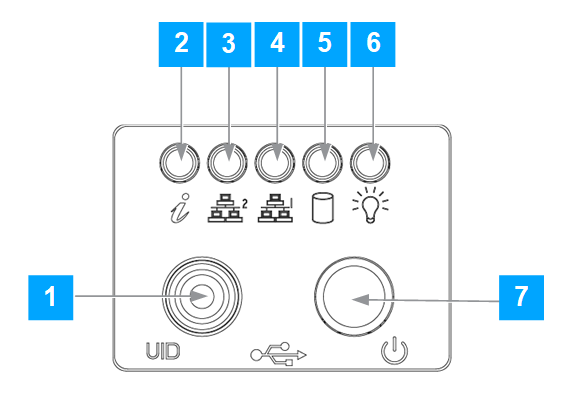

The control panel is on the front of the chassis.
.png "GUID-8D7DDDFB-A007-4DF8-BE76-F368F354674B-low.png")
1 | Unit Identification (UID) Button/LED BMC Reset | The unit identification (UID) button controls the blue light function of the Information LED and a blue LED on the rear of the chassis. Use this button to reset the BMC and disable the rear VGA port to enable the front VGA port if available. |
2 | Information LED | Provides alerts for several states, see table Trellix DLP 8800 system information LED states for the details. |
3 | NIC LED 2 | When LED is blinking, it indicates network activity on LANs; defaults to the first two ports of the CPU1 AIOM |
4 | NIC LED 1 | When LED is blinking, it indicates network activity on LANs; defaults to the first two ports of the CPU1 AIOM |
5 | HDD activity LED | When LED is blinking, indicates activity on the storage drives. |
6 | Power status LED | Steady on – Power on Blinking at 4Hz – Checking BIOS/BMC integrity Blinking at 4Hz and "i" LED is blue – BIOS firmware is updating Two blinks at 4Hz, one pause 2hz and "i" LED blue – BMC firmware is updating Blinking at 1Hz and "i" LED red – Fault detected |
7 | Power button | The main power switch applies or removes primary power from the power supply to the server but maintains standby power. |
Color | State | Status |
|---|---|---|
Red | Solid | Appliance is overheated |
Blinking at 1 Hz | Fan failure, check for an inoperative fan | |
Blinking at 0.25 Hz | Power failure, check for a non-operational power supply. | |
Solid with Power LED blinking green | Fault detected | |
Blue | And red blinking at 10 Hz | Recovery mode |
Solid | UID has been activated locally to locate the server in a rack environment | |
Blinking at 1 Hz | UID has been activated using the BMC to locate the server in a rack environment. | |
Blinking at 2 Hz | BMC is resetting | |
Blinking at 4 Hz | BMC is setting factory defaults | |
Blinking at 10 Hz with power LED blinking green | BMC/BIOS firmware is updating | |
Off | Off | System turned off |
