Trellix DLP 8800 appliance back panel and port assignments

Familiarize yourself with the hardware components on the back panel and network port assignments before setting up the Trellix DLP 8800 appliance.

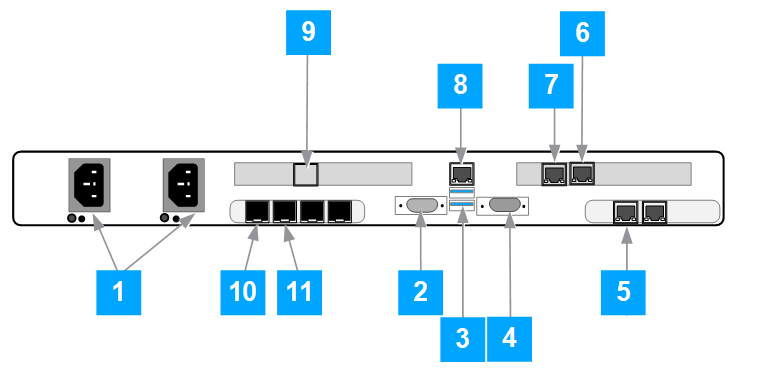

Trellix DLP 8800 back panel

Port assignments

Usage	Trellix DLP 8800
Common ports
Serial console port — Use these connection settings: Baud rate — 115200 Data bits — 8 Stop bits — 1 Parity — None Flow control — None	callout 4 Note By default, the serial console is turned off. Contact the Technical Support to unlock the BIOS and then enable the serial console. The BIOS is password protected, by default.
VGA	callout 2
USB — Use one of the USB ports to connect to the Trellix DLP Capture Storage Array console port using the provided USB-to-serial port adapter.	callout 3
Remote Management Module (RMM) / Baseboard Management Controller (BMC) is used for setup and troubleshooting.	callout 8
Power supplies	callout 1
RAID port (available only when the RAID controller is installed) — Connects the RAID controller to Trellix DLP Capture Storage Array through the provided mini-SAS cable.	callout 9
Network port assignments
OOB port — Out-of-band management traffic such as ePO - On-prem or ePO - SaaS management.	callout 5
LAN 1 port — (10 GBase-T) Data traffic for scanning (Optional) Management traffic	callout 6/callout 10 Callout 10 is used as a LAN1 port when fiber SFP SR/LR NIC is used.
LAN 2 port — Not applicable to Trellix DLP Network Prevent appliance. It is used as capture port 1 in Trellix DLP Network Monitor appliance.	callout 7/callout 11 Callout 11 is used as Capture port 1 with Trellix Monitor Appliance when fiber SFP SR/LR NIC is used.
