The Flash Backed Write Cache (FBWC) installed on the RAID controller preserves the write cache contents in its flash memory. Upon power loss, the super capacitor provides power to the RAID card while it copies write cache contents into flash memory.
The Trellix DLP 7700 appliance doesn't use an internal backup unit (super capacitor). Install the battery backup unit for the DLP Capture RAID controller using the single tier backup unit to protect the RAID cache if there is a power outage. The Trellix DLP 6600 appliance is installed with a single tier battery backup unit (super capacitor), by default. Replace the single tier backup unit with the double tier backup unit to protect the RAID cache if there is a power outage.

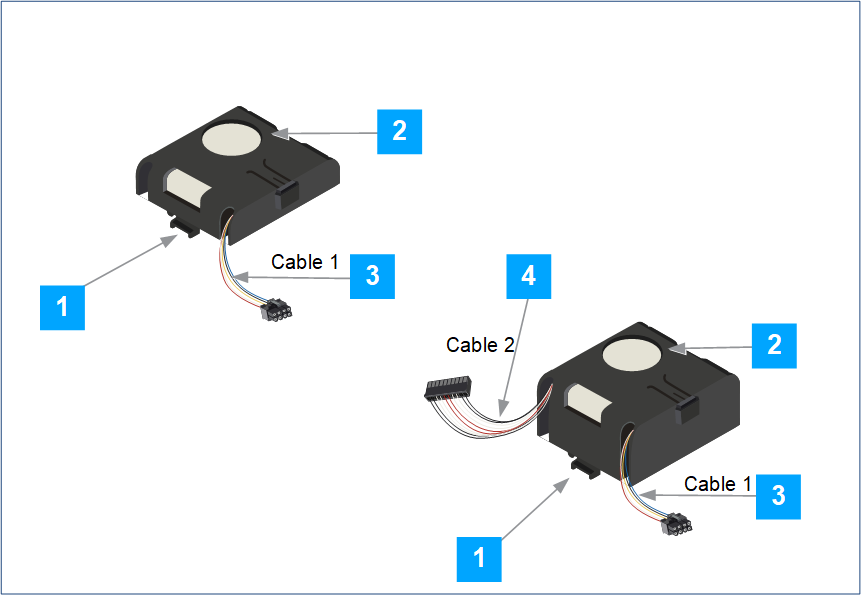

Callout | Description |
|---|---|
1 | Latch — Slide the of the enclosure to include or release the super capacitor. |
2 | Super capacitor enclosure. The single tier super capacitor in its enclosure looks similar to the double tier super capacitor, except that it is of lesser height. |
3 - Cable 1 | Connects to the RAID controller through the super capacitor cable. Single tier capacitor is used in DLP 7700 appliance |
4 - Cable 2 | Both Cable 1 and Cable 2 are present when installing the RAID controller in a DLP 6600 appliance. Connect Cable 2 to the built-in RAID module in DLP 6600 appliance, and connect Cable 1 to the RAID controller card that manages the JBOD. |
