The preinstalled hard disk drives in the Trellix DLP Capture Storage Array become the RAID volume for captured data in the appliance when connected to the RAID controller.

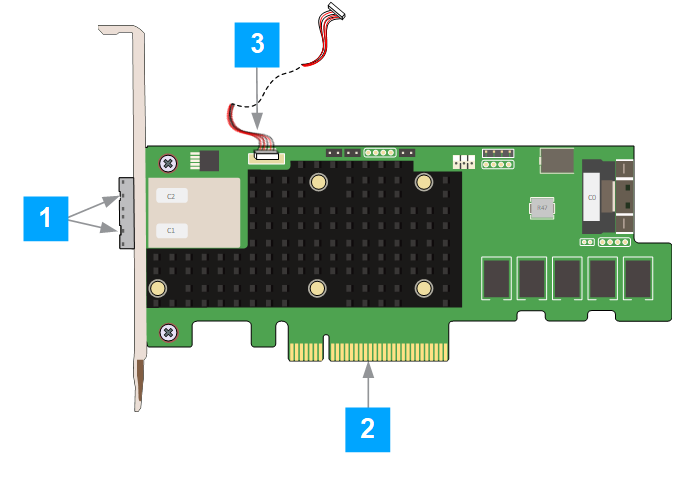

Use the numbered callouts in the figure to locate the RAID controller connecters that you need to connect.
Callout | Description |
|---|---|
1 | Connects the RAID controller by Mini-SAS cable to the appliance. |
2 | PCIe interface — The interface between the RAID controller and the appliance. This connecter also provides power to the RAID board. |
3 | The connecter on the RAID controller is connected to the super capacitor cable. |
