(This topic is applicable to both DLP-CSA-B and DLP-CSA-A models.) To run the DLP Capture feature on a Trellix DLP 8800 appliance, connect the DLP 8800 appliance to the Trellix DLP Capture Storage Array (DLP-CSA-B or DLP-CSA-A).
Caution
If the appliance is turned on, shut down the appliance before removing the power cords. Make sure you unplug the power cords and the network cables from the appliance before you open the appliance cover.
Before you handle the RAID controller and other hardware components, make sure that you fasten the Electrostatic Discharge (ESD) wrist strap to ground yourself to the chassis.
Unpack the Trellix DLP Capture Storage Array package and verify that you received all parts listed in the contents sheet.
Note
Use the single tier battery backup unit in its enclosure and connect it to the Trellix DLP 8800 appliance.
Install the RAID backup unit inside Trellix DLP 8800 appliance
(This topic is applicable to DLP-CSA-B and DLP-CSA-A.) The super capacitor (RAID backup unit) protects the RAID cache in the event of a power outage. Install the single tier super capacitor and connect it to the RAID controller.
Fasten the disposable ESD wrist strap provided in the accessory kit to ground yourself before touching the RAID controller. Perform all installation at an ESD-safe workstation.
Open the appliance top cover.
The top cover of the appliance is held in place by a thumbscrew. Unscrew the thumbscrew at the rear of the cover and slide the cover toward the rear to open the appliance top cover; this is a tool-less installation. Lift the top cover up.
The Trellix DLP 8800 appliance doesn't ship with a RAID backup unit, by default. Use the supplied single tier RAID backup unit.

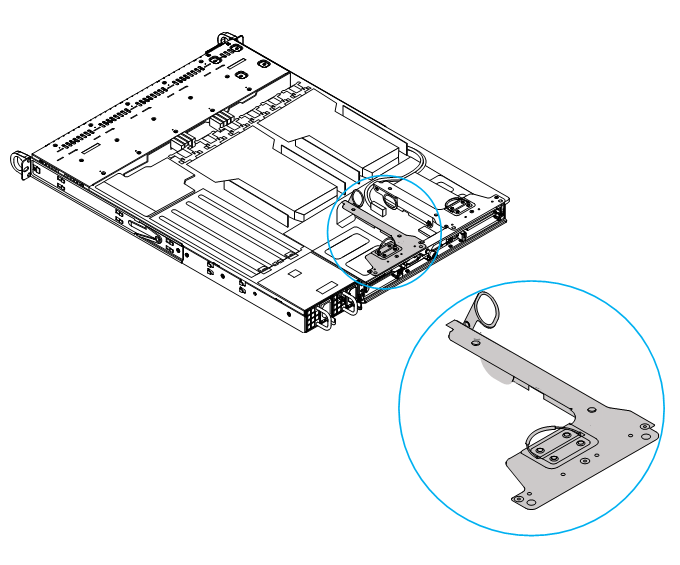

Pull the PCIe riser bracket up and out using the pull tabs.
Use the PCIe riser bracket that is next to the power supplies, as the PCIe riser card farthest to the power supplies is connected to a NIC card.
.png)
Remove the thumbscrew to open the PCIe slot that is below the PCIe riser slot to insert the battery.

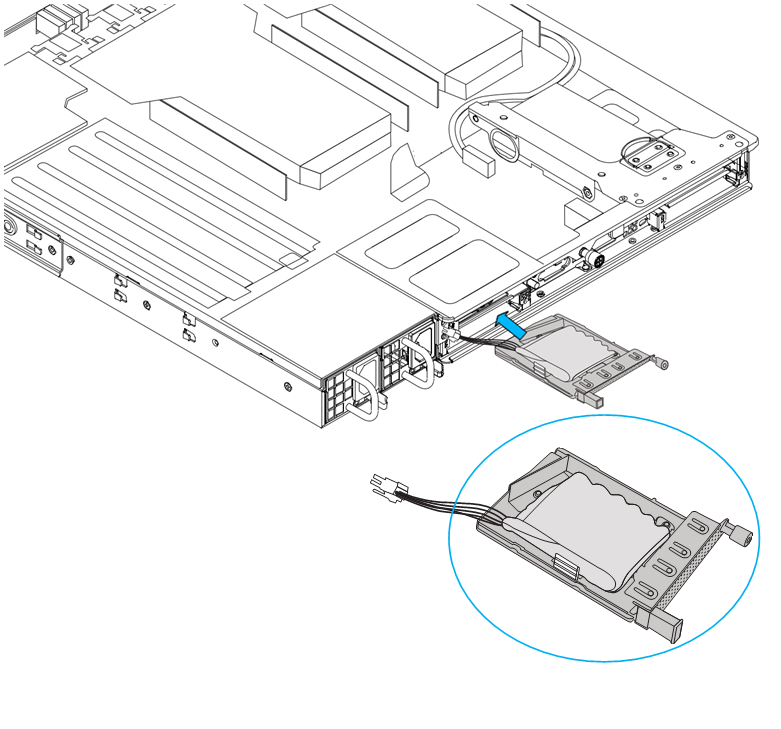

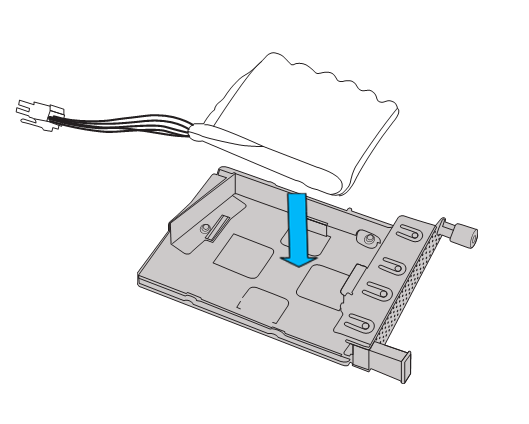

A single tier battery is shipped with the Capture Storage Array. Remove the battery from its enclosure and place it into the battery bracket.
.png)
Slide to insert the single tier battery into the appliance and feed cable out of the backup unit enclosure. Secure back the thumbscrew of the battery bracket.
.png)
Note

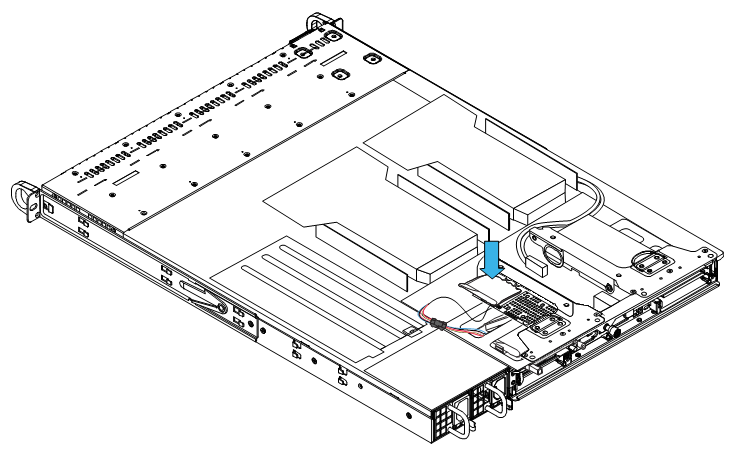

If you have to connect fiber SFP - SR/LR NIC, displace the battery backup unit to some other location in the appliance or place it as shown.
.png)
Install the RAID controller inside Trellix DLP 8800 appliance
(This topic is applicable to DLP-CSA-B and DLP-CSA-A.) The preinstalled hard disk drives in the Trellix DLP Capture Storage Array are converted to a RAID volume when connected to the RAID controller. Install the controller inside the Trellix DLP 8800 appliance before connecting the appliance to Trellix DLP Capture Storage Array.
Open the release latch and remove the dummy plate from the PCIe riser bracket.

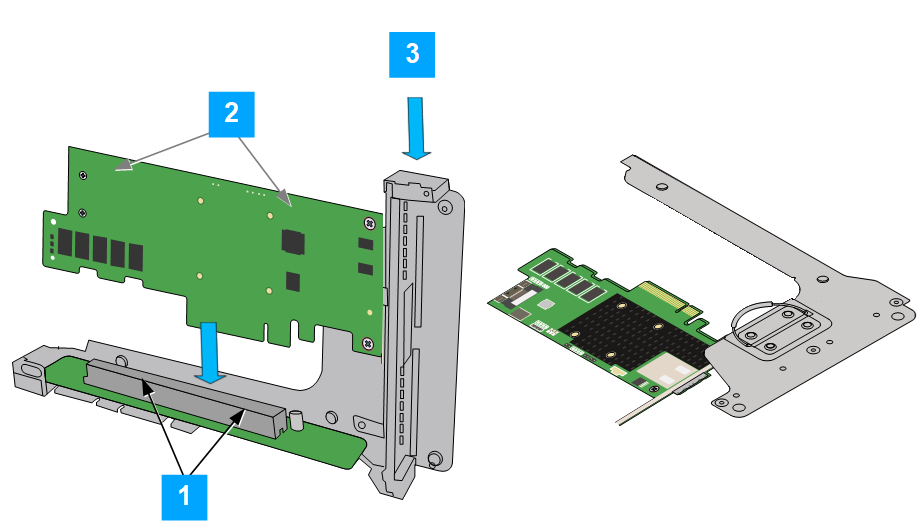

Install the RAID controller bus connecter into the PCIe slot.
Callout
Description
1
Align the RAID controller with the PCIe slot.
2
Press the RAID controller to fit into the PCIe slot.
3
Use the release latch to lock the RAID controller.
.png)
Fix the bracket screw to lock the RAID controller into the PCIe slot.

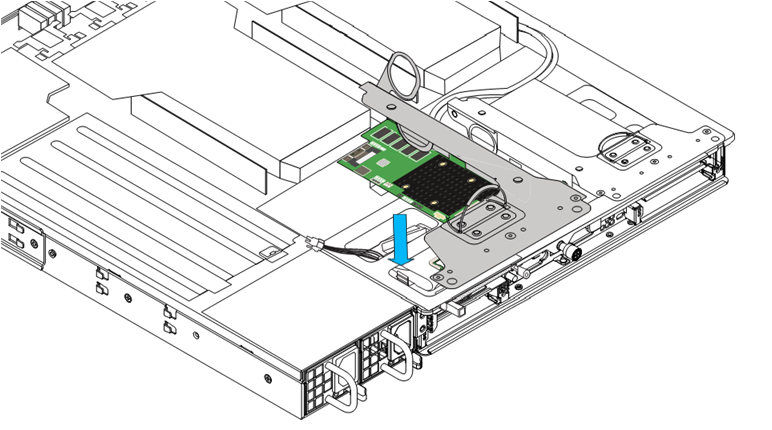

Fit the PCIe riser bracket back, fitted with the RAID controller into the appliance and push back the pull-tabs.
Note
Make sure that the PCIe riser card is fully seated into the card edge connecter on the motherboard.
.png)

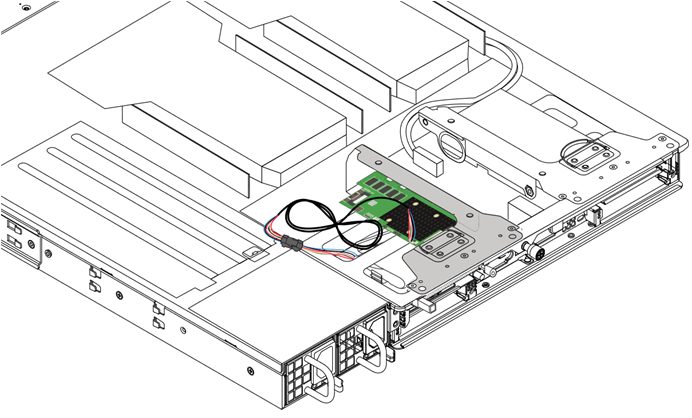

Connect the cable of the RAID backup unit to the connector on the RAID controller.
.png)
Bundle the cable using the tie wraps included in the accessory kit box.
Close the appliance cover. Replace the tamper label with the spare tamper label to cover the screw heads. Install the appliance in a rack.
Connect the Trellix DLP Capture Storage Array to the Trellix DLP 8800 appliance
(This topic is applicable to DLP-CSA-B and DLP-CSA-A.) By connecting the Trellix DLP Capture Storage Array to the Trellix DLP 8800 appliance, you can use the DLP Capture feature.
Install the storage array in a rack.
Caution
Don't connect the power sources as both the appliance and Trellix DLP Capture Storage Array are set to on by default when the power sources are connected. Also, don't turn on the Trellix DLP Capture Storage Array until the appliance is set up. Apply the power only when the hardware installation is complete.
Locate the provided mini-SAS cable.
Connect one end of the mini-SAS cable to the RAID controller port at the back panel of the appliance and the other end to the Trellix DLP Capture Storage Array port.

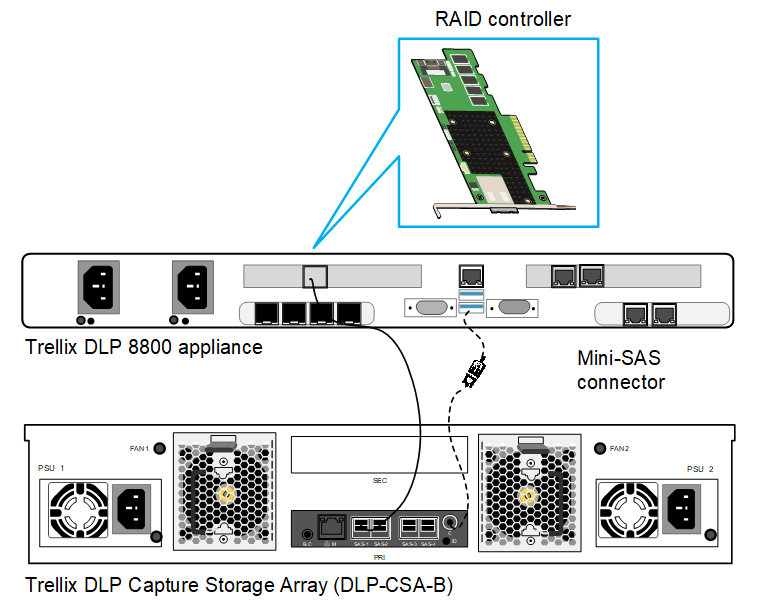

Trellix DLP Capture Storage Array (DLP-CSA-B) connected to Trellix DLP 8800 appliance.png "Connecting_8800_with_Capture_Storage_ArrayDLP_CSA-B.png")

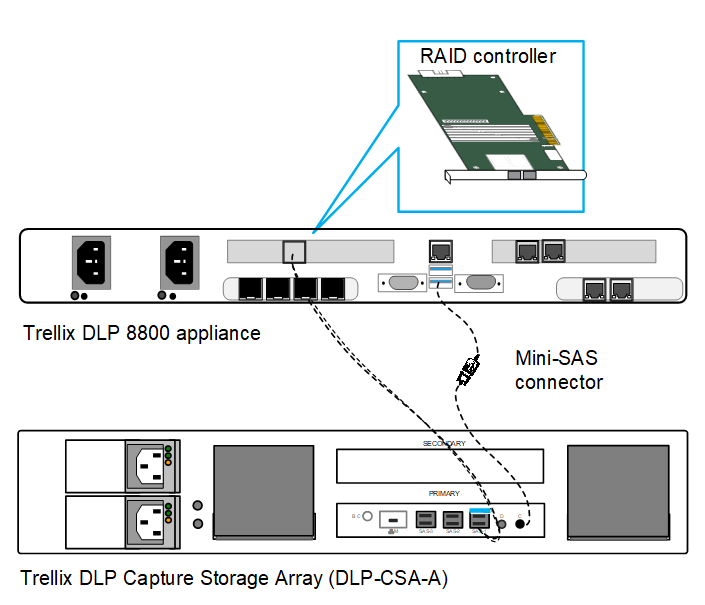

Trellix DLP Capture Storage Array (DLP-CSA-A) connected to Trellix DLP 8800 appliance.png "Connecting_8800_with_DLP_Capture_Storage_Array_-_dlpcsa-a.png")
Connect the console serial port to the Trellix DLP 8800 appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter and plug in the USB connecter to connect to the appliance.
Connect the power supply cables of the appliance and Trellix DLP Capture Storage Array to its respective power supply source.
Both the appliance and the storage array have dual hot-swap power supplies and automatically turn on when connected to the power supply.
The Trellix DLP Capture Storage Array is not recognized until the appliance software is reinstalled. Reinstall the appliance software when you connect a capture storage disk to an existing appliance.
Log on to the appliance as administrator.
From the appliance console menu, select Reboot to restart the system.
When you reboot the appliance, you get to see a GRUB menu.
Select Trellix DLP Network Prevent Internal Installation Image (Password required).
Follow the on-screen instructions to reimage the appliance.
