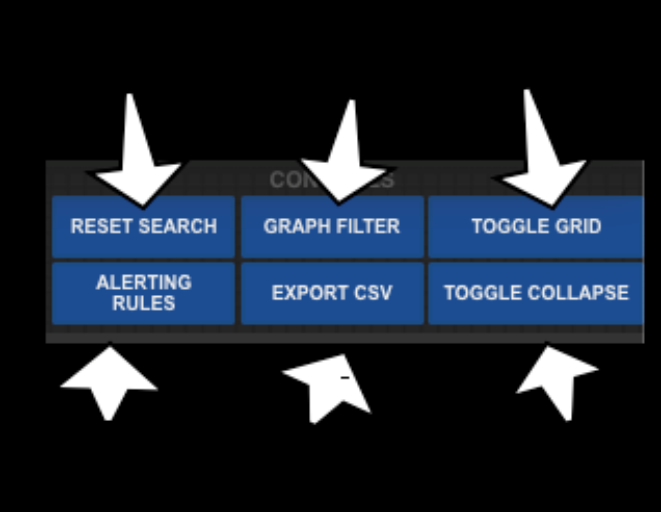

This section describes the controls in the Logon Tracker UI that affect the state of the data currently displayed. These controls do not perform additional queries at the backend, but instead enable you to quickly interact with the data that has already been loaded.


  • Reset Search: Resets search parameters on Search UI to defaults.

  • Graph Filter: Displays the Graph Filter UI and lets you filter loaded results. For more information see, the Filtering Results section.

  • Toggle Grid: Expands or shrinks the grid view to fill the entire UI. This feature is useful when analyzing events when the graph view becomes unhelpful. When the grid is expanded, the graph visualization is suspended improving UI performance.

  • Export CSV: Takes loaded results and exports them to CSV for further analysis or reporting

  • Toggle Collapse: Toggles the summarization of hosts into a single graph node. More information on the collapse functionality is provided in the “Toggle Collapse” section below.

  • Alerting Rules: Opens the alerting rules management dialog box. For more information on the alerting rules, see the Alerting Rules section.
