The Endpoint Security (HX) Web UI uses HTTPS to provide a secure connection for configuring the server. The Web UI functions you have access to depend on the privileges granted by your role.
You access the Endpoint Security (HX) Web UI by directing a browser to the management port's IP address or hostname using HTTPS. The IP address and hostname are set during the initial configuration of the server. The hostname must be resolved by a DNS server if you use it to access the Web UI.
The Endpoint Security (HX) Web UI includes controls for logging in and out using local, appliance-specific credentials.
Browser support
Use one of the following browsers to access the Endpoint Security (HX) Web UI:
Internet Explorer 11.0 or higher and Microsoft Edge on supported versions of Windows
Firefox 51 or higher on supported versions of Windows
Google Chrome 13.0 or higher on supported versions of Windows
Screen resolution requirements
The Endpoint Security (HX) Web UI supports the following screen resolutions:
1152 x 864 pixels | 1440 x 900 pixels |
1280 x 800 pixels | 1600 x 900 pixels |
1280 x 1024 pixels | 1680 x 1050 pixels |
1360 x 768 pixels | 1920 x 1080 pixels |
1366 x 768 pixels | 1920 x 1200 pixels |
Logging in to the Endpoint Security (HX) Web UI
To log in to the Endpoint Security (HX) Web UI, you need the server IP address or hostname, and you need the username and password that the server administrator created for you.
Important
There are two versions of IAM. If the URL you use to access the IAM UI ends with fireeye.com, this document pertains to you. If the URL you use to access the IAM UI ends with trellix.com, see the Trellix IAM Guide for information regarding IAM.
Before the default Admin user can log in to the appliance Web UI and create other user accounts, the manufacturing default password (
admin) must be changed to a new password that is 8 to 32 characters long. This step is included in "Initial Configuration" in the Endpoint Security (HX) System Administration Guide.If you are using single sign-on, refer to your welcome email for instructions to log in to your Cloud IAM instance.
Open a Web browser and enter
https://<appliance>:3000in the address line, whereapplianceis the IP address or hostname of the appliance. For example, if the configured IP address of the appliance is 10.1.0.1, enterhttps://10.1.0.1.Open a Web browser and enter

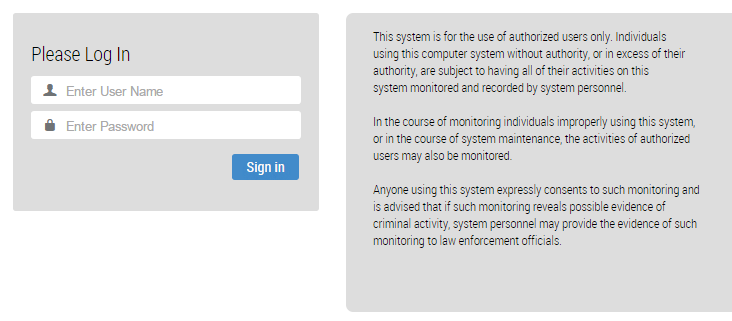

https://<appliance>:3000in the address line, whereapplianceis the IP address or hostname of the appliance. For example, if the configured IP address of the appliance is 10.1.0.1, enterhttps://10.1.0.1.In the appliance Web UI login page, enter the local username and password for this appliance as provided by your administrator.
Note
On Endpoint Security (HX) servers with single sign-on enabled, you may be directed to the Cloud IAM login screen. Your login experience depends on the authentication mode set for the appliance. For more information, see "Single Sign-On Authentication" in the System Security Guide.
