When global host-key authentication is enforced on a managed Network Security appliance, you must obtain the public host-key from the Central Management System appliance and import it into the Network Security appliance global host-keys database. This is described in Host-key authentication .
The Central Management System host-key string includes its IP address. If the Central Management System appliance is in an internal network behind a NAT gateway, the IP address in the key string you obtain from the Central Management System Web UI or CLI must be replaced with the virtual IP address that is mapped to the Central Management System on the NAT gateway.
Example
.jpg)

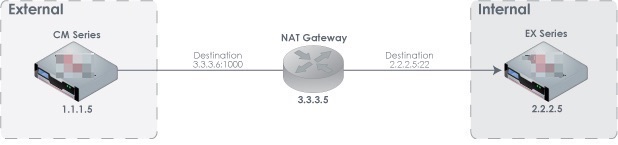

In this example, the Central Management System platform is behind the NAT gateway. Its IP address is 1.1.1.5, and its virtual IP address is 3.3.3.5.
Note
This example is from an Email Security — Server appliance, but it is representative of Network Security appliances as well.
.jpg)
The host-key string you obtain from the Central Management System Web UI or CLI starts with "1.1.1.5". For example:
1.1.1.5 ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCzd5JwKBjHLe/jxkF0JzWcXOTw9l0 bz2SctkQrihkqg/zXqrmxAfgbzYulDSIxOKZTh2VBnKsy0qRWrCps64Itlh6iRlr7Jxa+jAtTAGsy ...
Before you import the host-key into the Email Security — Server global host-keys database, you must replace "1.1.1.5" with "3.3.3.5." For example:
3.3.3.5 ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCzd5JwKBjHLe/jxkF0JzWcXOTw9l0 bz2SctkQrihkqg/zXqrmxAfgbzYulDSIxOKZTh2VBnKsy0qRWrCps64Itlh6iRlr7Jxa+jAtTAGsy ...
