Manual time configuration

You can manually set the date and time on your Network Security appliance.

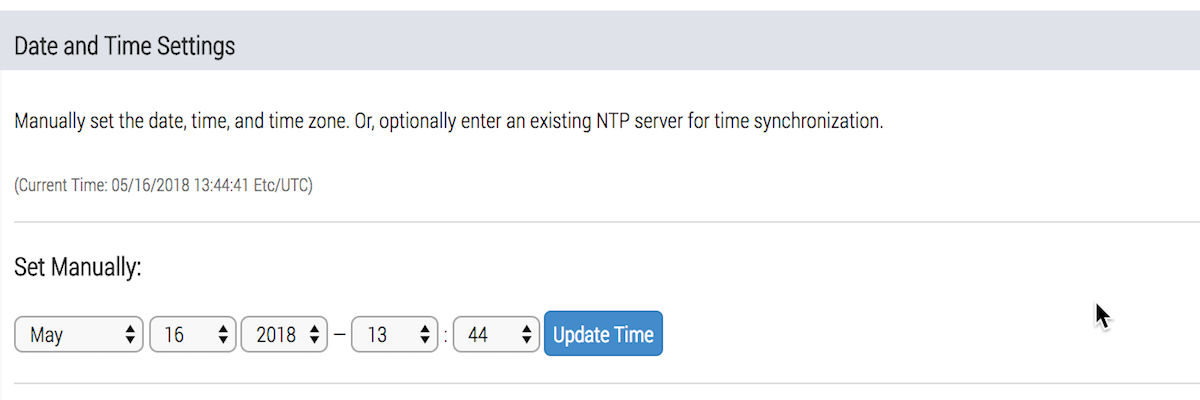

Setting the date and time using the Web UI

Use the top section of the Date and Time Settings page to set the date and time for your Network Security appliance.

Note
The Intelligent Virtual Execution - Server appliance has a CLI and a Web UI. The recommended method for this configuration on a Intelligent Virtual Execution - Server appliance is through the Central Management System Web UI.

Important
NTP synchronization is set by default and must be disabled before you can manually configure the date and time. For instructions about disabling NTP, see NTP server configuration .

Note
If you manually configure the time of Endpoint Security (HX) servers, be sure the server times of all your Endpoint Security (HX) servers are synchronized. A number of Endpoint Security (HX) services (including PKI services and transport layer security services) require that the dates and times of your Endpoint Security (HX) servers be accurate and synchronized within five seconds of each other. If you use NTP synchronization, the dates and times of your Endpoint Security (HX) servers will be synchronized automatically.

Prerequisites

Admin access

To set the date and time:

Click the Settings tab.
Click Date and Time on the sidebar.
Select the date and time from the drop-down lists.
Click Update Time.
Set the time zone as described in Time zone configuration .

Setting the date and time using the CLI

Use the CLI commands in this topic to set the time zone on your Network Security appliance.

Important
NTP synchronization is set by default and must be disabled before you can manually configure the date and time. For information about disabling NTP, see NTP server configuration.

Note
If you manually configure the time of Endpoint Security (HX) servers, be sure the server times of all your Endpoint Security (HX) servers are synchronized. A number of Endpoint Security (HX) services (including PKI services and transport layer security services) require that the dates and times of your Endpoint Security (HX) servers be accurate and synchronized within five seconds of each other. If you use NTP synchronization, the dates and times of your Endpoint Security (HX) servers will be synchronized automatically.

Prerequisites

Admin access

To set the date and time:

Go to CLI configuration mode:

hostname > enable
hostname # configure terminal

(Optional) Use the clock set <HH>:<MM> <YYYY>/<MM>/<DD> command to specify the time and date. For example, the following command sets the time and date to 2:00 p.m. on July 21, 2014:
```
hostname (config) # clock set 14:00 2014/07/21
```
Use the clock timezone <timezone> command to specify the time zone. For example, both of the following commands set the time zone to Pacific Standard Time:
```
hostname (config) # clock timezone UTC-offset UTC+8
```
```
hostname (config) # clock timezone America North United_States Pacific
```
Note
The time zone is for display purposes and should match other security device settings.
To restore the default time zone:
```
hostname (config) # no clock timezone
```
View the configured time and date settings:
```
hostname (config) # show clock
```
Save your changes.
```
hostname (config) # write memory
```

Examples

Time and date using the North America Central Daylight time zone:

hostname > show clock
Time:        16:39:35
Date:        2014/06/25
Time zone:   America North United_States Central
             (US/Central)
UFC offset: -0500 (UTC minus 5 hours)

Time and date settings using the default time zone:

hostname > show clock
Time:         21:40:37
Date:         2014/06/25
Time zone:    UTC
              (Etc/UTC)
UTC offset:   same as UTC
