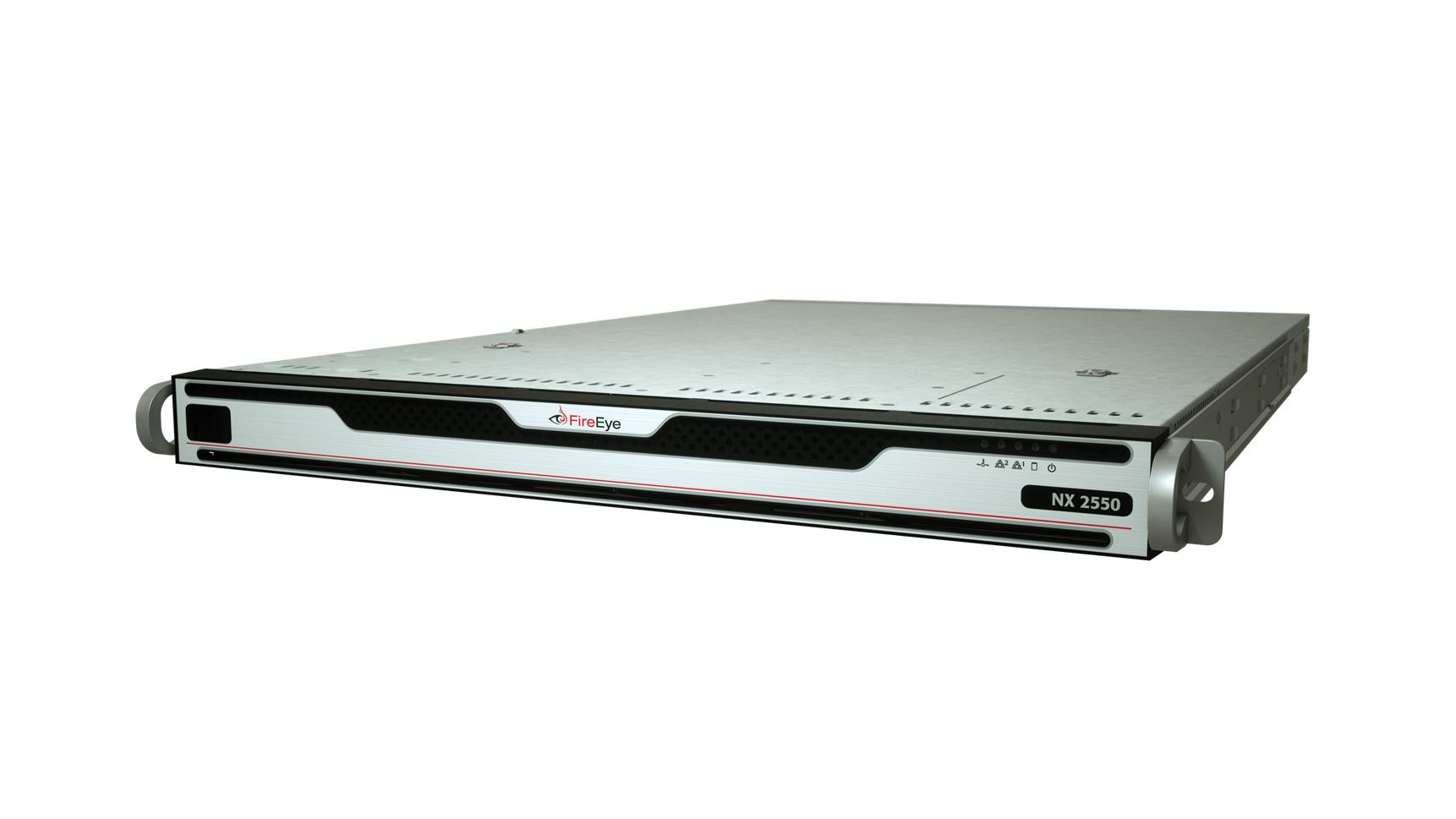

CHAPTER 1: The NX 2550

The FireEye NX 2550 stops the new generation of cyber attacks that use zero-day Web exploits and multiprotocol malware callbacks to compromise the majority of today's networks.

When used as a standard (or integrated) appliance, the NX Series appliance performs both monitoring and analysis functions. When used as a sensor within the FireEye Network Security, the NX 2550 only monitors traffic, extracting objects and URLs and sending them to an MVX cluster for analysis. This allows a flexible approach to your security solution.

© 2019 FireEye 5

NX Series Hardware Administration GuideCHAPTER 1: The NX 2550

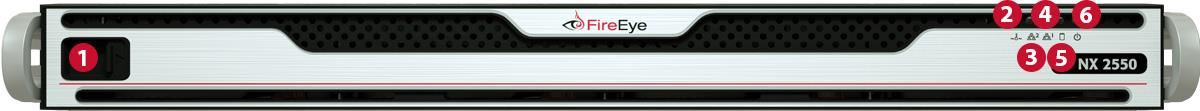

The Front View

• Bezel Release: Slide the release tab to the right to remove the bezel from the appliance to access the chassis.

LEDs

The front panel has LEDs that provide critical information about parts of the appliance. The following table describes each LED.

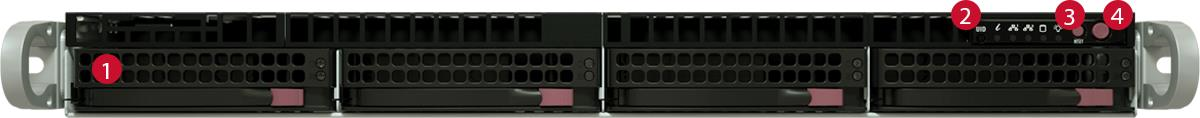

The Front View

Chassis

• Disk Drive Carrier: Each carrier can house a hot-swappable disk drive.

Buttons

The chassis has one reset button, one power button, and one UID button.

• Unit Identifier Button: Pressing this button illuminates an LED on both the front and rear of the chassis for easy system location. The LEDs remain on until the button is pressed a second time.

• Reset Button: Use the reset button to restart the appliance.

• Power Button: Use the power button to turn the appliance on or off. Turning off the power with this button removes the main power but keeps the standby power supplied to the appliance. Therefore, unplug the appliance before servicing.

© 2019 FireEye7

NX Series Hardware Administration GuideCHAPTER 1: The NX 2550

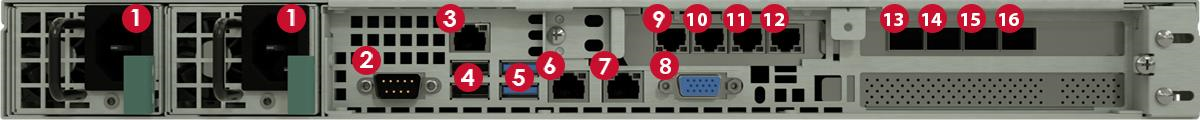

The Rear View

Power Port

• Power: Connect your power source to this port to provide power to the appliance. The appliance comes with one redundant power supply unit for use if the primary unit fails.

I/O Ports

• Video: Connect a monitor to this port to view the appliance's command-line interface.

• USB 2.0: These ports are USB 2.0 compliant.

• USB 3.0: These ports are USB 3.0 compliant.

• Serial Console: Connect to this port to manage the appliance from your terminal.

© 2019 FireEye

The Rear View

Management Ports

• ether (RJ45): Connect your LAN to this port to enable remote access to the CLI and Web UI. The RJ45 connector is a 10/100/1000BASE-T port.

• IPMI: Connect for access to out-of-band management functions, including power control, console redirection, and appliance health status. The connector is a 100BASE-T port.

Out-of-Band Blocking Port

• pether2 (RJ45): If your appliance is deployed out-of-band, you can dedicate this port for use of the out-of-band blocking feature. See the NX Series System Administration Guide for your release for more information about operational modes.

Monitoring Ports

Each interface pair is physically and logically segregated from other interface pairs, preventing communication between the different network segments.

• pether (RJ45): Connect the switch port you want to monitor to this port. The RJ45 connectors are 10/100/1000BASE-T ports.

• pether (SFP+): The SFP+ connectors accept the following modules:

  • 1000BASE-SX/10GBASE-SR (LC MMF)

  • 1000BASE-LX/10GBASE-LR (LC SMF)

  • 1000BASE-T (RJ45)

  • 10GBASE-CU (5m direct attach cable)

Pether7—10 support data rates up to 10 Gbps. Connect the switch port you want to monitor to this port.

Link partners connected to the same port pair must have the same data transmission rate (1 Gbps or 10 Gbps). The port pairs are as follows:

• pether7 and pether8

• pether9 and pether10

Contact Customer Support to order the appropriate transceiver modules.

© 2019 FireEye

NX Series Hardware Administration Guide

CHAPTER 1: The NX 2550

10

© 2019 FireEye

NX Series Hardware Administration GuideInline Deployment

CHAPTER 2: Deployment

There are two types of deployment: inline and out-of-band. An inline deployment provides high security by blocking all malicious traffic from reaching your network. An out-of-band deployment only monitors malicious content as it enters your network; it does not block malicious content.

FireEye strongly recommends using an inline deployment mode.

Deployment modes include:

• Inline Deployment below

• Inline Proxy Deployment on the next page

• Test Access Point (TAP) Deployment on page 13

• Port Mirroring (SPAN) Deployment on page 14

Inline Deployment

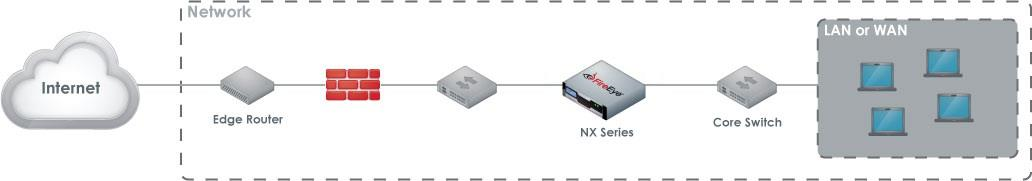

The diagram below illustrates the deployment of an NX 2550 appliance installed between the LAN and the firewall in a typical network topology.

Prerequisites

Before connecting the NX 2550 appliance to your network:

© 2019 FireEye

11

• Make sure that the connecting routers or switches do not provide data output greater than 1 Gbps for RJ45 ports and 10 Gbps for SFP+ ports.

• Determine which ports on your routers or switches provide ingress and egress data.

Cabling

Connect the appropriate cables to the NX 2550 appliance’s ports as follows:

• ether1: Connect one end of the cable to the NX 2550 appliance’s ether1 port, and connect the other end to your LAN-facing switch. This will enable you to access the appliance’s Web UI.

• pether3: Connect one end of the cable to the NX 2550 appliance’s pether3 port, and connect the other end to your LAN-facing switch.

• pether4: Connect one end of the cable to the NX 2550 appliance’s pether4 port, and connect the other end to the Internet-facing switch.

You can monitor another network segment by connecting a LAN-facing switch and an Internet-facing switch to pether5–6.

Alternatively, pether4–6 can be used instead.

Inline Proxy Deployment

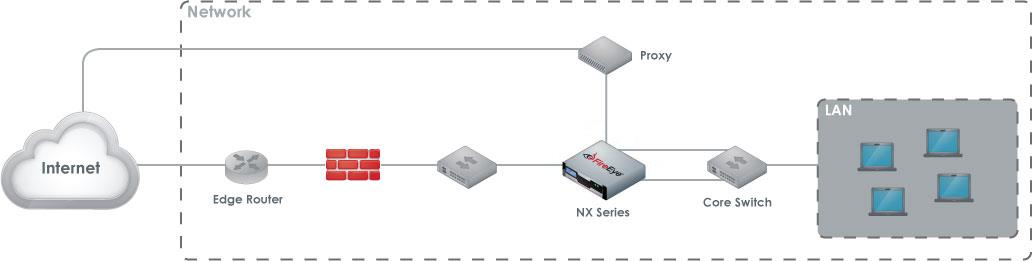

The diagram below illustrates the deployment of an NX 2550 appliance installed between the LAN and the firewall in a typical network topology.

If your environment contains Web proxies or other NAT devices that obscure incoming IP addresses, deploy the NX device so that it sees Web traffic from the internal (or LAN) side of the proxy. If you place the NX device on the external side of the proxy, the NX appliance reports a malicious site as being the LAN IP of the proxy.

Test Access Point (TAP) Deployment

Connect your NX 2550 appliance between two routers or switches on your network, and to your proxy.

Prerequisites

Before connecting the NX 2550 appliance to your network:

• Make sure that the connecting routers or switches do not provide data output greater than 1 Gbps for RJ45 ports and 10 Gbps for SFP+ ports.

• Determine which ports on your routers or switches provide ingress and egress data

Cabling

Connect the appropriate cables to the NX 2550 appliance’s ports as follows:

• ether1 cable: Connect one end of the cable to the NX 2550 appliance’s ether1 port, and connect the other end to your LAN-facing switch. This will enable you to access the appliance’s Web UI.

• pether3 cable: Connect one end of the cable to the NX 2550 appliance’s pether3 port, and connect the other end to the LAN-facing switch.

• pether4 cable: Connect one end of the cable to the NX 2550 appliance’s pether4 port, and connect the other end to the proxy server.

• pether5 cable: Connect one end of the cable to the NX 2550 appliance’s pether5 port, and connect the other end to the LAN-facing switch.

You can monitor additional proxy servers by connecting additional proxies and LAN-facing switches to pether6—10.

Test Access Point (TAP) Deployment

Test Access Point (TAP) uses a TAP device to provide a real-time duplicate copy of the network traffic through the network.

Test Access Points have the following limitations:

• You must purchase a separate TAP device to deliver packets to the NX Series device.

• A TAP deployment does not block malware from accessing your network.

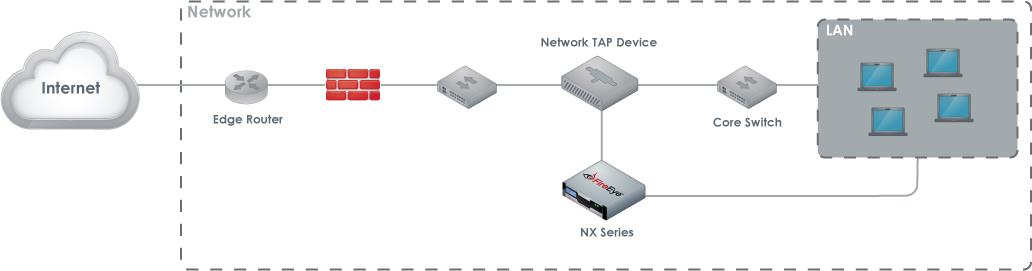

To deploy the FireEye NX Series appliance using a TAP device, you first connect the TAP device inline to your network. You then connect the FireEye NX Series monitoring ports to the ingress and egress ports on the TAP device. The following diagram illustrates the TAP deployment in a typical network topology.

© 2019 FireEye

13

Prerequisites

Before connecting the NX 2550 appliance to your network:

• Make sure that the connecting routers or switches do not provide data output greater than 1 Gbps for RJ45 ports and 10 Gbps for SFP+ ports.

• Determine which ports on your routers or switches provide ingress and egress data.

Cabling

Connect the appropriate cables to the NX 2550 appliance’s ports as follows:

• ether1: Connect one end of the cable to the NX 2550 appliance’s ether1 port, and connect the other end to your LAN-facing switch. This will enable you to access the appliance’s Web UI.

• pether3: Connect one end of the cable to the NX 2550 appliance’s pether3 port, and connect the other end to your TAP device.

Port Mirroring (SPAN) Deployment

Port mirroring deployment, also known as Switch Port Analyzer (SPAN) packet capture, is usually the least expensive option in a low-traffic network environment. To set up port mirroring, you configure a router or switch with port mirroring capability to forward a copy of incoming and outgoing traffic passing between selected ports to SPAN ports on the switch. Then connect the SPAN ports to the appliance.

Port mirroring has the following limitations:

• Heavily used networks may result in dropped packets that are not passed to the NX Series appliance.

Port Mirroring (SPAN) Deployment

• Port mirroring is active packet duplication. The router or switch uses its processing power to mirror the network packets and pass these packets to the NX Series device. In a heavily used network, the network quality and response times tend to degrade.

• The router or switch must be configured to provide port-mirrored data to the NX Series appliance. Maintenance costs for this configuration can be higher than other configurations.

• Detected malware cannot be prevented from accessing your network.

• SPAN port connectivity issues may cause delays in your deployment. You may need to add a few days to troubleshoot the connectivity issues.

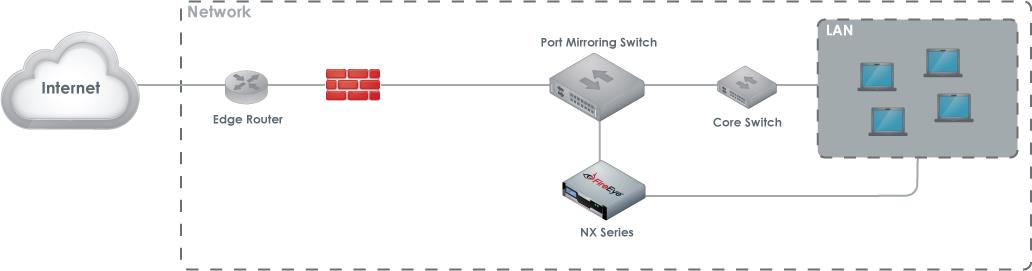

The following diagram illustrates the port mirroring deployment in a typical network topology.

You must configure the SPAN port correctly and test it to make sure that the mirroring ports are passing all of the traffic you want to monitor. This usually requires an administrator with networking expertise who can set up the SPAN port and run TCPDump or WireShark to monitor the traffic and verify that there is bi-directional TCP port 80 (HTTP) traffic passing through the port.

Prerequisites

Before connecting the NX 2550 appliance to your network:

• Make sure that the connecting routers or switches do not provide data output greater than 1 Gbps for RJ45 ports and 10 Gbps for SFP+ ports.

• Determine which ports on your routers or switches provide ingress and egress data.

Cabling

Connect the appropriate cables to the NX 2550 appliance’s ports as follows:

© 2019 FireEye

NX Series Hardware Administration Guide

CHAPTER 2: Deployment

• ether1: Connect one end of the cable to the NX 2550 appliance’s ether1 port, and connect the other end to your LAN-facing switch. This will enable you to access the appliance’s Web UI.

• pether3: Connect one end of the cable to the NX 2550 appliance’s pether3 port, and connect the other end to your SPAN device.

16

© 2019 FireEye

CHAPTER 3: Installation

This chapter provides information about the site requirements of your installation location.

Before You Begin

Follow the steps in this section before you install the appliance.

Before Opening the Box

• Review the Packing Slip contained in the plastic slip attached to the top of the box. Ensure the shipment contains the correct appliance.

• Ensure the serial number listed on the Packing Slip matches the one specified on the sticker located on one side of the box.

• If there appears to be damage to the box, file a damage claim with the carrier who delivered it.

Unpacking the Appliance

Carefully remove the appliance from the box in an area away from heat, electrical noise, and electromagnetic fields.

Ensure your box contains:

• The correct appliance model

• An accessory kit

• Online Documents Portal Referral

• A rail kit

Installation Site Guidelines

Follow these guidelines when you select an installation site:

© 2019 FireEye

17

NX Series Hardware Administration Guide

CHAPTER 3: Installation

• Leave enough clearance in front of the rack for its door to open completely without obstruction.

• Avoid environments that produce heat, electrical noise, and electromagnetic fields.

• Only install the appliance in a restricted access location such as a service closet or dedicated equipment room.

• Make sure the location is properly ventilated.

• Make sure there is sufficient space for air flow.

Rack Precautions

FireEye recommends that you mount the appliance in a standard 19-inch rack. The vertical hole spacing on the rack rails must meet standard ANSI/EIA-310-C requirements.

Consider the following before installing your appliance in the rack:

• Ensure the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.

• In a single-rack installation, stabilizers should be attached to the rack.

• In a multiple-rack installation, the racks should be coupled together to increase their stability.

• Always make sure the rack is stable before extending a component from the rack.

• Only extend one component from the rack at a time—extending two or more simultaneously may cause the rack to become unstable.

• Ensure your rack meets the safety requirements of UL 60950-1.

STABILITY HAZARD: The rack may tip over causing serious personal injury. To prevent injury:

• Before extending the rack to the installation position, read the installation instructions.

• Do not put any load on the slide-rail mounted equipment when the rails are extended in the installation position.

• Do not leave the slide-rail mounted equipment with the rails extended in the installation position.

Server Precautions

Server Precautions

FireEye recommends reviewing the electrical and general safety precautions that came with each component you intend to install in the rack.

Review the following before installing the appliance in the rack:

• Determine the placement of each component in the rack.

• Ensure there is a minimum clearance of six inches behind the chassis to allow for easy cable management.

• Install the heaviest component at the bottom of the rack first, then move up.

• Allow hot-swappable power supply units, disk drives, and transceivers to cool before handling them.

• Use a regulating uninterruptible power supply to protect your components from voltage spikes, power surges, and failure during a power outage.

• Keep all of the rack's doors and panels closed when you are not servicing the components.

Rack-Mounting Precautions

Consider the following safety precautions when you install the appliance in the rack:

• Make sure the appliance is grounded at all times to prevent damage from electrostatic discharge.

• Use an electrostatic wrist guard when handling the appliance.

• At least two technicians should be involved to install the appliance safely.

• FireEye recommends only individuals with rack-mounting experience should install the appliance.

• Install the appliance in an environment compatible with the manufacturer's maximum recommended ambient temperature (TMRA) for each component in your rack.

Power Requirements

The NX uses a 750 W power supply unit with an input rating of 100-240 VAC (±10%), 8-4.5 A at 50-60 Hz.

© 2019 FireEye      19

NX Series Hardware Administration Guide

CHAPTER 3: Installation

Ensure your power source has sufficient electrical overload protection. In North America, connect the rack to a power source with over-current protection that complies with UL 489. In Europe, the over-current protection must comply with IEC standards.

Ventilation Requirements

Ventilation and optimal location are essential to the proper operation of the NX Series appliance. Give the unit at least six inches of space around ventilation openings so that adequate ventilation is possible.

The NX Series appliance draws air through the front and expels it out the back. Note the direction of the air intake and exhaust of the other components in the rack to ensure safe ventilation of all components involved.

Cabling Requirements

The NX ships with the following cables:

• (2) 6 ft AC power cord, SVT, 60°C, 3x18AWG (0.824mm²)

• (1) 6 ft null modem DB9 female serial cable

You must provide any additional cables required to connect your system to the network and other devices. Do not exceed the maximum run length of the additional cables you provide.

The SFP+ connectors on the NX 2550 are 850nm multimode ports that support a 10Gbps transmission rate. The connecting cables must not exceed 100 meters.

Rack Installation

This section explains how to install your appliance in a standard 19-inch wide rack with the equipment provided. Because various rack units are available, the assembly procedure may differ slightly from the following instructions. Refer to the installation instructions that came with your rack.

Installing the Outer Rails on the Rack

1. Attach a short bracket to the front end of the right outer rail and a long bracket to the rear end of the right outer rail.

2. Adjust the length of the right outer rail to the size of the rack.

20

© 2019 FireEye

Attaching Cables to the Appliance

1. Attach the right outer rail to the right side of the rack using the screws provided.

2. Repeats steps 1-3 with the left outer rail.

Mounting the Appliance on the Rack

1. Align the rear of the inner rails installed on the appliance with the front channels of the outer rails installed on the rack.

2. Slide the appliance about halfway into the rack.

3. Press the rail-release notches down on both rails and slide the appliance fully into the rack.

4. (Optional) Further secure the appliance to the rack by inserting screws through the ears of the appliance and fastening them to the rack.

Attaching Cables to the Appliance

1. Connect the NX Series appliance to one or more network devices using the cables appropriate to the deployment of your choice.

2. Connect the power cable or cables to the power port or ports on the back of the appliance.

Turning On the Appliance

Power on the appliance by pressing the power button behind the bezel.

© 2019 FireEye

    NX Series Hardware Administration Guide     Return Process

CHAPTER 4: Replacements

Return Process

If you believe you have a defective part or system, you must first contact FireEye Technical Support, who will validate the claim. If the part or system is defective, Technical Support will initiate a Return Materials Authorization (RMA) and guide you through the process. For more information, visit www.fireeye.com/legal.

Removing and Replacing a Disk Drive

Perform the following steps to remove and replace a disk drive:

1. Slide the bezel release tab to the right to unlatch it from the chassis.

2. Gently remove the bezel from the appliance to reveal the disk drives.

3. Locate the disk drive carrier that contains the failed disk drive.

4. Push the maroon button to release the latch handle.

5. Carefully pull the latch handle forward.

6. Pull the handle to slide the disk drive from its slot.

7. Slide the new drive into the empty slot. When the drive is fully inserted into the slot, push the latch handle in until it clicks.

Removing and Replacing a Power Supply Unit

Perform the following steps to remove and replace a power supply unit (PSU):

    © 2019 FireEye     23

1. At the rear of the appliance, remove the power cable from the failed PSU.

2. Press the release lever toward the handle in a pinching gesture to unlatch the unit and, while continuing to squeeze, pull out the PSU.

3. Insert the replacement PSU in the slot and slide it in until it clicks into place.

Appendices

Appendix 1: System Specifications

The table below provides the technical specifications for the FireEye NX 2550.

Appendix 2: Product Compliance Information

The following table lists the electromagnetic compatibility (EMC), low voltage directive (LVD), safety, and other regulatory standards met by the FireEye NX appliance.

• All current amendments
