Rack mount the appliance

To install the Intelligent Sandbox Appliance on the four-post 19-inch rack, use the rack-mounting kit. You can use the kit with most industry-standard rack cabinets.

For each mounting rail, use the following steps.
1. At the front of the rack, position the right or left mounting rail on the corresponding side so that the mounting bracket aligns with the rack holes.
  Caution
  Always load the rack from the bottom up. If you are installing multiple appliances, start with the lowest available position.

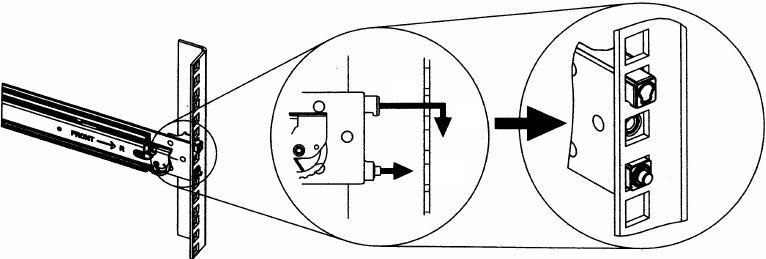

  Figure 11. Slide rail installation
2. At the back of the rack, pull the back mounting-bracket (extending the mounting rail) so that it aligns with the rack holes.
  On each side of the rack, ensure that the mounting rails are the same level.

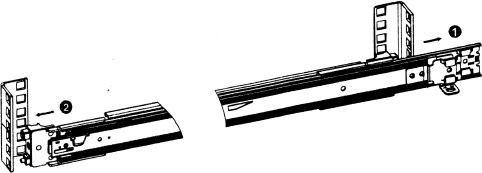

  Figure 12. Install rail to rack
3. Clip the rail to the rack and secure it with the tie wraps.
Slide both rails so they are fully extended.

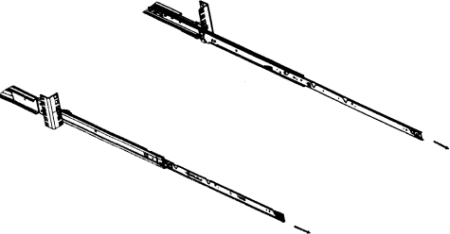

Figure 13. Full extend slide
With help from another person, lift the Intelligent Sandbox Appliance and install the chassis to the rail on both the sides.
Drop in the rear spool first, then the middle, then the front.

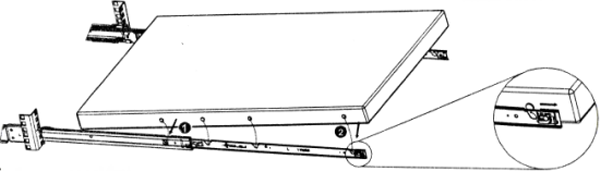

Figure 14. Install the Appliance to rail

Caution
At least two people are required to lift and attach the Intelligent Sandbox Appliance to the rack.
If required, attach the lockable bezel to protect the front panel.
Lift the release tab and push the Intelligent Sandbox Appliance into the rack.

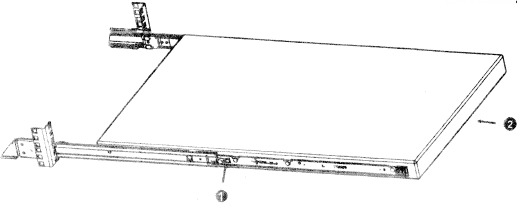

Figure 15. Lift release tab and push Appliance into rack

To remove the Intelligent Sandbox Appliance from the rack, lift the release tab next to the chassis front spool, then lift it out of the rails.
