Use the Sensors page to view information about managed appliances.
.png "CM_AppliancesPage_scap.PNG")
For information about tasks you can perform, see:
See Appliance Information for a description of the fields on the page.
Note
The Create HA Pair link is used to create a Network Security high availability (HA) pair. For details, see the Network Security High Availability Guide.
Click the Appliances tab. The Sensors tab should be selected.
By default, appliances in all groups are displayed. To filter by appliance group, select a group in the Sensor Group list.
By default, ten appliances are displayed on each page. To show all appliances on one page, click Show All. To return to the paginated view, click paginate.

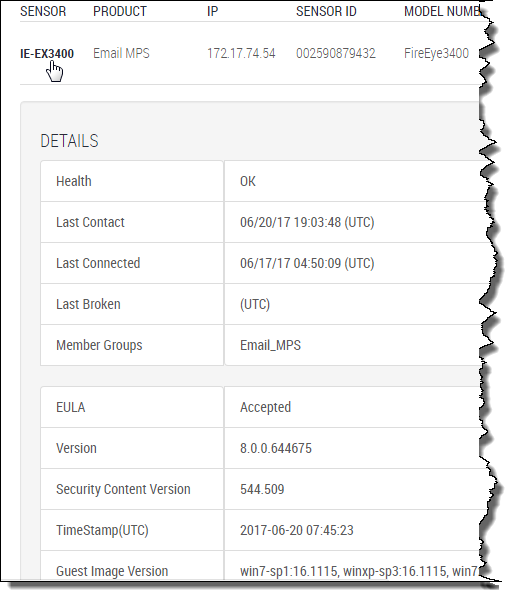

To view detailed information about an appliance, click the appliance name in the Sensor column.
.png "CM_ApplianceDetail_scap.PNG")
To determine how the connection between the Central Management System appliance and the managed appliance was initiated, rest your cursor over the icon in the Connection column. If the Central Management System appliance initiated the connection, server-initiated is displayed. If the appliance initiated the connection, client-initiated is displayed.
.png "CM_ConnectionTooltip_scap.png")
