You can view overall status information about system health and appliance performance check results.
Admin, Operator, Monitor, or Analyst access
Viewing system health and performance check results using the Web UI

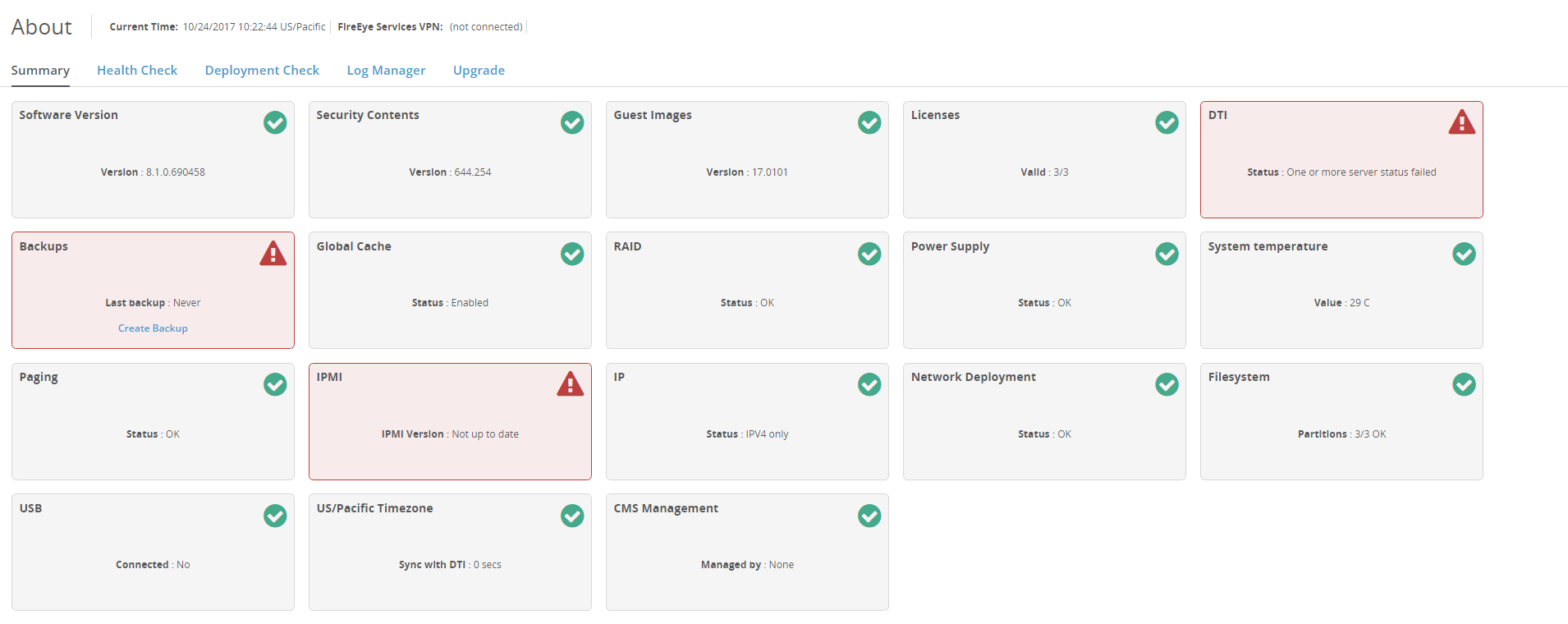

Use the About > Summary page to view overall status information about the appliance components. The Summary page panels display a summary view of appliance health, appliance performance, and status.
Note

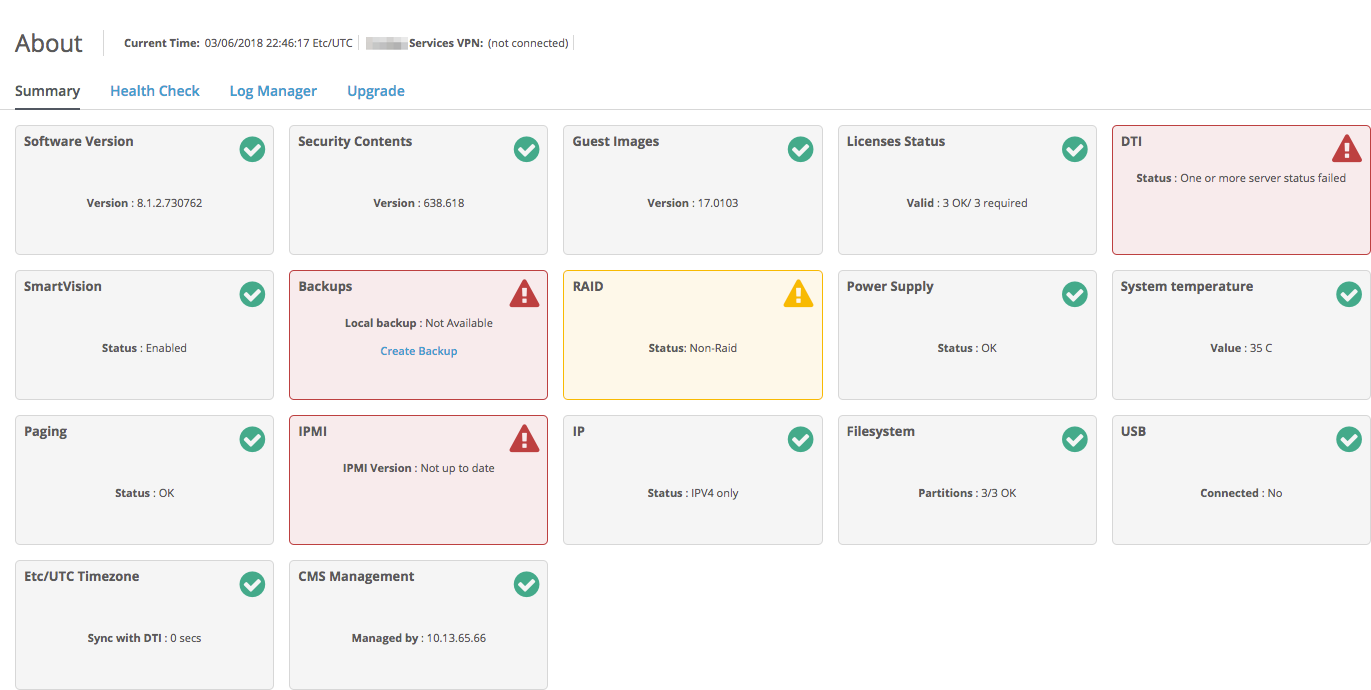

This example is from a SmartVision Edition sensor (which is a Network Security hardware or virtual appliance with a SmartVision Edition FIREEYE_APPLIANCE license), but it is representative of other Trellix appliances as well.
.png)
.png)
The color of a display panel indicates the status of each appliance component:
Color | Description |
|---|---|
Gray | A gray panel indicates the appliance component is in good condition. |
Yellow | A yellow panel indicates the appliance component is in warning condition. |
Red | A red panel indicates the appliance component is in critical condition. |
The following table describes each display panel on the Summary page.
Panel | Description |
|---|---|
Software Version | Compares the software version running on the system to the available software on the DTI network. A red panel indicates that your appliance is not running the current software version. To upgrade the software image, click Upgrade. The Web UI displays the About > Upgrade page, where you can upgrade to the latest software image. |
Security Contents | Compares the security content version on the appliance to the available version on the DTI network and displays the status and the version that is currently installed. A red panel indicates that security content is outdated. To upgrade security content, click Upgrade. The Web UI displays the About > Upgrade page, where you can upgrade security content. |
Sensor Enrollment | Displays the enrollment status for a sensor that is enrolled with an MVX cluster. |
Guest Images | Compares the guest images version on the appliance to the available version on the DTI network. A red panel indicates that a newer version exists. |
Licenses | Displays the number of installed licenses that are valid and active. A red panel indicates that licenses have expired. A yellow panel indicates that licenses will expire within 30 days. |
DTI | Displays whether the appliance can receive security content updates from and upload analysis statistics to the DTI network. A red panel indicates that services are not reachable. |
SmartVision | Shows whether SmartVision is active on the appliance. SmartVision can detect the lateral movement of malware. A SmartVision appliance is any one of the following:
|
Backups | Displays the status of the last backup operation. A red panel indicates that the last backup operation failed or data has never been backed up on the appliance. To back up the database, click Create Backup. The Web UI displays the Settings > Appliance Backup & Restore page, where you can back up the database. |
Global Cache | Displays whether the global cache is enabled on the system. |
RAID | Displays the overall status of RAID. An error message appears if a RAID error has occurred. A yellow panel indicates that a non-RAID disk was detected. |
Power Supply | Displays the overall status of the power supply. A red panel indicates that the power supply is in critical condition. |
System Temperature | Displays the current temperature and unit of measurement on the system. A red panel indicates that the temperature is below or exceeded a system-defined threshold. |
Paging | Displays whether the system has started the paging activity. A yellow panel indicates that the paging activity is in progress. |
IPMI | Compares the IPMI firmware version running on the system to the available version on the DTI network. A red panel indicates that a newer version exists. |
IP | Displays IPv4, IPv6, or both. |
Network Deployment | Displays the status of network information that might indicate appliance deployment problems. A red panel indicates that a network deployment problem was found. |
Filesystem | Displays the status of the number of partitions that have free space. A yellow panel indicates that the amount of free space in one of the partitions dropped below 10 percent. |
USB | Displays whether a USB device is connected to the appliance. |
Timezone | Displays the time zone for your appliance. The Timezone panel also displays the number of seconds since the appliance was synchronized with the DTI server. |
CMS Management | Displays the status of whether an appliance is managed by the Central Management System appliance. |
Click the About tab.
Click Summary.
