Process Guard Module Home Page‌

Prev Next

The Process Guard Module home page allows administrators to view/delete events generated by Process Guard Module.

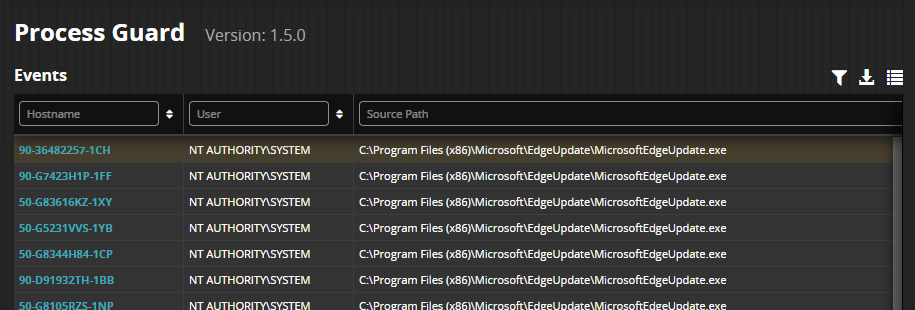

Process Guard Home Page on Endpoint Security Server


The home page contains default columns that can be modified to suit your needs. Standard features such as exporting the grid data to CSV format and creating private or public filters are supported. Selecting an event opens a side card with all the event details.

Event Data

Description

Hostname

Host name of the machine. Click this hyperlink to open a host page.

User

Username of logged in user account.

First Seen

Timestamp of an event seen for the first time after the Process Guard Module installation.

Last Seen

Most recent timestamp of the same event.

Agent ID

The unique ID of the agent installed on the host.

Source Path

The fully qualified path of the executable file associated with the process that caused the threat.

Source MD5

The MD5 hash of the source process file.

Source PID

The process ID of source process.

Command Line

The command arguments supplied to the process when it executed.

Action Taken

Action, blocked or detected, taken by the endpoint.

Occurrence Count

Total count of repeated attempts.

Process Cert

Source process digital signature details.

Signature Verified

Source process digital certificate verification status.

Is Signed

Whether a signature exists for the file associated to the process.

Source Parent Path

The fully qualified path of the file associated with the parent process of the source process being executed.

Parent PID

Process ID of the parent process.

Target Path

The absolute file path of the process protected by Process Guard.

Target PID

Target Process ID.

Enrichment Status

FireEye Intelligence verification on the source process.
