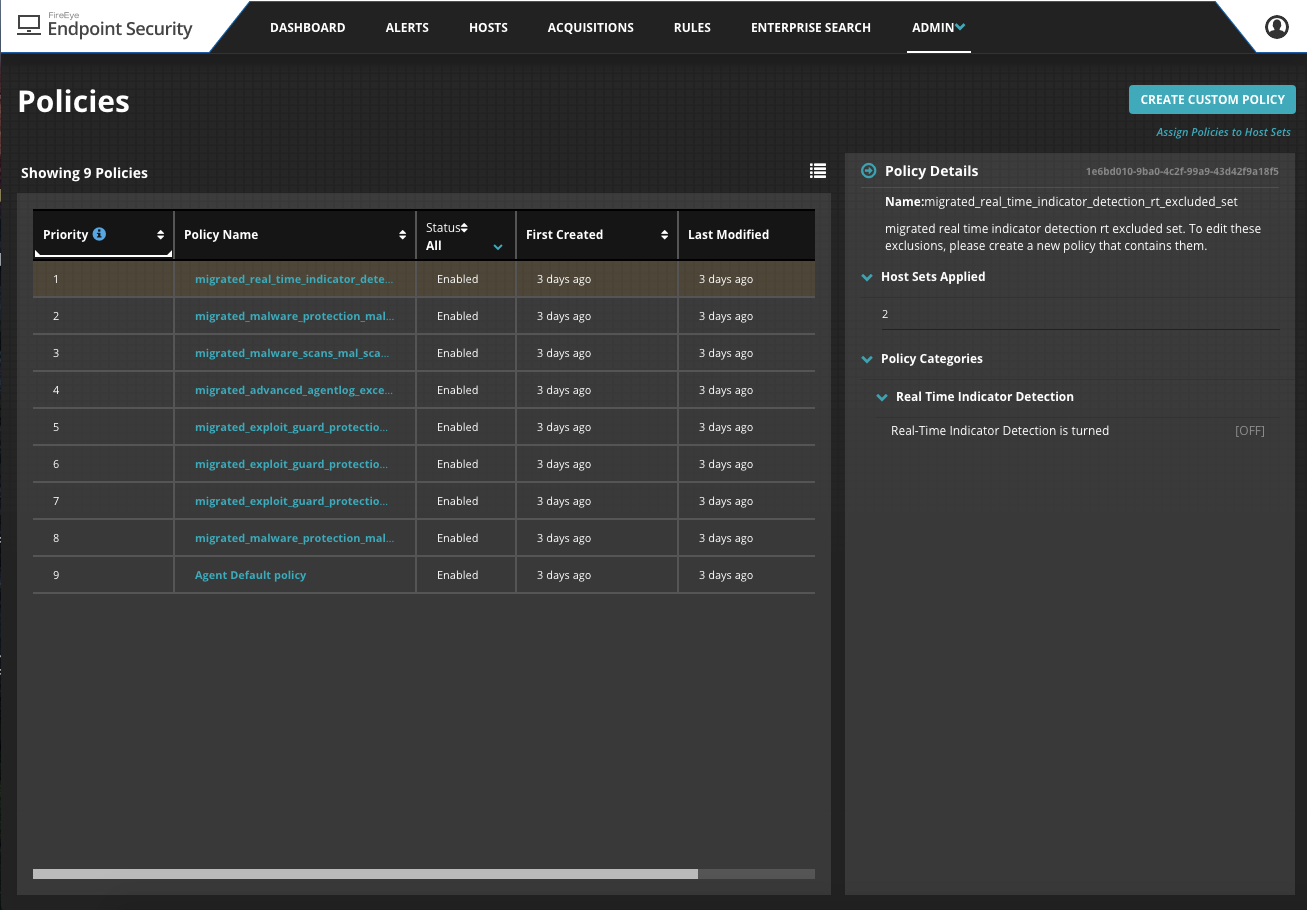

The Endpoint Security (HX) Server Web UI Policies page allows you to create and manage all of your xAgent policies directly from the Policies table. This table provides a list of all of the policies you created using the Web UI and the API, including custom policies, migrated exclusion and exception policies, and the xAgent Default Policy.
The Policies page also includes a Policy Details panel, which provides more information about each listed policy. See Policy Details for more information.
.png)
Policies table

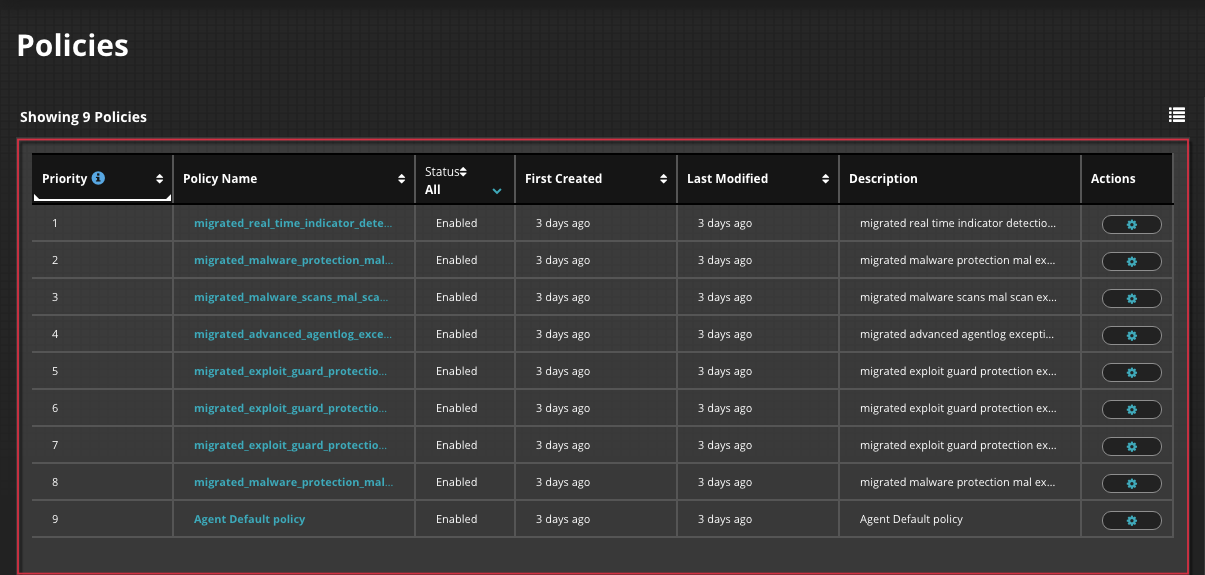

The policies table allows you to view specific information about all of your xAgent policies, including the policy priority level, policy name, status, creation and last modified time frame, and policy description. Each row in the Policies table also provides access to specific actions you can perform, including editing, disabling, and deleting a policy.
.png)
Managing the policies table view
You can use table filters to manage the policy information and functions you want to make available to view in the Policies table and the information you want to hide.
Log in to the Web UI as an administrator.
From the Admin menu, select Policies to access the Policies page.

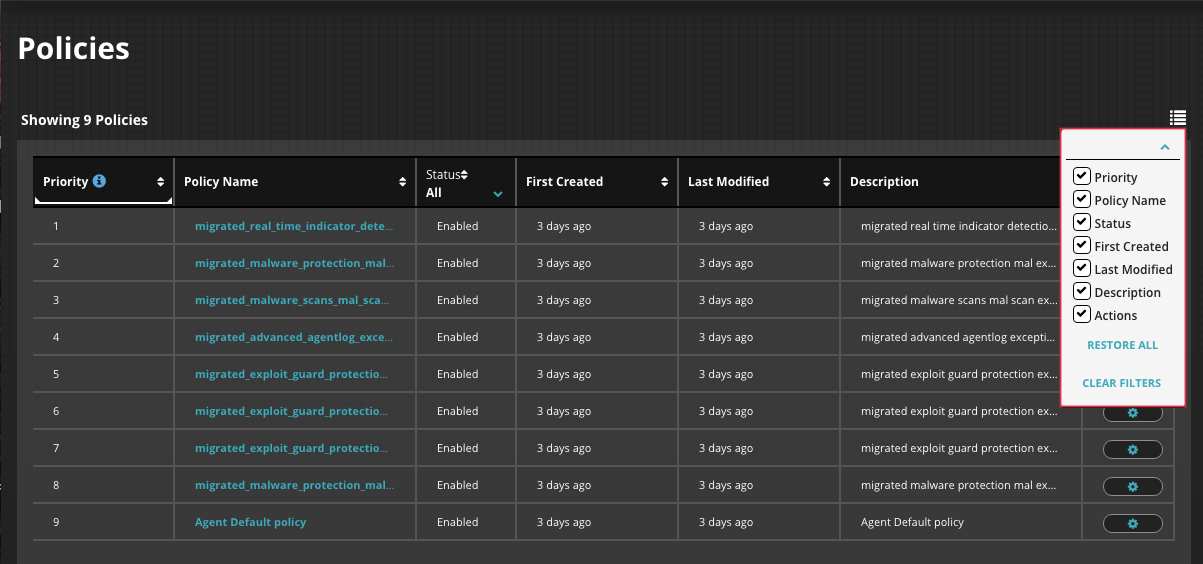

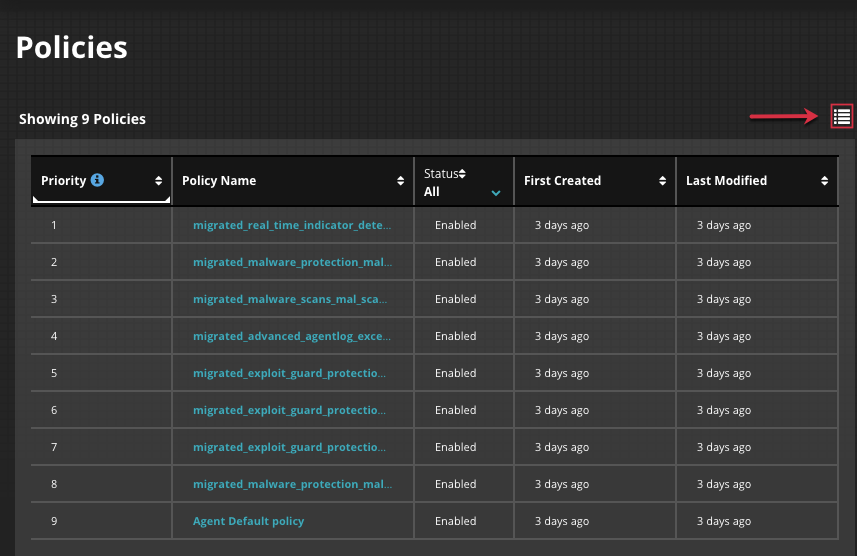

Click the Filter menu to access the table filters.
.png)
Select the filter checkbox next to the information you want to view or deselect the filter checkbox next to the information you want to hide.
.png)
.png)
Accessing a policy from the policies table

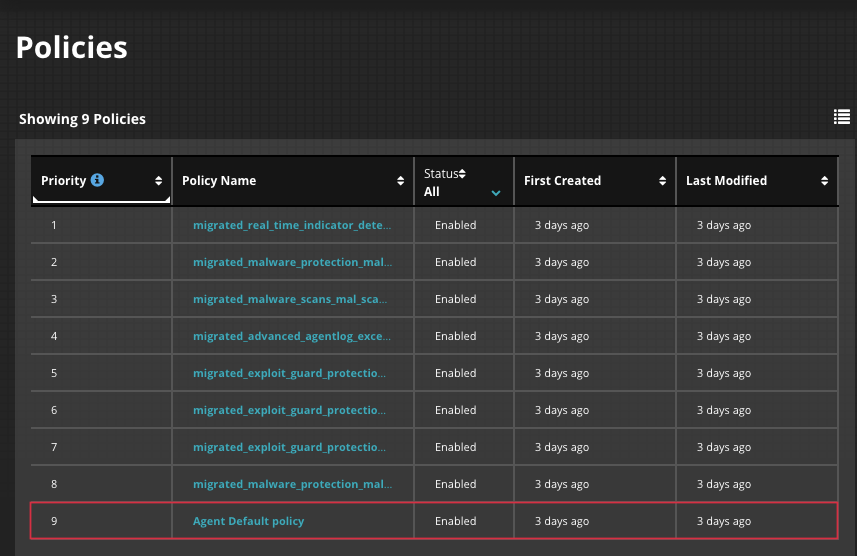

The Policies table provides a link for each policy in the Policy Name column that allows you to link directly to your xAgent Default Policy, your migrated exclusion policies, and any custom policies your created for xAgent s running on your host sets.
Log in to the Web UI as an administrator.
From the Admin menu, select Policies to access the Policies page.
From the Policy table, select the policy you want to access.
.png)
Click the policy link in the Policy Name column to access the Edit Policy page.
Policy details
The Policy Details panel provides a detailed summary for each policy listed on the Policies page. You can access the Policy Details panel from the Policies page or from the Assign Policies to Host sets page. Each page allows you to view the policy details from a different perspective.

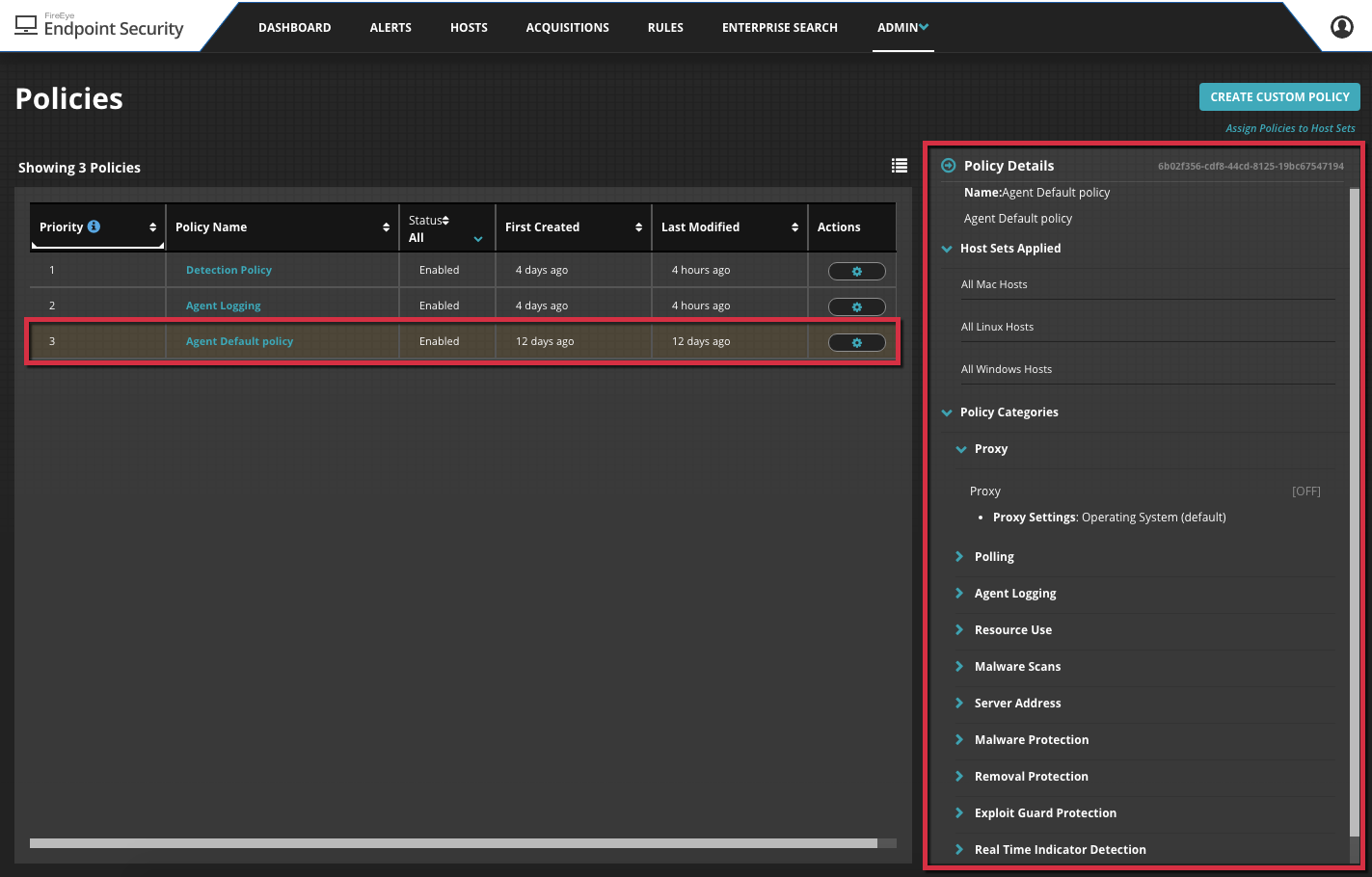

When you access the Policy Details panel directly from the Policies page, you can view details about a policy independent of any other policy. The policy summary contains the following information: a unique policy ID, policy name, policy description if provided, assigned host sets, policy categories, and configuration settings for each policy category assigned to the policy.
.png)
When you access the Policy Details panel from the Assign Policies to Host Sets page, you will see details about the Composite Policy, which is a simulated view of all the xAgent policies assigned to the selected host set and how configuration settings from each policy category are applied. This view allows you to see exactly how multiple policy assignments and the settings from each assigned policy define the configuration for xAgent s running on your host sets.
The Policy Categories section allows you to drill down into each policy category that comprises the Composite Policy. Use this section to identify the default policy settings, custom policy settings, and migrated policy settings that define the composite policy.

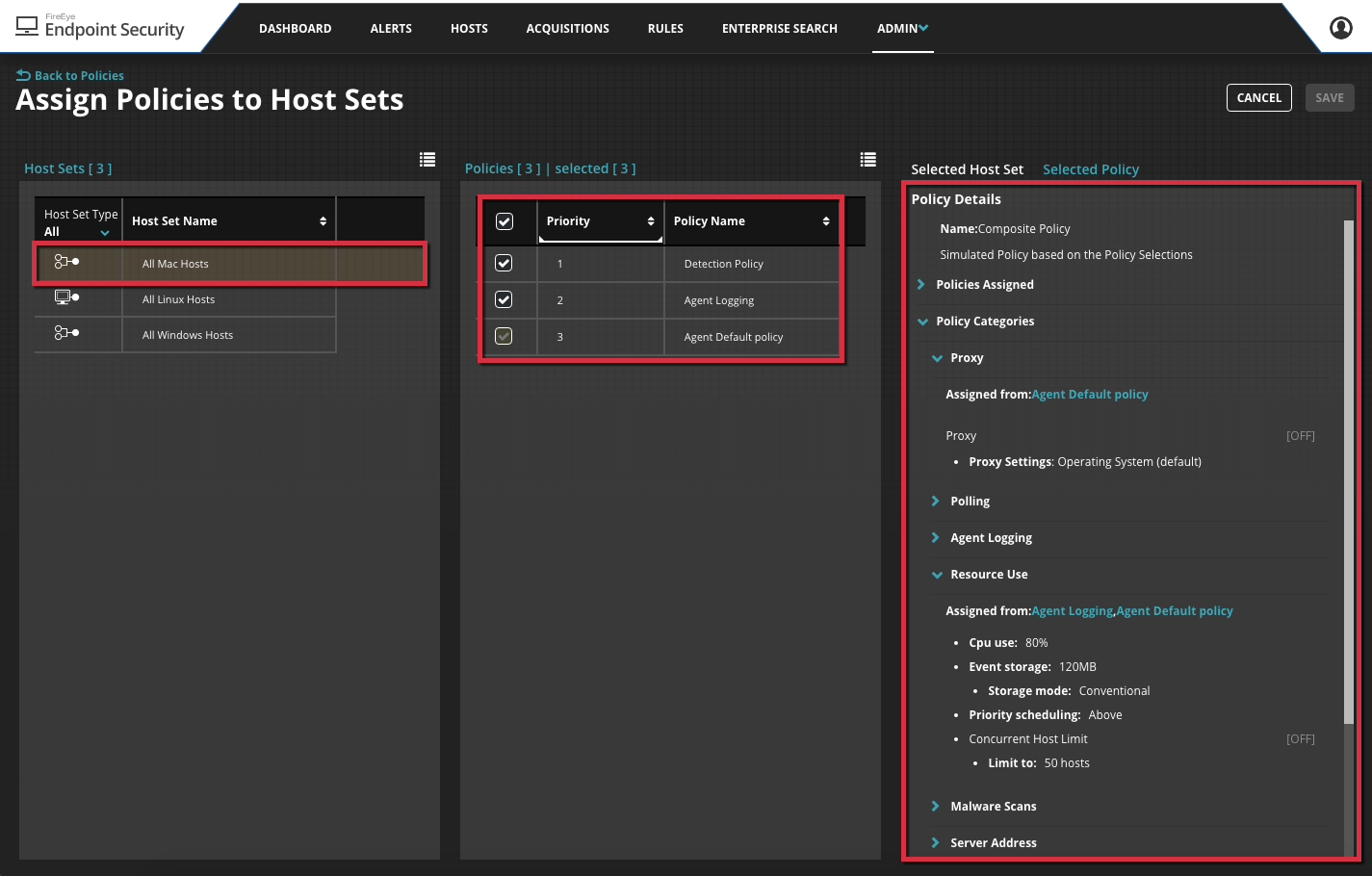

The example below summarizes the Composite Policy for All macOS Hosts. This host set has the default policy, the xAgent Logging policy, and the Detection policy assigned to it. In this view, you can see that the proxy policy is defined by the xAgent default policy while the Resource Use policy is defined by the xAgent Logging policy and the default policy.
.png)
Reviewing policy details
This section covers how to review policy details in the Web UI from the Policies page and the Assign Policies to Host Set page.
Log in to the Web UI as an administrator.
From the Admin menu, select Policies to access the Policies page.
From the Policies table, select the row for the policy you want to review.
From the Policy Details panel, review information about the policy you selected.
.png)
You can also review policy details from the Assign Policies to Host Sets page.
Log in to the Web UI as an administrator.
From the Admin menu, select Policies to access the Policies page.
From the Policies page, click the Assign Policies to Host Sets link.

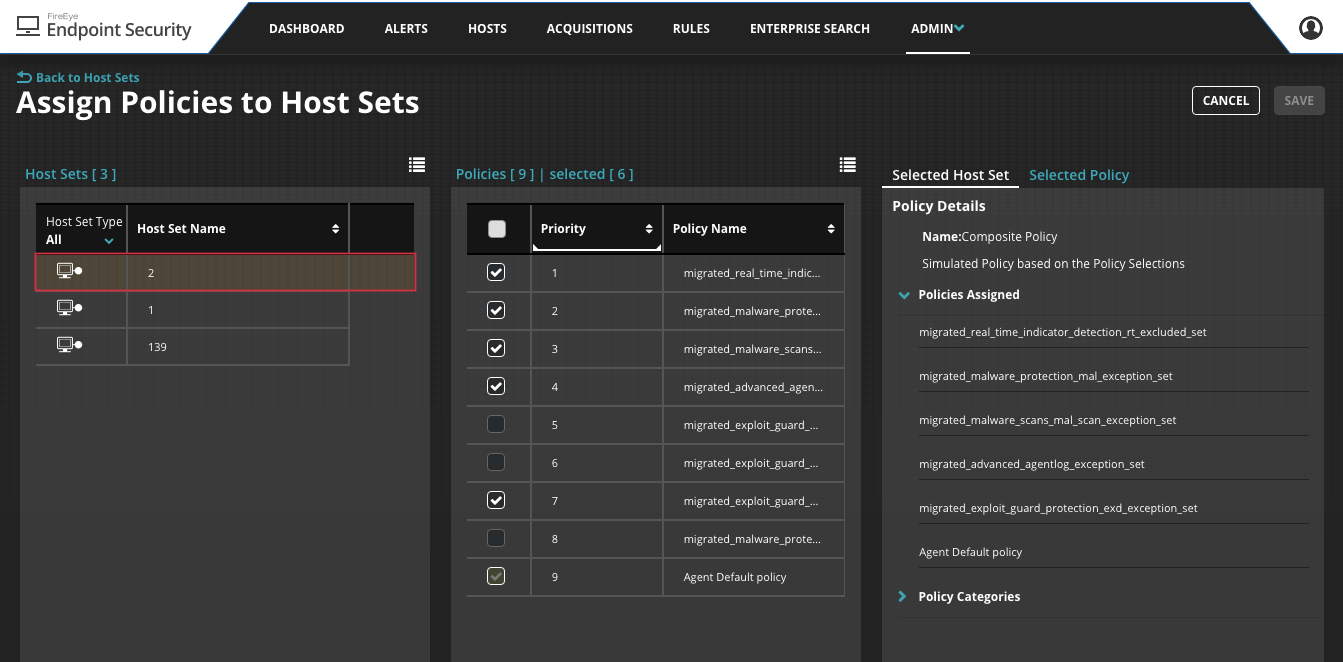

From the Host Sets table, select a host set. The Policies table will display a list of all of your xAgent policies and show which policies are assigned to the selected host set.
.png)

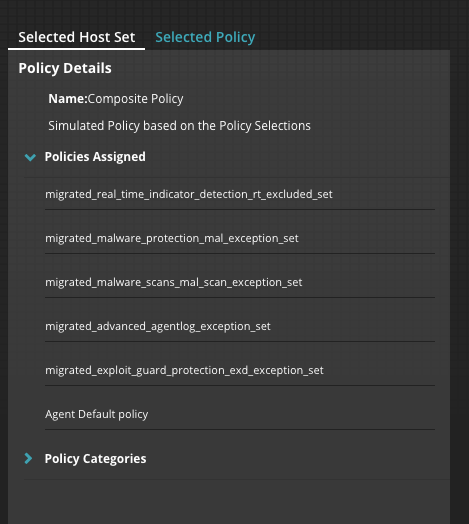

Select the Selected Host Set tab to view details for each policy category assigned to the selected host set.
You can also reach this view by going to the Admin menu, selecting Host Sets, and clicking the Assign Policies to Host Sets link.
