Viewing software upgrade job status

Use the Software Update page to view the status for each NDR and PX appliance upgrade job by accessing the All Appliances tab.

Upgrade Details	Description
Appliance Name	The NDR or PX appliance name.
Appliance Type	Indicates whether the appliance is an NDR (Master, director, or data node) appliance or a PX appliance.
Link Status	Provides the link status between all configured NDR and PX appliances. UP (Green)— All of the appliances in the configuration are connected. DOWN (Red)—One or more appliances in the configuration are not connected. Hover over the indicator to obtain more information about the failure.
Update Status	Whether the upgrade job is in progress, complete, or failed. Hover over the status indicator to obtain more information about the upgrade job, including the software version and any reason for the failure.
Current Software Ver.	Indicates the current software version on the NDR or PX appliance.
Last Update	Timestamp of the last recorded software update.
Uploaded Images	Stored software images on the appliance.
Group	All appliance groups to which the NDR or PX appliance is assigned.

To view the upgrade job status for all NDR and PX appliances:

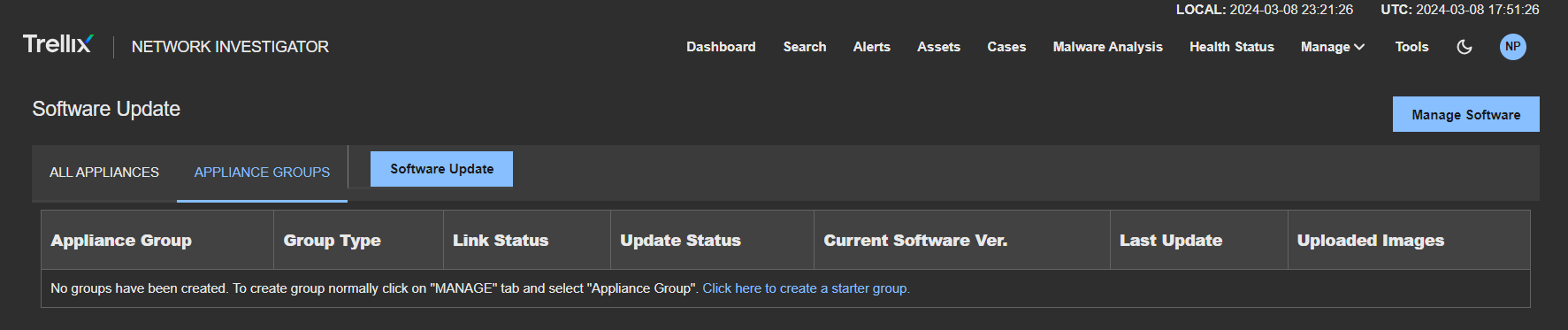

To view the upgrade job status for all NDR and PX appliance groups:
