Migration overview

You can migrate Trellix Drive Encryption 8.0.x to Trellix Drive Encryption - SaaS, which is managed by Trellix ePolicy Orchestrator - SaaS. There is no automatic upgrade path to move from Trellix Drive Encryption On-prem to Trellix Drive Encryption - SaaS.

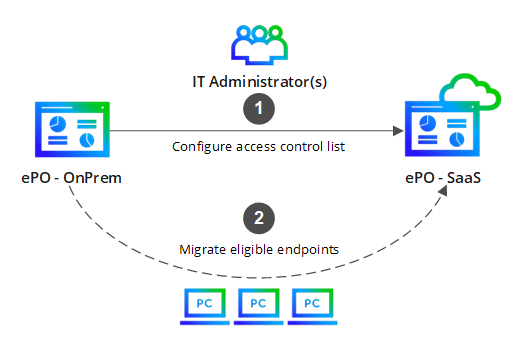

To migrate, you must configure the access control list and migrate the eligible endpoints to Trellix ePolicy Orchestrator - SaaS. You need to use the Trellix ePO - SaaS migration wizard in the Trellix ePO - On-prem console. Eligible endpoints are filtered based on predefined migration criteria to ensure only the appropriate devices are migrated.

The migration of Drive Encryption from Trellix ePO - On-prem to Trellix ePO - SaaS is done only for Unified Extensible Firmware Interface (UEFI) systems. After the migration, it includes both the encryption software on the client devices and the management components on the servers.

To know more about the options not available in this release, see article 000014093.

Bulk key migration

(Optional) This server task facilitates the migration of all keys, including legacy machine keys, irrespective of the system's migration status. This is useful if there are plans to decommission the Trellix ePO - On-prem server. By bulk migrating all key material, system recovery is still possible through DETech by exporting recovery information using the KeyCheck value.

All machine keys are encrypted with the Trellix ePO - SaaS tenant's public key before migration and then sent to Trellix ePO - SaaS over the Internet.

Make sure the following prerequisites are met before migrating the machine keys.

• The Trellix ePO - SaaS migration and Cloud Bridge extensions are installed and linked to a Trellix ePO - SaaS tenant.

• Drive Encryption service URLs are allowed through the firewall.

• The remote command for the Drive Encryption service URL is successfully executed.

Run key migration Server Task manually

To migrate the machine keys to Trellix ePO - SaaS, follow these steps.

Task

1. On the Trellix ePO - On-prem console, select Menu → Automation → Server Tasks.

2. Select TDE: Migrate All Drive Encryption Machine Keys to ePO SaaS and click Run.

Trellix Drive Encryption machine keys successfully migrated to Trellix ePO - SaaS.

Schedule key migration Server Task

To schedule the migration of machine keys, follow these steps.

1. On the Server Tasks page, edit TDE: Migrate All Drive Encryption Machine Keys to ePO SaaS.

2. On the Description tab, Enable schedule status, then click Next.

3. On the Actions tab, no configuration is required if the prerequisites are met. Click Next.
           For more information about prerequisites, see Bulk Key Migration.

4. On the Schedule tab, configure the Start date and End date, then click Next.

5. On the Summary tab, review the configuration, then click Save.

By default, it runs every 12 hours, which is recommended as it uses system resources to preprocess the keys for migration.

Task logs

When the Server Task runs, either manually or on a schedule, logs are available in the Menu → Automation → Server Task Log. To view the progress, click on 'TDE: Migrate All Drive Encryption Machine Keys to ePO SaaS'.

Drive Encryption assigns remaining user assignments from Trellix ePO - On-prem

The client will dynamically request any remaining user assignments to be completed. Issues encountered at this stage can be identified through the built-in reporting capabilities. Once the issues are resolved, a retry action can be initiated. The migration will not be completed unless all user assignments are successfully preserved.

Note

The last 100 days of audit events for the system are also migrated, allowing for continuous tracking and monitoring without losing important data.

System requirements for migration

To successfully migrate your systems to Trellix Drive Encryption - SaaS, it is important that you review the migration criteria.

The Drive Encryption software supports UEFI-based tablets and uses a Trellix ePO - SaaS tablet test tool to verify if the pre-boot environment responds to the tablet’s touch interface. For more information about this tool, see KB78050.

Necessary steps for migration

Check in the Trellix ePO - SaaS extensions

The extensions ePO - SaaS Migration and Trellix ePO SaaS Cloud Bridge must be checked in to enable the migration of Drive Encryption to Trellix ePO - SaaS.

Eligibility criteria for systems migration

Within the migration wizard, systems are filtered based on their eligibility for migration to Trellix Drive Encryption - SaaS. The following criteria are used to determine eligibility.

• Systems with assigned users who have Smartcard authentication set in the User-Based Policy (UBP) are not eligible for migration.

• Systems that have UBP Policy Assignment Rules (PARs) assigned to users are not eligible for migration. To remediate this, consider consolidating all UBPs into the default system-assigned UBP.

• Only systems running the Drive Encryption 8.0 client version are considered eligible for the migration process.

During the migration, all assigned policies for the system are transferred to Trellix ePO - SaaS, ensuring that configurations and rules are preserved. Additionally, all cryptographic keys associated with the system and are migrated.

Important

Systems assigned with User Directory users cannot migrate to Trellix ePO - SaaS. Currently, there is no automatic detection of this scenario, and administrators must ensure that any User Directory users are removed (or replaced) before migration.

Managing migration failures

In order to monitor the migration of systems and detect any issues with the process, a canned query has been provided that can be monitored from within the Trellix ePO - SaaS console. This canned query reports any systems that have failed the migration process, along with an initial root cause analysis of the failure.

We recommend that this query be routinely checked during migration. Note that the report uses the standard property collection mechanism of Trellix ePO - SaaS, and as such will require systems to perform agent-server communication in order to obtain the most up-to-date properties. For this reason, it is common for reports to show inconsistent lagged data due to an expected lag in property collection.

The possible reasons for migration failure, along with their mitigation, are as follows:

All Trellix ePO - On-prem users are successfully assigned to Trellix ePO - SaaS (the assignments will be done automatically). If the user assignment fails, the administrator must manually trigger the task. To do this, go to the Trellix ePO - On-prem console, select Menu → System Tree → Systems → Actions → Drive Encryption, and select Trigger systems to retry user assignment migration.

Once the user assignment is successful, the policy will be enforced automatically.

Migration Process

Manually create system tree assignments in Trellix ePO - SaaS

You need to manually create system tree assignments when administrators are assigned to a specific branch of the system tree, ensuring that all systems under that branch inherit the user assignment. This step requires the configuration of Active Directory (AD) connectors.

Manually assign the Trellix ePO - On‑prem users to the Trellix ePO - SaaS.

Task

1. On the Trellix ePO - On‑prem console, select Menu → Encryption Users → Group Users. Then check the assigned users.

2. On the Trellix ePO - SaaS console, select Menu → System Tree. Then navigate to DE Group Assignments.

   Starting from the 'My Organization' level, if any users are assigned in Trellix ePO - On‑prem, manually assign those users in the Trellix ePO - SaaS console.

Repeat this process down the subtree you intend to migrate.

Note

AD group/OU assignment is not currently supported in Trellix ePO - SaaS. If Trellix ePO - On‑prem is using AD groups/OUs, assign users within that group/OU, individually.

Preparing for the Migration process

• Trellix ePO - On‑prem extensions and endpoints are upgraded to Drive Encryption 8.0.x.

• Check in the Trellix ePO - SaaS extensions. For more information, see Necessary steps for migration.

• Configure the Ports and URLs needed for Trellix Drive Encryption - SaaS communication through a firewall. For more information, see 000014111.

• Trellix ePO - On‑prem is connected to the Trellix ePO - SaaS.

• Active Directory servers need to be configured in Trellix ePO - SaaS.

• Link to Trellix ePO - SaaS Account.

  • On the Trellix ePO - On‑prem console, select ePO - SaaS migration, then navigate to Configure ePO - SaaS Account.

  • Enter the username and password, then click Link to ePO - SaaS Account.

    ---

• Link the cloud tenant in Trellix ePO - SaaS CloudBridge. For more information, see Configure Trellix ePO - SaaS Cloud Bridge.

Migrate to Trellix Drive Encryption - SaaS

Task

1. On the Trellix ePO - On-prem console, select Menu → Systems → ePO - SaaS Migration.

2. Configure ePO - SaaS Account.

   1. The Trellix ePO - SaaS credentials are already linked to the ePO - SaaS account.

3. Once the linking is done, select Clone configuration to ePO - SaaS.

   1. The screen displays the number of compatible systems that can be migrated to Trellix ePO - SaaS. The systems must meet the migration criteria.

   Note

   For a complete list of compatible products with Trellix ePO - SaaS, see KB90875.

   1. To customize the Trellix ePO - SaaS migration requirements, select Settings in the top-right corner, choose the options that need to be migrated and click Save.

   2. Click Clone to ePO - SaaS.

4. Migrate Active Directory configurations to ePO - SaaS.

   Note

   If you have already configured the same Active Directory on Trellix ePO - SaaS, you can skip this step.

   1. Select the systems to start Active Directory configurations migration.

   2. Click Migrate AD configuration.

5. Migrate compatible systems to ePO - SaaS.

   1. Select a group to migrate.

   2. Click Migrate one group.

Drive Encryption is successfully migrated to Trellix ePO - SaaS.
