Endpoint Security Anti-Malware Scan Reports Module User Guide Release 1.0.0

  • Published on Sep 11, 2026
  • 6 minute(s) read
Prev Next

Endpoint Security Anti-Malware Scan Reports Module User Guide Release 1.0.0

Last Updated: September 17, 2023



Large decorative graphic of blue-green dashed wave pattern across the lower page with the Trellix wordmark logo at the bottom-right

Contents

Module Overview .............................................................. 3

Supported Platforms .......................................................... 3

Installing the Anti-Malware Scan Reports Module ..................................... 4

Installing the Anti-Malware Scan Reports Server Module .............................. 4

Uninstalling the Anti-Malware Scan Reports Module ................................. 5

Uninstalling the Anti-Malware Scan Reports Module Completely ........................ 5

Configuring the Anti-Malware Scan Reports Module ................................. 6

Enabling the Anti-Malware Scan Reports Module .................................. 6

Verifying Installation ..................................................... 6

Disabling the Anti-Malware Scan Reports Module .................................. 6

Anti-Malware Scan Reports Home Page .......................................... 7

Reports ..................................................................... 7

Generating Reports ........................................................ 7

1 | Module Overview

Module Overview

The Anti-Malware Scan Reports Module for Trellix Endpoint Security generates scan summary reports for Malware Protection. Use of the Anti-Malware Scan Reports Module is restricted to Endpoint Security administrators and investigator roles.

The Anti-Malware Scan Reports is a server-only feature and does not require any agent functionality to be installed.

Supported Platforms

This release of Anti-Malware Scan Reports 1.0.0 is supported on Endpoint Security 5.1 with Endpoint Security Agent 30.x running on Windows 7 and Windows Server 2012 or later.

For macOS X 10.12 and later, Endpoint Security Agent 32.x is required.




Note




Installing the Anti-Malware Scan Reports Module 1.0.0 on Endpoint Security 5.0.4 or earlier, is not supported.

2 | Module Overview

Installing the Anti-Malware Scan Reports Module

You can install the Anti-Malware Scan Reports Module using the Endpoint Security Web UI or download the CMS package from the FireEye Market.

The Anti-Malware Scan Reports Module is a server-only module.

Installing the Anti-Malware Scan Reports Server Module

Select one of the following options to install the module:


  • To install the Anti-Malware Scan Reports Module using the Endpoint Security Web UI:

    • Log in to the Endpoint Security Web UI as an administrator.
      •
    • From the Modules menu, select Endpoint Module Administration.
      •
    • Click the Available Modules tab and locate Anti-Malware Scan Reports in the Module list.
      •
    • In the Actions column, click the gear icon, and click Install.
      •
    • Click Install on the dialog box.
      •

    •
  • To download the module installer CMS package, go to the FireEye Market, then upload the module CMS file to your Endpoint Security Web UI. The module is disabled by default. When the module is installed successfully, it appears on the Modules menu tab.



Note




You may need to refresh the Endpoint Security Web UI before the new module appears on the Modules page.

To enable the Anti-Malware Scan Reports, see Enabling the Anti-Malware Scan Reports Module.

3 | Module Overview

Uninstalling the Anti-Malware Scan Reports Module

Uninstalling the Anti-Malware Scan Reports Module removes the server module from the management server. You do not need to disable Anti-Malware Scan Reports before you uninstall it.

Uninstalling the Anti-Malware Scan Reports Module Completely

To uninstall the Anti-Malware Scan Reports Module using the Endpoint Security Web UI, complete the following steps:


  1. Log in to the Endpoint Security Web UI as an administrator.
    2.
  2. From the Modules menu, select Endpoint Module Administration.
    3.
  3. Click the Installed Modules tab and locate Anti-Malware Scan Reports in the Module list.
    4.
  4. On the Modules page, locate the Anti-Malware Scan Reports module and click the Actions icon.
    5.
  5. Select Uninstall and click Uninstall in the confirmation window.

A message at the top of the page tells you that module uninstallation succeeded.

Endpoint Security Anti-Malware Scan Reports Module User Guide Release 1.0.05

4 | Module Overview

Configuring the Anti-Malware Scan Reports Module

The Anti-Malware Scan Reports Module consists of a server-only module.

Enabling the Anti-Malware Scan Reports Module


  1. Log in to the Endpoint Security Web UI.
    2.
  2. From the Modules menu, select Endpoint Module Administration.
    3.
  3. On the Modules page, click Installed Modules.
    4.
  4. Locate the Anti-Malware Scan Reports module in the list.
    5.
  5. In the Actions column, click the gear icon, and select Enable.

Verifying Installation

After you install and enable the Anti-Malware Scan Reports Module, it will appear on the Installed Modules tab in the Endpoint Module Administration Home Page.

The log file for the server module installation is stored on the server in /var/log/supervisor/anti-malware-scan-reports-server_0.7.0_<random_id>.log

Disabling the Anti-Malware Scan Reports Module


  1. Log in to the Endpoint Security Web UI as an administrator.
    2.
  2. From the Modules tab, select Endpoint Module Administration.
    3.
  3. On the Modules page, click Installed Modules.
    4.
  4. Locate the Anti-Malware Scan Reports module in the list.
    5.
  5. In the Actions column, click the gear icon, and select Disable.

5 | Module Overview

Anti-Malware Scan Reports Home Page

The Anti-Malware Scan Reports Module uses scan summaries generated by a scheduled scan to generate custom reports. The Endpoint Security Agents automatically send the scan summaries to the Endpoint Security Server.

To access the Anti-Malware Scan Reports home page:


  1. Log in to the Endpoint Security Web UI.
    2.
  2. From the Modules menu, select Anti-Malware Scan Reports.

Reports

The Anti-Malware Scan Reports has three functional areas:


  • Generate Report
    •
  • Running Reports
    •
  • Available Reports

Generating Reports


  1. In the Report name field, type a name for the report.
    2.
  2. In the Date Range field, select an appropriate time range. Choose one of the preset options or use the custom option to define the start time and end time.
    3.
  3. In the Status field, choose one of the following options: All, Completed, or Stopped.
    4.
  4. In the Hostsets field, select a host from the list.
    5.
  5. Click Generate Report. When the report is being generated it appears in the Running Reports section. When it has been processed, it appears in the Available Reports section.

5 | Module Overview

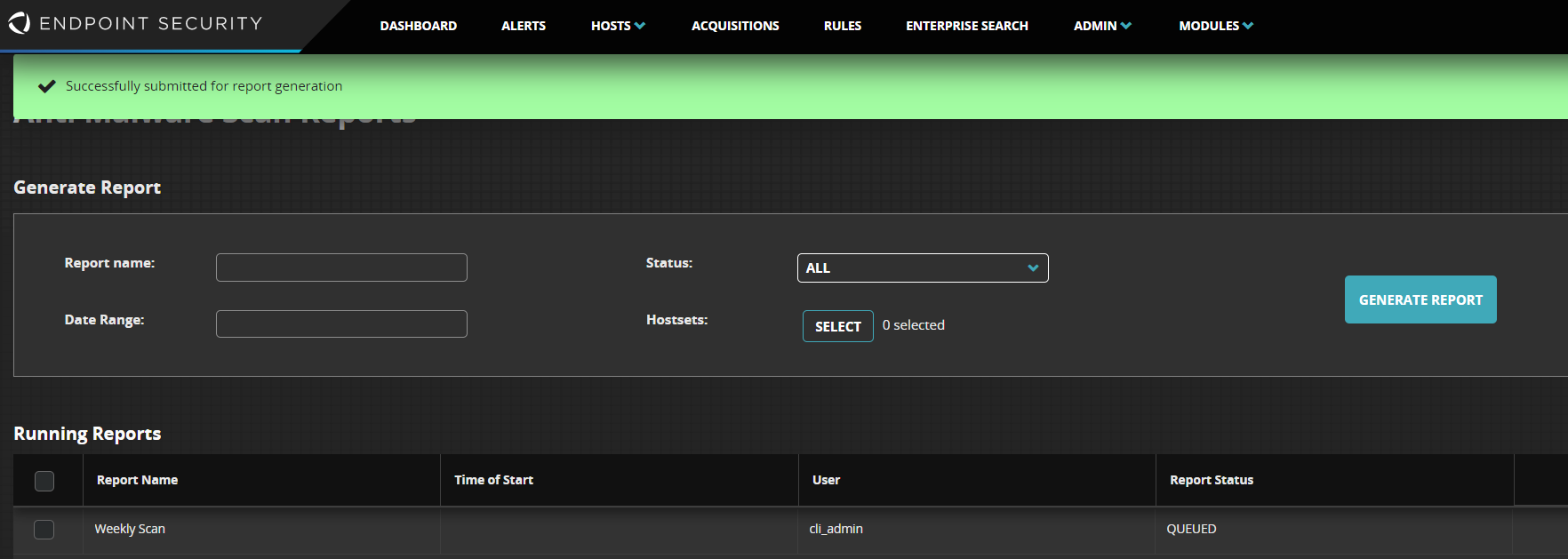

Screenshot of the Endpoint Security Generate Report and Available Reports UI showing the report generation form, Running Reports and Available Reports tables, and download icons

6. To download the report package, in the Available Reports area, click the Download Report icon. The zipped package contains three CSV files.


FilesDescription
scan_summary.csv

Contains over twenty columns of the scan data, including some of the following:



  • Host Name
    •
  • Scan Type
    •
  • Scan Duration
    •
  • Number of Files Scanned
    •

correlated_malware.csvContains details of detected files, detection names, file paths, and file hashes.
missing_agents.csvIdentifies the endpoint agents that did not produce scan summaries based on the scan summary report filters.

7. To delete older reports, select the scan reports and click the Delete icon.
