Endpoint Security Deny List Module User Guide Release 1.2.0

  • Published on Sep 11, 2026
  • 19 minute(s) read
Prev Next

Endpoint Security Deny List Module User Guide Release 1.2.0

Last Updated: September 17, 2023



A large multicolor dashed wave pattern spanning the bottom of the page in green, teal, cyan and blue tones



Trellix logo — black logotype with a small multicolor diagonal accent at the top-right of the wordmark, positioned at the lower-right of the page

Contents

Module Overview    3

Supported Platforms    3

Installing the Deny List Module    4

Installing the Deny List Module on the Server    4

Verifying the Installation    5

Uninstalling the Deny List Module    6

Configuring the Deny List Module    7

Enabling the Deny List Server Module    7

Disabling the Deny List Server Module    7

Configuring the Deny List Server Settings    7

Configuring the Deny List Policy    8

Using the Deny List Module    10

Creating a CSV File    10

Uploading a CSV file    11

Importing File Hashes From Third-Party Feed    12

Configuration API    15

1 | Module Overview

Module Overview

The Deny List module enables FireEye Endpoint administrators to alert, block or quarantine files based on hash or a file path list.

With this module, FireEye Endpoint administrators can:


  • Upload file hashes or file paths.
    •
  • Import file hash intel from a third-party Intel feed.
    •
  • Select the action required to be taken on the files if they are detected on an endpoint.

Deny List alerts appear on the FireEye Endpoint Security Alert view, like other module alerts.

Supported Platforms

The release of Deny List 1.2.0 Module is supported on Endpoint Security 5.0.4 and Agent version 32.x and later on Windows operating systems. Mac OSX and Linux platforms are not supported at this time.




Blue pencil-in-square note icon



Note




  • Installing the Deny List on Endpoint Security 5.0.3 or lower is not a supported scenario.
    •
  • The usage of the Deny List module is independent of Malware Protection, Malware Guard or quarantine being enabled on the endpoint.
    •
  • For certain Windows protected folders, quarantine might require a reboot
    •
  • Ensure that you add adequate exclusion to Antivirus settings if you are using any other Antivirus products.
    •


Endpoint Security Deny List Module User Guide Release 1.2.0



3

2 | Module Overview

Installing the Deny List Module

Deny List is an optional (non-core) module available for Endpoint Security 5.0.4 and Agent version 32.x. The module installer package .cms file is downloaded from the FireEye Market and then installed on your Endpoint Security Web UI. Initially, the module is disabled by default.

For more information on how to enable the server module, see Enabling the Deny List Server Module.

After the module is installed successfully, it is displayed on the Modules menu.

Installing the Deny List Module on the Server




Note




If you use a third-party antivirus software, add exclusions to it before installing the module.

To install the Deny List Module using the Endpoint Security Web UI:



  1. Log in to the Endpoint Security Web UI as an administrator.

    2.

  2. From the Modules menu, select Endpoint Module Administration.

    3.

  3. Click the Available Modules tab and locate Deny List in the Module list.

    4.

  4. In the Actions column, click the gear icon, and click Install.

    5.

  5. Click Install on the dialog box.

To download the module installer CMS package, go to the FireEye Market, then upload the module CMS file in your Endpoint Security Web UI.




Note




Note down the navigation path to the directory where you have downloaded the .cms file.

Perform the following steps to upload the CMS file in your Endpoint Security Web UI:



  1. On the Endpoint Security Web UI, click Install Modules to upload the module .cms file from your local drive to the Endpoint Security Console. The .cms file includes a server module and an agent module of the Deny List Module.

    2.

  2. In the Upload Module dialog box, navigate to the downloaded module .cms file, select the .cms file, and click Open. The selected .cms file appears in the Upload Module dialog box.

    3.

  3. Click Upload.

2 | Module Overview

The module is disabled by default. When the module is installed successfully, it is displayed on the Modules menu.

Verifying the Installation

To verify that the Deny List module is installed and running:


  1.

    Go to Modules > Endpoint Module Administration > Installed Modules and check if the Deny List module is displayed in the list.


    2.
  2.

    Additionally, the working status of the module can also be verified on the Endpoint Server through API to review the system information received from Endpoint Agent.



3 | Module Overview

Uninstalling the Deny List Module

Uninstalling the Deny List Module removes the server module from the management server. You do not need to disable the Deny List before you uninstall it.


  1.

    On the Endpoint Security Web UI, locate for the Deny List module on the Modules page.


    2.
  2.

    Click the Actions icon, select Uninstall. and in the confirmation window, click Uninstall to start the uninstallation of the module.



A success message appears at the top of the page when the module is removed.

4 | Module Overview

Configuring the Deny List Module

The Deny List Module consists of a server module and an agent module. The agent module is installed and enabled on agents using the Deny List policy. If you disable the server module, this will automatically disable the agent module for all policies.

Enabling the Deny List Server Module



  1. Log in to the Endpoint Security Web UI.

    2.

  2. From the Modules menu, select Endpoint Module Administration.

    3.

  3. On the Modules page, click Installed Modules.

    4.

  4. Locate the Deny List module in the list.

    5.

  5. In the Actions column, click the gear icon, and select Enable.

To configure Deny List Server settings, see Configuring the Deny List Server Settings

Disabling the Deny List Server Module




Blue note icon Note




Always ensure to disable the module from the Edit Policy page before disabling it from the Modules page. The module uses Protection Platform to compute hash and monitor the file changes. If the module is disabled directly from the Modules page, "stop" command is not sent to Protection Platform thus allowing the module to remain in the Enabled state. This might cause the module to calculate file reputations for all the existing files and cause file I/O on the system. To disable the module from the Edit Policy page, move the Enable Deny List toggle to Off.

To disable the module from the Modules page, perform the following steps:



  1. Log in to the Endpoint Security Web UI as an administrator.

    2.

  2. From the Modules tab, select Endpoint Module Administration.

    3.

  3. On the Modules page, click Installed Modules.

    4.

  4. Locate the Deny List module in the list.

    5.

  5. In the Actions column, click the gear icon, and select Disable.

A message There are no policies containing Deny List.. is displayed.



Endpoint Security Deny List Module User Guide Release 1.2.0



7

4 | Module Overview

Configuring the Deny List Server Settings


  1.

    Log in to the Endpoint Security Web UI as an administrator.


    2.
  2.

    From the Modules menu, select Endpoint Module Administration to access the Modules page.


    3.
  3.

    On the Installed Modules page, locate the Deny List Module.


    4.
  4.

    In the Actions column, click the gear icon, and select Configure.


    5.
  5.

    The Deny List Settings page opens.



Configuring the Deny List Policy

The Deny List policy is configured using the Module Policy page.


  1.

    Log in to the Endpoint Security Web UI as an administrator.


    2.
  2.

    From the Admin menu, select Policies.


    3.
  3.

    Locate to the policy that you want to edit.


    4.
  4.

    In the Actions column, click the gear icon, and click Edit Policy.


    5.
  5.

    Navigate to the Deny List section and move the Enable Deny List toggle to On.


    6.
  6.

    Optionally, add file paths or process for overall exclusion.



    •

      Process Exclusion: Excludes the configured processes. Currently, wildcards are not supported.


      •
    •

      Files/Folder Exclusion: Excludes configured files and folders. Wildcards are also supported.


      •

    7.
  7.

    Configure Max File Size and file extensions for hash based scans.


    8.
  8.

    Click Save to save the module settings.





Note




Deny List will only consider file which is 0 to configured file size.

4 | Module Overview

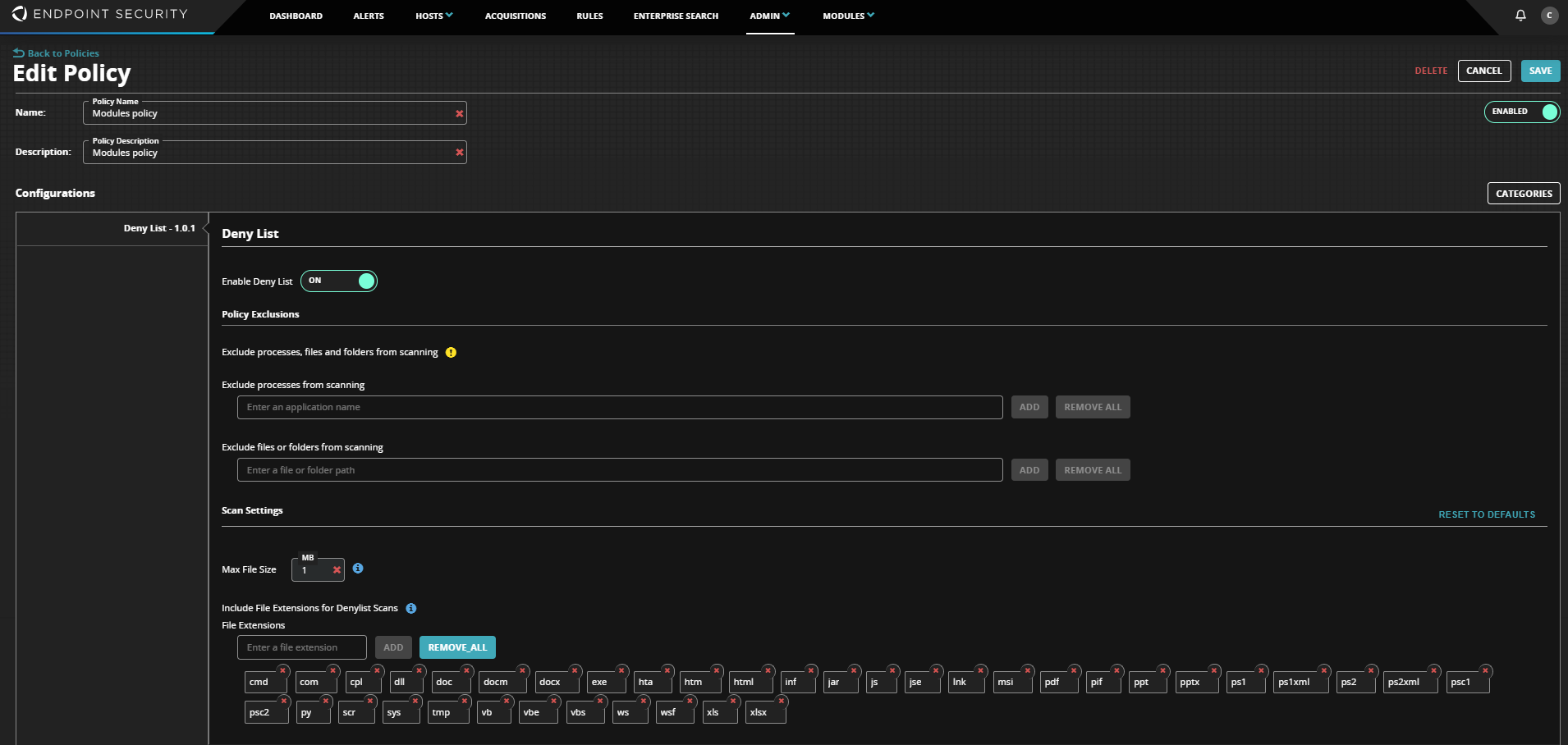

Dark Endpoint Security web UI screenshot titled Edit Policy showing the Deny List configuration panel with toggles, policy exclusion fields, scan settings, file extension chips, and add/remove controls

Endpoint Security Deny List Module User Guide Release 1.2.0

9

5 | Module Overview

Using the Deny List Module


       Note icon - small pencil/notice icon

Note




  • Using the Deny List module is restricted to FireEye Endpoint Security Administrators and Investigator roles.
    •
  • Usage of the Deny List module is independent of Malware Protection, Malware Guard or quarantine being enabled on the endpoint.
    •

The Deny List module enables FireEye Endpoint administrators and investigators to alert, block or quarantine files based on a hash or file path list. They can upload files separated by a comma. Files containing MD5 hashes, SHA-256 file hashes, or file paths are uploaded from the UI.

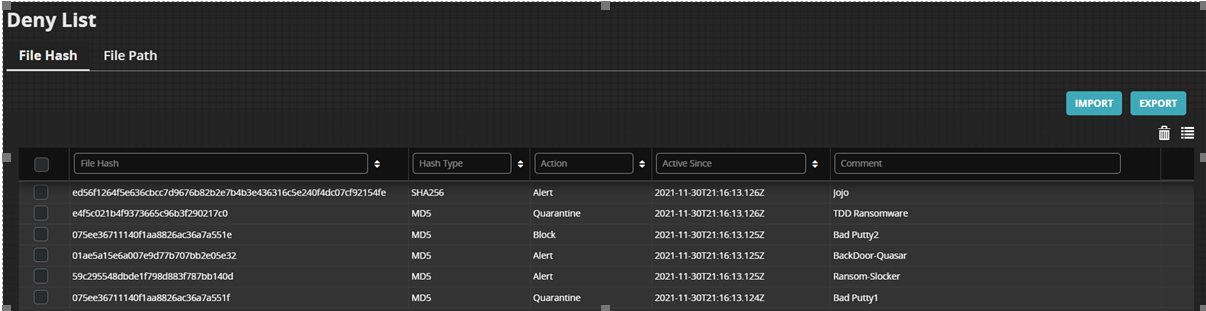

Screenshot of Deny List UI — dark themed table showing columns such as File Hash, Hash Type, Action, Active Since, Comment with sample hash rows and IMPORT / EXPORT buttons visible in the top-right of the screenshot

For more information on how to create and install the .csv file, see Creating a CSV File and Uploading a CSV file

Creating a CSV File

A CSV file is used for importing file hashes into the Deny List module. The file hashes supported are MD5 and SHA-256. There are 39 default file extensions to be scanned which can also be increased. For performance reasons, Deny List does not scan files which are more than 100MB in size for the configured file paths.

The CSV file used for importing hashes has four primary fields.

All the headers of the columns are required.


#File_hashTypeActionComments
101ae5a15e6a007e9d77b707bb2e05e32MD5AlertBackDoor-Quasar
259c295548dbde1f798d883f787bb140dMD5AlertRansom-Slocker
3ed56f1264f5e636cbcc7d9676b82b2e7b4b3e436316c5e240f4dc07cf92154feSHA256AlertJojo
4e4f5c021b4f9373665c96b3f290217c0MD5QuarantineTDD Ransomware
5075ee36711140f1aa8826ac36a7a551fMD5BlockBad Putty2

10

Endpoint Security Deny List Module User Guide Release 1.2.0

5 | Module Overview


  • file_hash value (required) - File hash of a file
    •
  • type value (required) - Type of the file hash.

    Supported file hash types: MD5 and SHA256


    •
  • action value (optional) – The action to be taken on detected file

    Alert - An alert is generated when the file is attempted to be accessed.



    Block - A block action is performed when the file is attempted to be accessed.



    Quarantine - A quarantine action is performed when the file is attempted to be accessed.


    •
  • comments value (optional) - The comment description is used in the alert name

The CSV file used for importing file paths to in the Deny List module has three primary fields.



A screenshot of a sample CSV table showing columns File_path, Type, Action, Comments with example rows such as c:\windows\putty.exe, Filepath, Quarantine, Bad Putty and c:\windows\foo.exe, Filepath, Quarantine, Bad Foo


  • file_path value (required) - File path of a file
    •
  • action value (optional) – The action on detected file

    Alert - An alert is generated when the file is attempted to be accessed.



    Block - A block action is performed when the file is attempted to be accessed.



    Quarantine - A quarantine action is performed when the file is attempted to be accessed.


    •
  • comments value (optional) - The comment description is used in the alert name



Note




If an entry for a file exists in both the hash and file path list, the action associated with the file path will always take precedence over the hash list.

Uploading a CSV file


  1. After installing and enabling the Deny List module, click the Deny List option.
    2.
  2. On the Deny List page, click Import and select the .csv file containing file hashes or file paths (case insensitive).

Endpoint Security Deny List Module User Guide Release 1.2.0

5 | Module Overview

Select whether to append or replace the hash list and then click Upload. A success or failure message appears on the page.

After successfully uploading a Deny List .csv file, it appears on the Modules page. Here, you can delete the hashes or file paths by selecting a specific hash or file path and sort the list by the different column fields.




note icon Note




The default deny list hash is set at 1000 file hashes. A maximum of 50,000 file hashes or file paths can be added. If you try to upload more than maximum file hashes or paths through the Web UI, the following error message will be displayed:



Endpoint Security Web UI top banner showing a red error notification stating the deny list limit has been reached



On the API front, the following error response is displayed:


{"error": { "errCode":"ERR_DENYLIST_RECORD_LIMIT_REACHED","message":" The list contains more than the allowed number of records, only 800 can be added" } }


Also note that multiple alerts are seen during a copy operation.

Importing File Hashes From Third-Party Feed

Instead of manually collecting and configuring intel, you can use a third-party feed to automate the import of file hash Intel to the Deny List module. The VirusTotal API is supported.

To configure a third-party API in the Endpoint Security Web UI:

Configuring API key


  1. Go to Modules > Endpoint Modules Administration > Deny List > Configure.
    2.
  2. On the Threat Intelligence tab, enter the Virus Total API key and then click Test Connection.

The green dot indicates connection is established with the third-party API. When the key is invalid, the dot is indicated in red.

5 | Module Overview

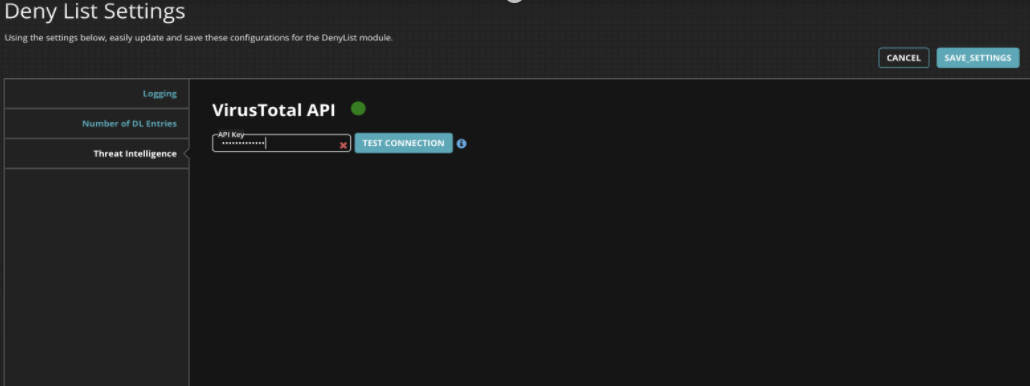

Deny List Settings screenshot showing VirusTotal API settings panel with an API Key field (masked), a TEST CONNECTION button, and CANCEL / SAVE SETTINGS buttons in the top-right

Adding Queries to Threat Intelligence

After establishing the connection with Virus Total API, you add VirusTotal queries. The polling interval for the Threat Intelligence is set as 1, 2, 4 or 8 hours.


  1. On the Threat Intelligence tab, set the Polling Interval as 1,2,4, or 8 hours.
    2.
  2. Click the ADD QUERY button and then provide the values for the following fields.

  • Feed Source: Set to Virus Total
    •
  • Action : Alert, Block or Quarantine
    •
  • Max no of Results: 0 to 300 results for each query
    •
  • Hash Type: Md5 or Sha256
    •
  • Query: Virus Total API
    •
  • Comment: Enter to identify the received third-party Intel from the file hash intel.


Endpoint Security Deny List Module User Guide Release 1.2.0



13

5 | Module Overview

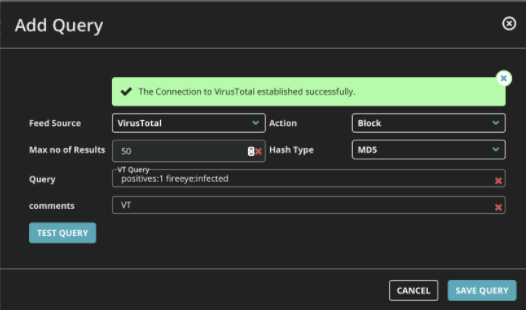

Screenshot of an Add Query dialog showing a dark UI with a green success banner at top. Visible fields include Feed Source (VirusTotal), Action (Block), Max no of Results, Hash Type (MD5), Query and comments, plus buttons labeled TEST QUERY, CANCEL, and SAVE QUERY.


  1.

    Click Test Query. The Save Query button is enabled when all the parameters are correct.


    2.
  2.

    Click Save Query to save the query. This button is now visible in the Threat Intelligence tab.


    3.
  3.

    Verify that the received intel is available in the File Hash tab.

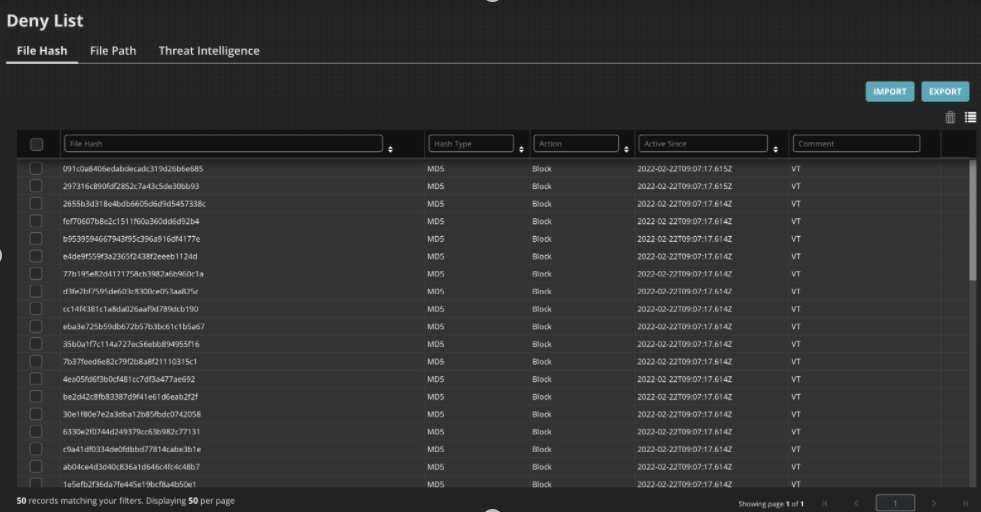

Screenshot of the Deny List table showing a dark grid with columns such as File Hash, File Path, Threat Intelligence, Hash Type (MD5), Action (Block), Active Since, and Comment. Multiple rows of file hashes are visible along with pagination and import/export buttons at the top-right of the table.



14



Endpoint Security Deny List Module User Guide Release 1.2.0

6 | Module Overview

Configuration API

The configuration API is made available via the configuration endpoint of the Endpoint Security Server REST API. For complete details on how to interact with Endpoint Security Server API, please refer to FireEye document Endpoint Security REST API Guide Release 5.0.

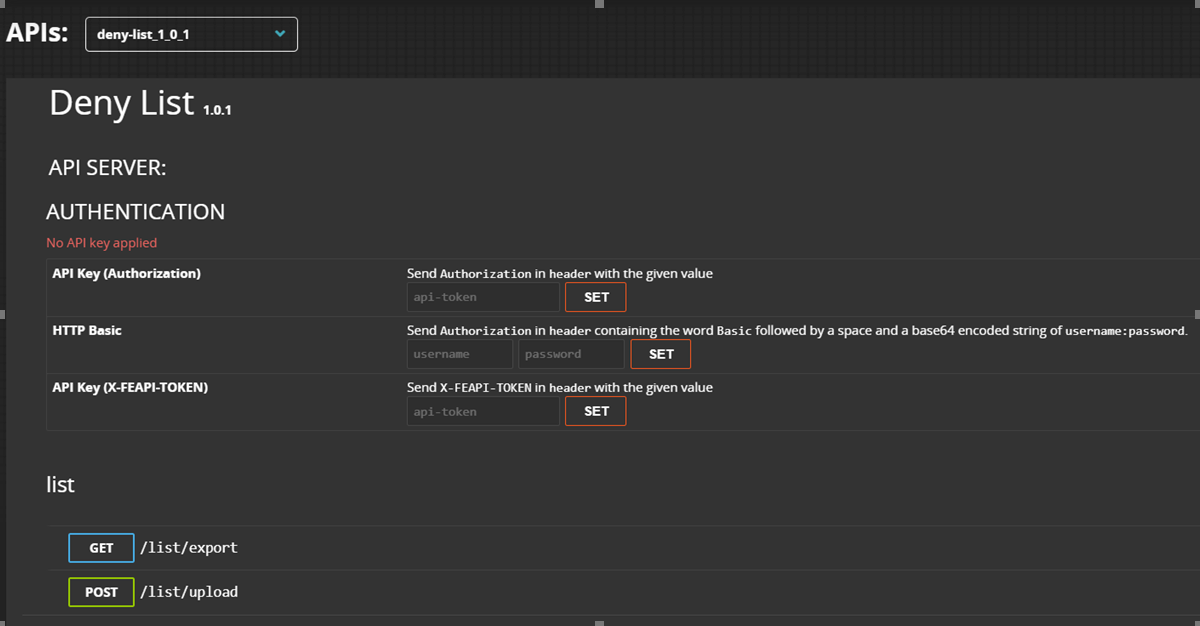

Dark-themed API documentation UI screenshot titled Deny List showing API server and authentication sections with fields for API Key (Authorization), HTTP Basic, API Key (X-FEAPI-TOKEN), and endpoints including GET /list/export and POST /list/upload

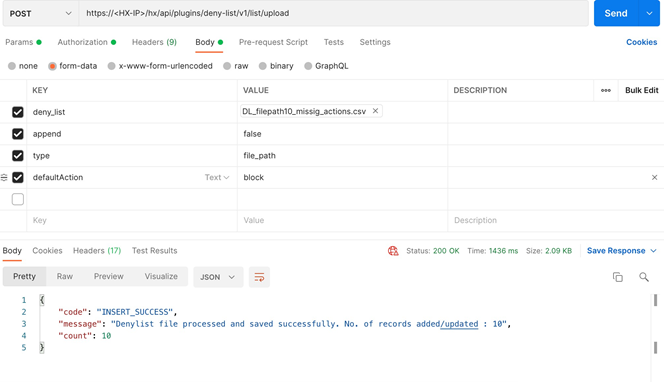

UPLOAD API For Deny List

A FireEye Endpoint Security administrator can upload a list of hashes or list of filepaths to the Endpoint Server using the following API method.

Request


HTTP VerbPathParameters
POSThx/api/plugins/deny-list/v1/list/upload-

Response



Endpoint Security Deny List Module User Guide Release 1.2.015

6 | Module Overview



Type

Key

Notes



BODY (form data)



deny_list(mandatory)



value: file (denylist.csv: file to upload)



Text parameters in form data:



  • append: true/false (to append into an existing list or overwrite)
    •
  • type: file_hash/file_path
    •
  • defaultAction: Optional, Alert is chosen as the default action if not specified explicitly.
    •
  • default Comment: Optional, it is kept blank if not specified
    •




Blue note icon



Note




Use lower case values as they are case-sensitive.

POST https://<HX-IP>/hx/api/plugins/deny-list/v1/list/upload

Postman screenshot showing form-data upload UI and response preview

EXPORT API for Deny List

16

Endpoint Security Deny List Module User Guide Release 1.2.0

6 | Module Overview




HTTP Verb



Path



Parameters




GET



hx/api/plugins/deny-list/v1/list/export



Type: Query params



  • action: alert/quarantine/block
    •
  • type: md5/sha256
    •
  • list_type: file_hash/file_path
    •




Note




Use lowercase values as they are case-sensitive.

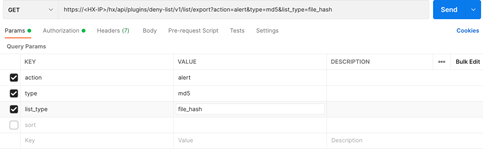

Postman request screenshot showing a GET request to hx/api/plugins/deny-list/v1/list/export with the query parameters table (action, type, list_type) visible

Adding VirusTotal Queries




HTTP Verb



Path



Parameters




POST



hx/api/plugins/deny-list/v1/list/thirdparty/configuration



-



Endpoint Security Deny List Module User Guide Release 1.2.0

17

6 | Module Overview



[IMAGE PLACEHOLDER: Postman screenshot showing a POST request to https://<HX-IP>/hx/api/plugins/deny-list/v1/list/thirdparty/configuration. The JSON request body visible contains "configuration": { "vt": { "poll_interval": 120, "queries": [ { "query": "positives:1 fireeye:infected", "enable": true, "limit": 50, "action": "alert", "comment": "VT", "hash_type": "md5" } ] } } }. The response pane shows a JSON response: { "code": "QUERY_INSERT_SUCCESS", "message": "Configuration settings saved successfully" }.]

18

Endpoint Security Deny List Module User Guide Release 1.2.0

Copyright © 2026 Musarubra US LLC.

Trellix and FireEye are the trademarks or registered trademarks of Musarubra US LLC, FireEye Security Holdings US LLC, and their affiliates in the US and /or other countries. Other names and brands are the property of these companies or may be claimed as the property of others.



Trellix logo — black Trellix wordmark with a small multicolor (blue/green/purple) angled accent, located at the bottom-right of the page

Related articles
